RM 4618 (41BY469S983) - Remington Chainsaw General Assembly Parts Diagram

Chainsaw

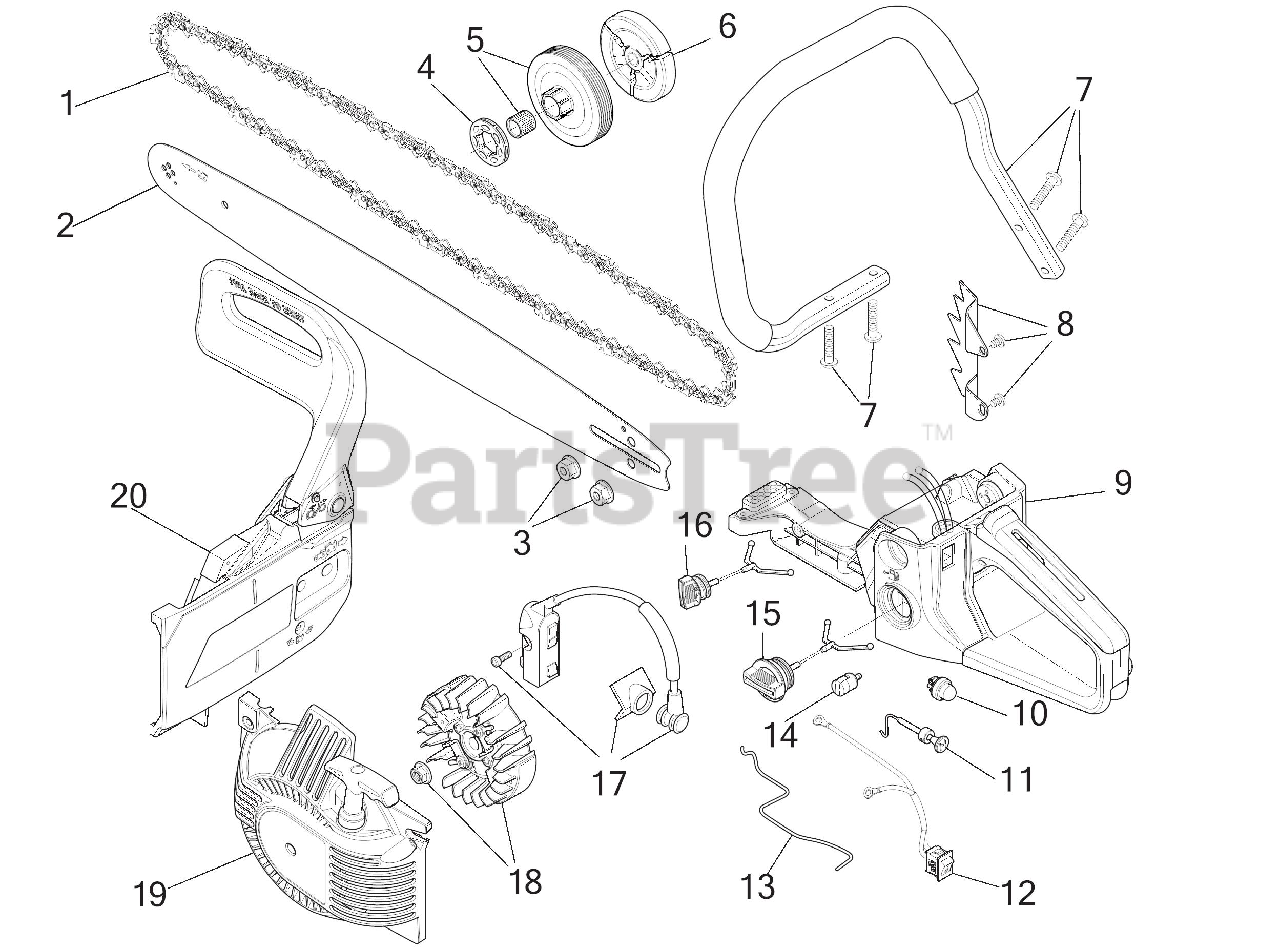

General Assembly Parts Diagram

  • Title

1

MTD 753-06265

CHAIN 18" 55C
(Superseded to 713-05043)

$36.99

$

In Stock, only 2 left!

0

2

MTD 753-06264

BAR 18" 55CC
(Superseded to 795-00288)

$35.99

$

In Stock, only 3 left!

0

3

MTD 953-08105

NUT:BAR:M8

Note: (2)

$3.49

$

In Stock, Qty 20+

0

4

MTD 953-08219

SPROCKET

$7.49

$

In Stock, Qty 20+

0

5

MTD 953-08220

CLUTCH DRUM ASSEMBLY

$20.99

$

In Stock, Qty 20+

0

6

MTD 953-08145

CLUTCH ASSEMBLY

$15.99

$

In Stock, Qty 20+

0

7

MTD 953-08130

HANDLE ASSEMBLY:CHAINSA

Note: (with Screws (4))

$18.99

$

In Stock, only 1 left!

0

8

MTD 953-08128

SPIKE PLATE W/HDW

Note: (with Screws (2))

$5.49

$

In Stock, Qty 11

0

9

MTD 953-08142

FUEL HOUSING ASSEMBLY

$40.99

$

In Stock, only 3 left!

0

10

MTD 953-08127

BULB:PRIMER

$5.99

$

In Stock, Qty 7

0

11

MTD 953-08221

CHOKE LEVER ASSEMBLY

$3.49

$

Usually ships in 3-6 days

0

12

MTD 953-08223

SWITCH ASSEMBLY

$3.49

$

In Stock, Qty 20+

0

13

MTD 953-08132

THROTTLE ROD

$3.49

$

Usually ships in 3-6 days

0

14

MTD 953-08123

FILTER:FUEL

$11.99

$

In Stock, Qty 8

0

15

MTD 753-08133

FUEL CAP ASSEMBLY

$5.49

$

In Stock, Qty 8

0

16

MTD 953-08222

OIL CAP ASSEMBLY

$5.49

$

In Stock, Qty 13

0

17

MTD 953-08138

MODULE:CHAINSAW

Note: (witch Screws (2))

$26.99

$

In Stock, Qty 11

0

18

MTD 953-08131

FLYWHEEL: CHAINSAW

$20.99

$

In Stock, only 1 left!

0

19

MTD 753-08310

STARTER HOUSING ASSEMBLY

$25.99

$

In Stock, Qty 20+

0

20

MTD 753-08143

BRAKE ASSEMBLY:CHAINSAW

$28.99

$

In Stock, Qty 11

0
