RM 4625 (21AK125G983) - Remington Tiller (2012) General Assembly Parts Diagram

Tiller

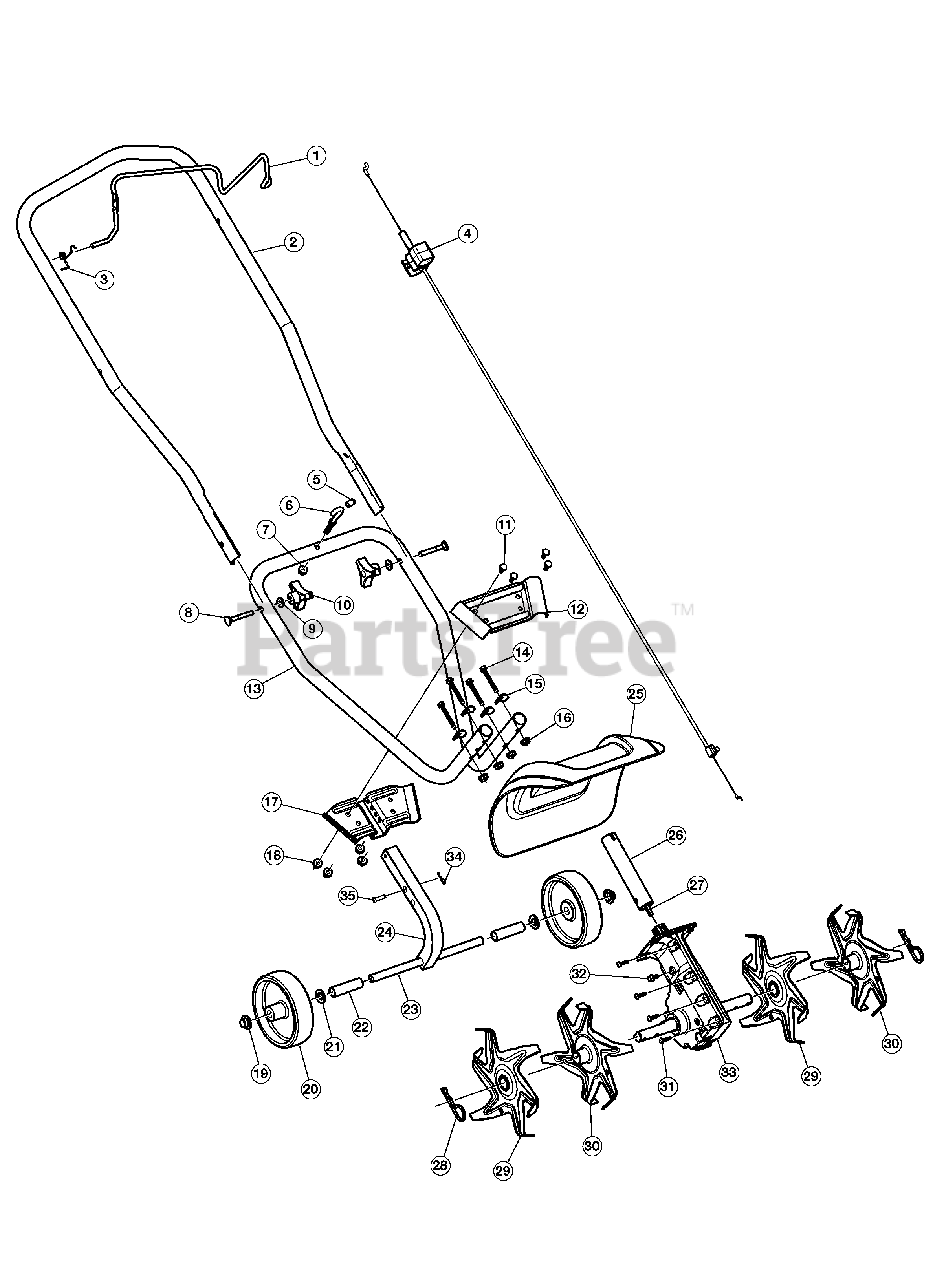

General Assembly Parts Diagram

  • Title

1

MTD 753-06808

Throttle

$7.49

$

In Stock, only 1 left!

0

2

MTD 753-06319

Handle

$21.99

$

Usually ships in 3-6 days

0

3

MTD 753-05940

Spring

$3.49

$

In Stock, Qty 12

0

4

MTD 753-06831

Throttle Cable

$10.99

$

In Stock, only 4 left!

0

5

MTD 735-04246

Cap

$2.99

$

Usually ships in 3-6 days

0

6

MTD 753-04190

Eyelet Bolt

$

$

Not available

7

MTD 712-04064

Nut

$3.99

$

In Stock, Qty 20+

0

8

MTD 791-182899

Bolt

$7.49

$

Usually ships in 3-6 days

0

9

MTD 936-0451

Washer
(Superseded to 736-0451)

$3.99

$

In Stock, Qty 20+

0

10

MTD 791-182677

Knob

$13.99

$

Usually ships in 3-6 days

0

11

MTD 710-3013

Screw

$4.49

$

In Stock, only 2 left!

0

12

MTD 753-06813

Bracket, Upper

$4.49

$

Usually ships in 3-6 days

0

13

MTD 753-06809

Handle

$23.99

$

Usually ships in 3-6 days

0

14

MTD 753-04202

Bolt
(Superseded to 710-1026)

$6.49

$

In Stock, Qty 20+

0

15

MTD 936-0451

Washer
(Superseded to 736-0451)

$3.99

$

In Stock, Qty 20+

0

16

MTD 912-3027

Nut

$3.99

$

In Stock, Qty 20+

0

17

MTD 753-06814

Bracket, Lower

$4.49

$

Usually ships in 3-6 days

0

18

MTD 912-3027

Nut

$3.99

$

In Stock, Qty 20+

0

19

MTD 726-0299

Cap

$7.49

$

In Stock, Qty 20+

0

20

MTD 753-04437

Wheel (Incl. 19)

$20.99

$

Usually ships in 3-6 days

0

21

MTD 791-182910

Washer

$6.99

$

Usually ships in 3-6 days

0

22

MTD 753-06815

Spacer

$3.49

$

Usually ships in 3-6 days

0

23

MTD 753-06816

Axle

$5.49

$

Usually ships in 3-6 days

0

24

MTD 753-06817

Tube, Square

$10.99

$

Usually ships in 3-6 days

0

25

MTD 753-06810

Shield

$16.99

$

Usually ships in 3-6 days

0

26

MTD 753-06812

Tube (Incl. 27)

$9.99

$

Usually ships in 3-6 days

0

27

MTD 753-04499

Flex Shaft

$27.99

$

In Stock, Qty 6

0

28

MTD 753-06811

Clip

$2.99

$

Usually ships in 3-6 days

0

29

MTD 753-05983

Tine (Left Inner, Right Outer)

$32.99

$

Usually ships in 3-6 days

0

30

MTD 753-05984

Tine (Left Outer, Right Inner)

$32.99

$

Usually ships in 3-6 days

0

31

MTD 791-182195

Screw

$6.99

$

In Stock, Qty 15

0

32

MTD 710-0599

Screw

$3.99

$

In Stock, Qty 20+

0

33

MTD 753-06063

Gearbox (Incl. 31)

$124.99

$

In Stock, Qty 9

0

34

MTD 914-0104

Cotter Pin
(Superseded to 714-0104)

$3.99

$

In Stock, Qty 20+

0

35

MTD 714-04106

Clevis Pin

$3.49

$

Usually ships in 3-6 days

0
