RM 4625 (21BK125G983) - Remington Tiller (2015) General Assembly Parts Diagram

Tiller

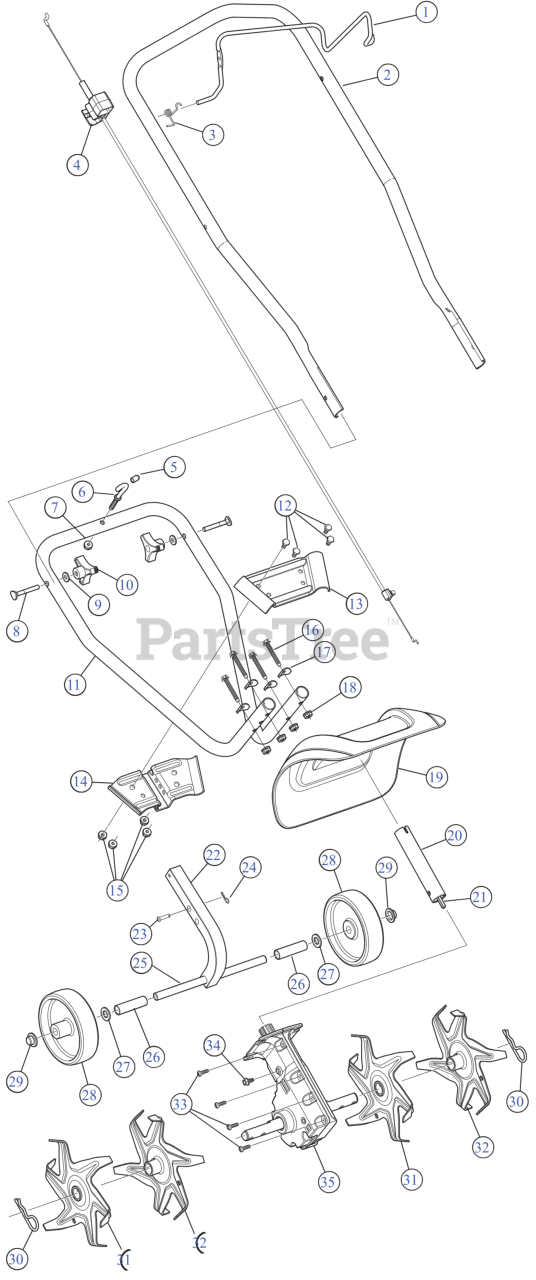

General Assembly Parts Diagram

  • Title

1

MTD 753-06808

BAIL CONTROL

$7.49

$

In Stock, only 1 left!

0

2

MTD 753-06319

HANDLE UPR

$21.99

$

Usually ships in 3-6 days

0

3

MTD 753-05940

TORSION SPRING

$3.49

$

In Stock, Qty 12

0

4

MTD 753-06831

THROTTLE CABLE

$10.99

$

In Stock, only 3 left!

0

5

MTD 735-04246

CAP

$2.99

$

Usually ships in 3-6 days

0

6

MTD 10591

ROPE GUIDE

$6.99

$

Usually ships in 3-6 days

0

7

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

8

MTD 791-182899

BOLT, CARRIAGE CRV

$7.49

$

Usually ships in 3-6 days

0

9

MTD 936-0451

SADDLE WASHER
(Superseded to 736-0451)

$3.99

$

In Stock, Qty 20+

0

10

MTD 791-182677

KNOB, 3-PRONG ¼ "-

$13.99

$

Usually ships in 3-6 days

0

11

MTD 753-06809

HANDLE LOWER

$23.99

$

Usually ships in 3-6 days

0

12

MTD 710-3013

SCREW 1/4-20X.5 GR5

$4.49

$

In Stock, only 1 left!

0

13

MTD 753-06813

BRACKET UPR

$4.49

$

Usually ships in 3-6 days

0

14

MTD 753-06814

BRACKET LOWER

$4.49

$

Usually ships in 3-6 days

0

15

MTD 912-3027

LOCK NUT 1/4

$3.99

$

In Stock, Qty 20+

0

16

MTD 710-1026

SCREW 1/4-20 x 1.750

$6.49

$

In Stock, Qty 20+

0

17

MTD 936-0451

SADDLE WASHER
(Superseded to 736-0451)

$3.99

$

In Stock, Qty 20+

0

18

MTD 912-3027

LOCK NUT 1/4

$3.99

$

In Stock, Qty 20+

0

19

MTD 753-06810

TINE SHIELD

$16.99

$

Usually ships in 3-6 days

0

20

MTD 753-06812

BOOM ASSEMBLY

Note: (Incl. 21)

$9.99

$

Usually ships in 3-6 days

0

21

MTD 753-04499

SHAFT-FLEX

$27.99

$

In Stock, Qty 6

0

22

MTD 753-06817

TUBE SQUARE

$10.99

$

Usually ships in 3-6 days

0

23

MTD 714-04106

CLEVIS PIN

$3.49

$

Usually ships in 3-6 days

0

24

MTD 914-0104

COTTER PIN .072 DIA. 1.13 LG
(Superseded to 714-0104)

$3.99

$

In Stock, Qty 20+

0

25

MTD 753-06816

AXLE

$5.49

$

Usually ships in 3-6 days

0

26

MTD 753-06815

SPACER

$3.49

$

Usually ships in 3-6 days

0

27

MTD 791-182910

WASHER

$6.99

$

Usually ships in 3-6 days

0

28

MTD 753-04437

WHEEL:5.0 x 1.38

Note: (Incl. 29)

$20.99

$

Usually ships in 3-6 days

0

29

MTD 726-0299

PUSH CAP

$7.49

$

In Stock, Qty 20+

0

30

MTD 753-06811

CLIP

$2.99

$

Usually ships in 3-6 days

0

31

MTD 753-05983

TINE ASSEMBLY (LH)I (RH)O

Note: (Left Inner, Right Outer)

$32.99

$

Usually ships in 3-6 days

0

32

MTD 753-05984

TINE ASSEMBLY (LH)O (RH)I

Note: (Left Outer, Right Inner)

$32.99

$

Usually ships in 3-6 days

0

33

MTD 791-182195

SCREW #

$6.99

$

In Stock, Qty 14

0

34

MTD 710-0599

SCREW 1/4-20 X.500

$3.99

$

In Stock, Qty 20+

0

35

MTD 753-06063

GEARBOX ASSEMBLY CULT

Note: (Incl. 33)

$124.99

$

In Stock, Qty 8

0
