RMX 001 - Ryobi Concrete Mixer, 5 cu ft, Rev 02 (2018-09) FIGURE A Parts Diagram

Concrete Mixer, 5 cu ft, Rev 02

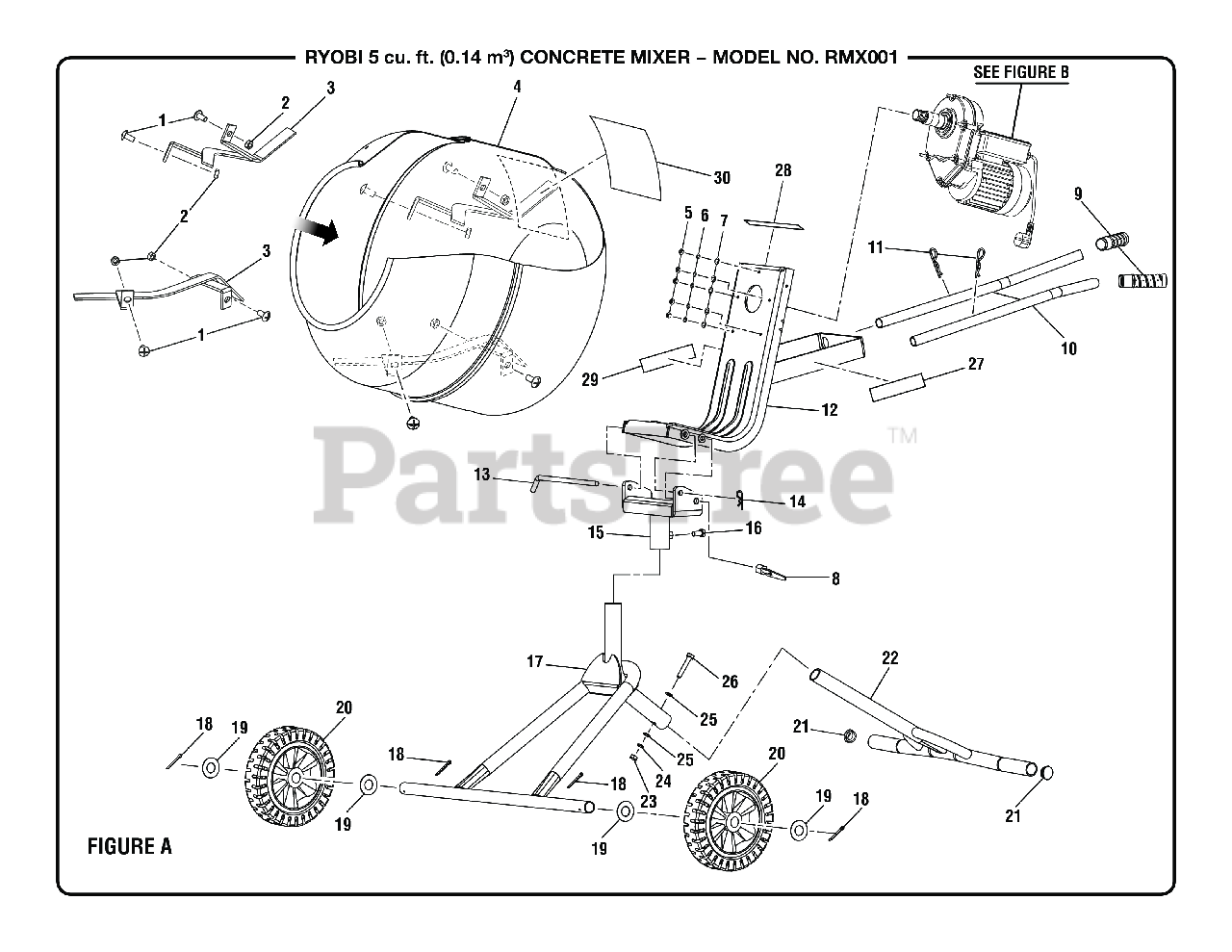

FIGURE A Parts Diagram

  • Title

1

Homelite 089046001001

Screw (M12 x 25 mm, Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 089046001002

Hex Nut (M12)

$0.99

$

Usually ships in 3-7 days

0

3

Homelite 089046001003

Mixing Tine

$14.99

$

Usually ships in 3-7 days

0

4

Homelite 089046001007

Drum (Inc. Key No. 35)

$

$

Not available

5

Homelite 089046001017

Hex Nut (M6)

$0.99

$

Usually ships in 3-7 days

0

6

Homelite 089046001016

Lock Washer (M6)

$0.99

$

Usually ships in 3-7 days

0

7

Homelite 089046001015

Washer (M6)

$0.99

$

Usually ships in 3-7 days

0

8

Homelite 089046001018

Lock Handle Assembly

$8.49

$

Usually ships in 3-7 days

0

9

Homelite 089046001030

Handle Grip

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 089046001029

Handle

$6.99

$

Usually ships in 3-7 days

0

11

Homelite 089046001019

Hitch Pin (3.5)

$0.99

$

Usually ships in 3-7 days

0

12

Homelite 089046001014

Drum and Motor Bracket (Inc. Key Nos. 32-34)

$66.99

$

Usually ships in 3-7 days

0

13

Homelite 089046001013

Pivot Pin (12 × 240)

$6.99

$

Usually ships in 3-7 days

0

14

Homelite 089046001028

Hitch Pin (3)

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 089046001012

Swivel Bracket

$30.99

$

Usually ships in 3-7 days

0

16

Homelite 089046001026

Bolt (M10 x 25 mm)

$0.99

$

Usually ships in 3-7 days

0

17

Homelite 089046001011

Front Leg

$42.99

$

Usually ships in 3-7 days

0

18

Homelite 089046001008

Cotter Pin (6 × 50)

$0.99

$

Usually ships in 3-7 days

0

19

Homelite 089046001009

Washer

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 089046001010

Wheel

$30.99

$

Usually ships in 3-7 days

0

21

Homelite 089046001031

End Cap

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 089046001027

Rear Leg

$29.99

$

In Stock, only 1 left!

0

23

Homelite 089046001006

Hex Nut (M10)

$0.99

$

Usually ships in 3-7 days

0

24

Homelite 089046001005

Lock Washer (M10)

$0.99

$

Usually ships in 3-7 days

0

25

Homelite 089046001004

Cup Washer (M10)

$0.99

$

Usually ships in 3-7 days

0

26

Homelite 089046001020

Bolt (M10 x 60 mm, Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

27

Homelite 089046001907

Instruction Label

$0.99

$

Usually ships in 3-7 days

0

28

Homelite 089046001901

Icon Warning label

$0.99

$

Usually ships in 3-7 days

0

29

Homelite 089046001902

Data Label

$0.99

$

Usually ships in 3-7 days

0

30

Homelite 089046001905

Logo Label

$3.49

$

Usually ships in 3-7 days

0

Homelite 995000436

Operator's Manual

Note: (089046001906) Not Shown

$

$

Not available
