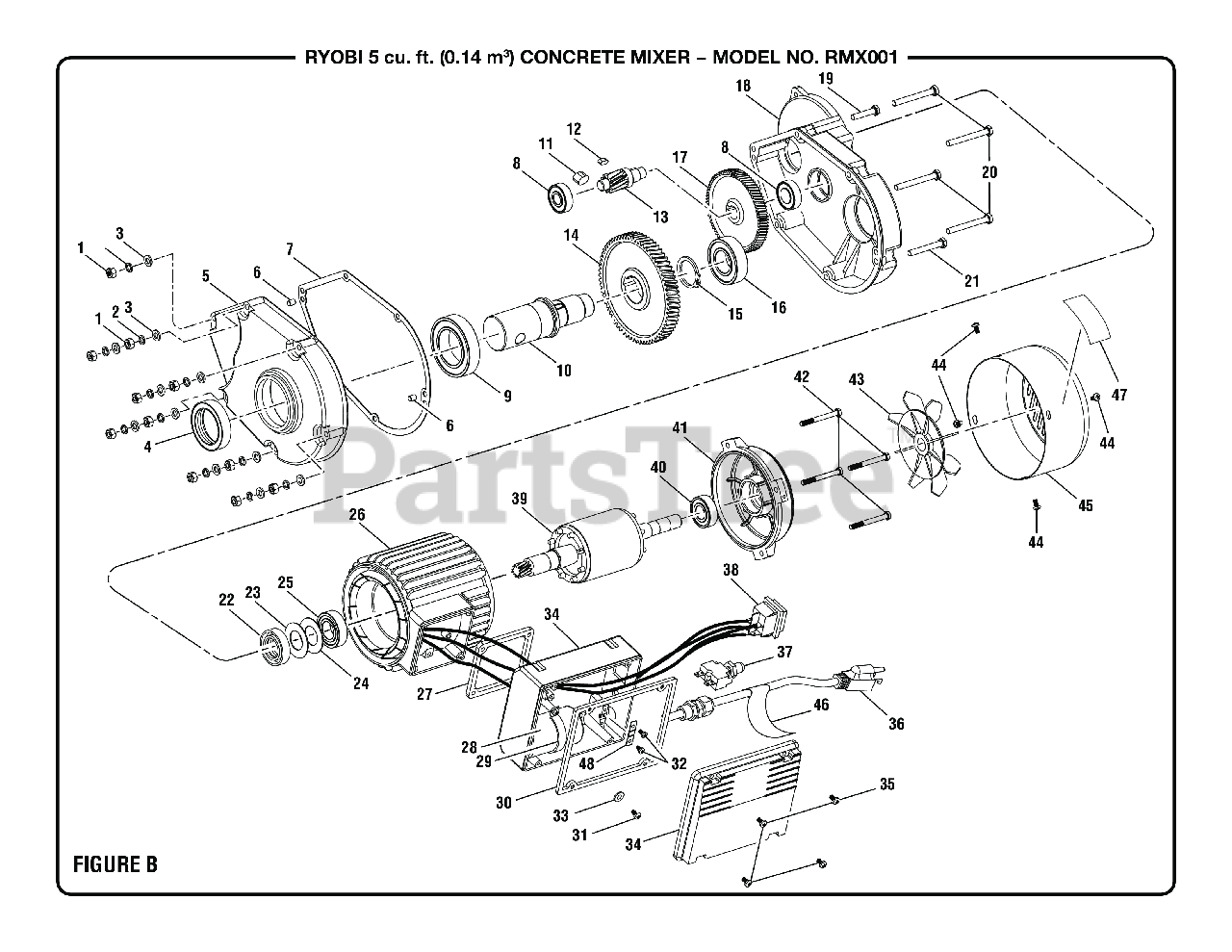

RMX 001 - Ryobi Concrete Mixer, 5 cu ft, Rev 02 (2018-09) FIGURE B Parts Diagram

Concrete Mixer, 5 cu ft, Rev 02

FIGURE B Parts Diagram

  • Title

1

Homelite 089046001065

Hex Nut (M6)

$0.99

$

Usually ships in 3-7 days

0

2

Homelite 089046001066

Lock Washer (M6)

$0.99

$

Usually ships in 3-7 days

0

3

Homelite 089046001077

Washer (M6)

$0.99

$

Usually ships in 3-7 days

0

4

Homelite 089046001033

Seal (40 mm)

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 089046001035

Gear Case (Front Cover)

$19.99

$

Usually ships in 3-7 days

0

6

Homelite 089046001071

Locking Pin (M6 x 10 mm)

$0.99

$

Usually ships in 3-7 days

0

7

Homelite 089046001036

Gearbox Gasket

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 089046001039

Gearbox Ball Bearing (6201z)

$6.99

$

Usually ships in 3-7 days

0

9

Homelite 089046001070

Ball Bearing (6008)

$8.49

$

Usually ships in 3-7 days

0

10

Homelite 089046001075

Drive Shaft

$21.99

$

Usually ships in 3-7 days

0

11

Homelite 089046001038

Large Locking Key (8 x 15 mm)

$0.99

$

Usually ships in 3-7 days

0

12

Homelite 089046001041

Small Locking Key (5 x 5 x 12 mm)

$0.99

$

Usually ships in 3-7 days

0

13

Homelite 089046001042

Pinion (Z9)

$5.49

$

Usually ships in 3-7 days

0

14

Homelite 089046001069

Gear (Z68)

$30.99

$

Usually ships in 3-7 days

0

15

Homelite 089046001068

Retaining Ring B (30 mm)

$0.99

$

Usually ships in 3-7 days

0

16

Homelite 089046001067

Ball Bearing (6205)

$7.99

$

Usually ships in 3-7 days

0

17

Homelite 089046001040

Gear (Z79)

$19.99

$

Usually ships in 3-7 days

0

18

Homelite 089046001043

Gear Case (Back Cover)

$33.99

$

Usually ships in 3-7 days

0

19

Homelite 089046001032

Screw (M6 x 25 mm, Pan Hd.)

$0.99

$

Usually ships in 3-7 days

0

20

Homelite 089046001034

Screw (M6 x 65 mm)

$0.99

$

Usually ships in 3-7 days

0

21

Homelite 089046001072

Bolt (M6 x 42 mm)

$0.99

$

Usually ships in 3-7 days

0

22

Homelite 089046001044

Motor Seal (42 x 20 x 7 mm)

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 089046001045

Spacer Washer A (42 mm)

$0.99

$

Usually ships in 3-7 days

0

24

Homelite 089046001076

Stop Ring (30 MM)

$0.99

$

Usually ships in 3-7 days

0

25

Homelite 089046001046

Motor Bearing (6004z)

$4.49

$

Usually ships in 3-7 days

0

26

Homelite 089046001047

Stator

$138.99

$

Usually ships in 3-7 days

0

27

Homelite 089046001064

Motor Gasket

$2.49

$

Usually ships in 3-7 days

0

28

Homelite 089046001061

Condenser (30UF)

$14.99

$

Usually ships in 3-7 days

0

29

Homelite 089046001059

Clamp

$1.49

$

Usually ships in 3-7 days

0

30

Homelite 089046001058

Gasket (Panel Box)

$1.49

$

Usually ships in 3-7 days

0

31

Homelite 089046001074

Ground Screw (M4 x 10 mm)

$0.99

$

Usually ships in 3-7 days

0

32

Homelite 089046001060

Screw (M4 x 10 mm)

$0.99

$

Usually ships in 3-7 days

0

33

Homelite 089046001073

Washer (4 mm)

$0.99

$

Usually ships in 3-7 days

0

34

Homelite 089046001063

Panel Box Assembly

$21.99

$

Usually ships in 3-7 days

0

35

Homelite 089046001057

Screw (M4 x 22 mm)

$0.99

$

Usually ships in 3-7 days

0

36

Homelite 089046001056

Power Cord (Inc. Key No. 46)

$22.99

$

Usually ships in 3-7 days

0

37

Homelite 089046001062

Overload Protector

$4.99

$

Usually ships in 3-7 days

0

38

Homelite 089046001055

On/Off Switch

$2.99

$

Usually ships in 3-7 days

0

39

Homelite 089046001048

Rotor

$19.99

$

Usually ships in 3-7 days

0

40

Homelite 089046001049

Ball Bearing (6202z)

$7.49

$

Usually ships in 3-7 days

0

41

Homelite 089046001050

Bell Housing

$8.49

$

Usually ships in 3-7 days

0

42

Homelite 089046001054

Bolt (M5 x 138 mm)

$1.49

$

Usually ships in 3-7 days

0

43

Homelite 089046001051

Fan

$3.99

$

Usually ships in 3-7 days

0

44

Homelite 089046001052

Screw (M4 x 10 mm)

$0.99

$

Usually ships in 3-7 days

0

45

Homelite 089046001053

Fan Cover (Inc. Key No. 47)

$5.49

$

Usually ships in 3-7 days

0

46

Homelite 089046001904

Cord Wrap Label

$0.99

$

Usually ships in 3-7 days

0

47

Homelite 089046001903

Motor Specifications Label

$0.99

$

Usually ships in 3-7 days

0

48

Homelite 089046001078

Strain Relief Pressure Plate

$1.99

$

Usually ships in 3-7 days

0
