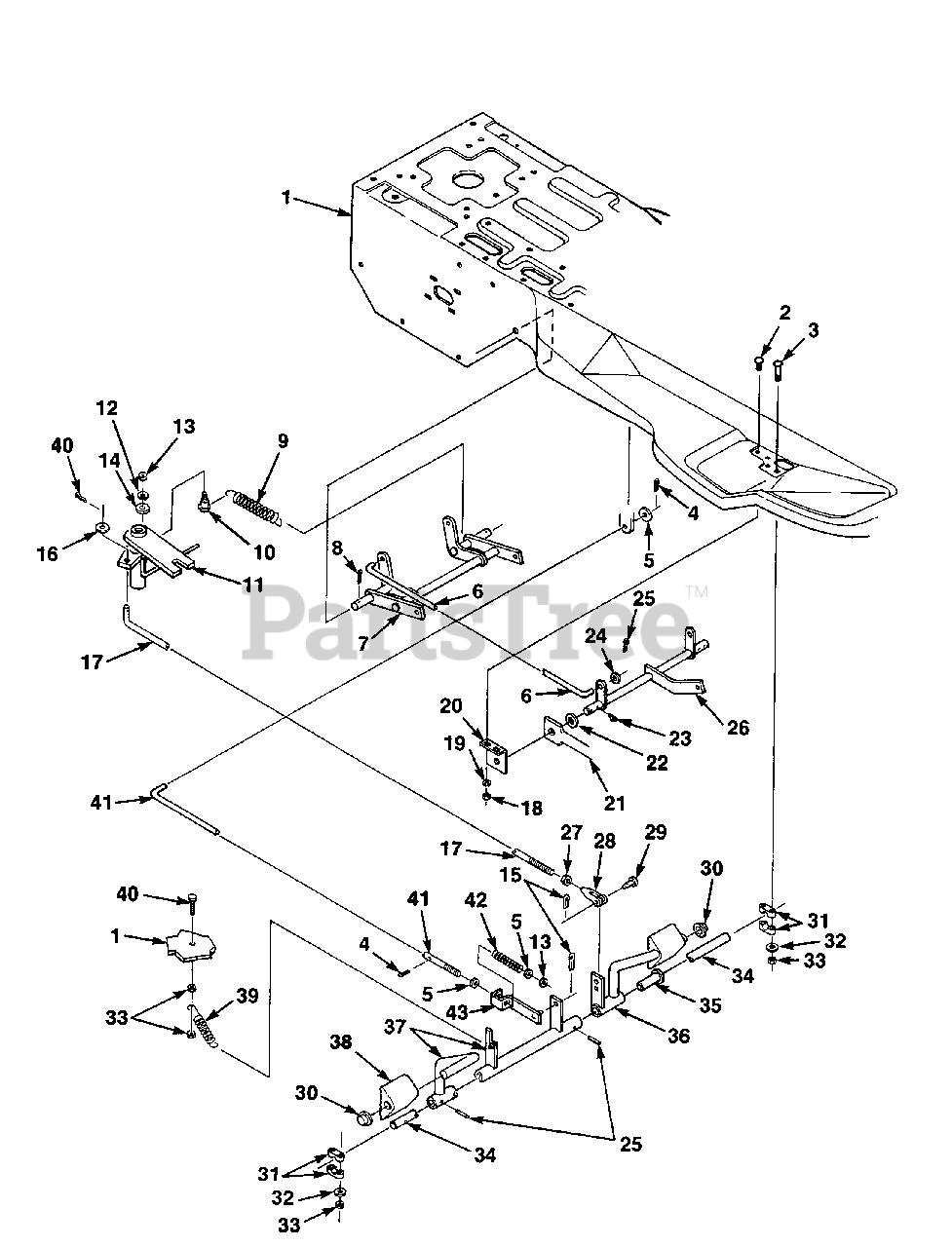

RMX 11 E (UT-32015) - Homelite Rear-Engine Riding Mower Clutch And Brake Parts Diagram

Rear-Engine Riding Mower

Clutch And Brake Parts Diagram

  • Title

1

Homelite JA991168

FRAME

$

$

Currently unavailable

2

Homelite JA441664

BOLT-Carr. 1/4-20 x 5/8

$

$

Currently unavailable

3

Homelite JA440050

BOLT-1/4-20 x 1 1/2

$

$

Currently unavailable

4

Homelite JA460016

PIN-Cotter

$

$

Currently unavailable

5

Homelite JA453009

WASHER
(Superseded to UP07173)

$

$

Not available

6

Homelite JA991158

ROD-Deck lift

$

$

Currently unavailable

7

Homelite JA991163

BRACKET-Rear hanger

$

$

Currently unavailable

8

Homelite JA460306

PIN-Cotter

$

$

Not available

9

Homelite JA376088

SPRING-Extension

$

$

Not available

10

Homelite JA354480

BOLT-5/16-18 shoulder

$

$

Currently unavailable

11

Homelite JA991148

ARM-Pivot

$

$

Currently unavailable

12

Homelite JA446134

WASHER-Lock 5/16
(Superseded to 653671)

$2.99

$

Usually ships in 3-7 days

0

13

Homelite JA444718

NUT-Hex 5/16-18

$

$

Not available

14

Homelite JA452006

WASHER-Flat 5/16

$

$

Currently unavailable

15

Homelite JA460008

PIN-Cotter

$

$

Currently unavailable

16

Homelite JA452004

WASHER-1/4
(Superseded to 84026)

$

$

Not available

17

Homelite JA991149

ROD-Clutch

$

$

Currently unavailable

18

Homelite JA443102

NUT-1/4-20
(Superseded to JA993730)

$

$

Not available

19

Homelite JA446130

WASHER-Lock 1/4

$

$

Not available

20

Homelite JA375815

BRACKET

$

$

Currently unavailable

21

Homelite JA990507

SUPPORT-Front axle

$

$

Currently unavailable

22

Homelite JA453017

WASHER-Flat

$

$

Not available

23

Homelite JA460212

PIN-Cotter

$

$

Currently unavailable

24

Homelite JA452008

WASHER-Plain

$1.99

$

Usually ships in 3-7 days

0

25

Homelite JA460212

PIN-Cotter

$

$

Currently unavailable

26

Homelite JA991164

HANGER-Front
(Superseded to JA993948)

$

$

Currently unavailable

27

Homelite JA443108

NUT-Hex

$

$

Currently unavailable

28

Homelite JA376063

YOKE-Clutch rod

$

$

Currently unavailable

29

Homelite JA461451

PIN-Clevis

$

$

Currently unavailable

30

Homelite JA375811

NUT-Push

$

$

Currently unavailable

31

Homelite JA339461

BEARING

$

$

Currently unavailable

32

Homelite JA452004

WASHER-Flat 1/4 reg.
(Superseded to 84026)

$

$

Not available

33

Homelite JA444708

NUT-Centerlock hex- 1/4-20

$

$

Currently unavailable

34

Homelite JA991157

PEDAL SHAFT

$

$

Currently unavailable

35

Homelite JA990550

BUSHING

$

$

Currently unavailable

36

Homelite JA991159

PEDAL-Clutch

$

$

Currently unavailable

37

Homelite JA991156

PEDAL-Brake

$

$

Currently unavailable

38

Homelite JA345020

PEDAL-Rubber

$

$

Currently unavailable

39

Homelite JA990985

SPRING

$

$

Currently unavailable

40

Homelite JA400106

SCREW-1/4-20 x.625

$

$

Currently unavailable

41

Homelite JA991155

ROD-Brake

$

$

Currently unavailable

42

Homelite JA376102

SPRING-Brake

$

$

Not available

43

Homelite JA181969

BRACKET-Brake spring

$

$

Currently unavailable
