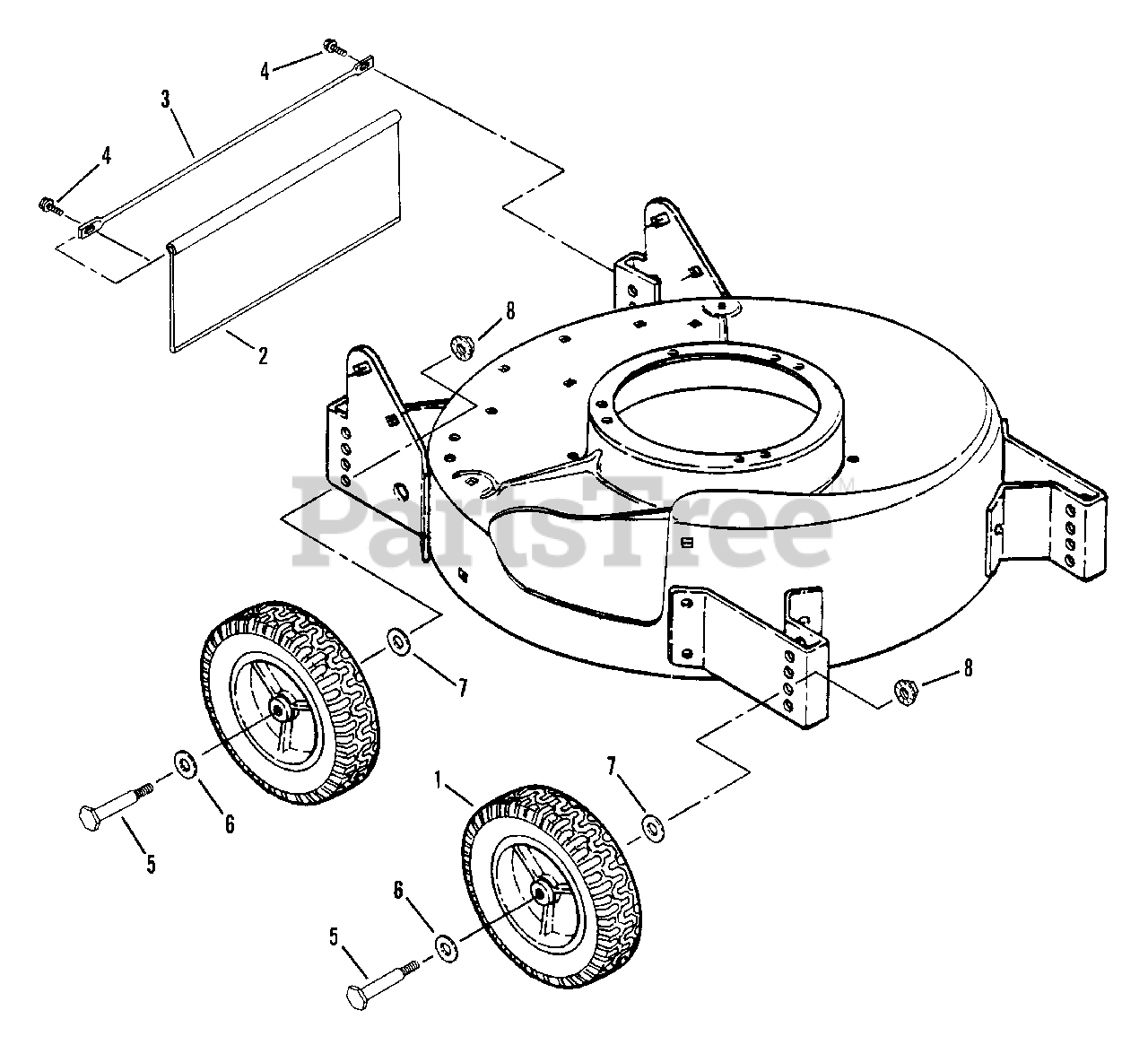

RO 21380 - Snapper 21" Walk-Behind Mower, 3.75hp Wheels, Guards, Axles Parts Diagram

21" Walk-Behind Mower, 3.75hp

Wheels, Guards, Axles Parts Diagram

  • Title

1

Snapper 7022374

WHEEL, Front & Rear 8 x 2.00
(Superseded to 7035727YP)

$29.99

$

In Stock, Qty 20+

0

2

Snapper 7026667

GUARD, Rear Foot
(Superseded to 7026667YP)

$12.99

$

Usually ships in 2-12 days

0

3

Snapper 7026643

SUPPORT, Foot Guard
(Superseded to 7026643YP)

$7.99

$

Usually ships in 2-12 days

0

4

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.99

$

Usually ships in 2-12 days

0

5

Snapper 7091221

BOLT, 3/8-16 x 2-7/16" Shoulder

$

$

Not available

6

Snapper 7011121

WASHER, 5/8 Belleville
(Superseded to 7011121SM)

$3.49

$

In Stock, Qty 20+

0

7

Snapper 7091220

WASHER, 9/16 x 1-1/16" O.D. Thrust

$

$

Currently unavailable

8

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 7

0
