Rogue - Bad Boy Zero-Turn Mower (2019) COVERS & SEAT (CONT.) Parts Diagram

Zero-Turn Mower

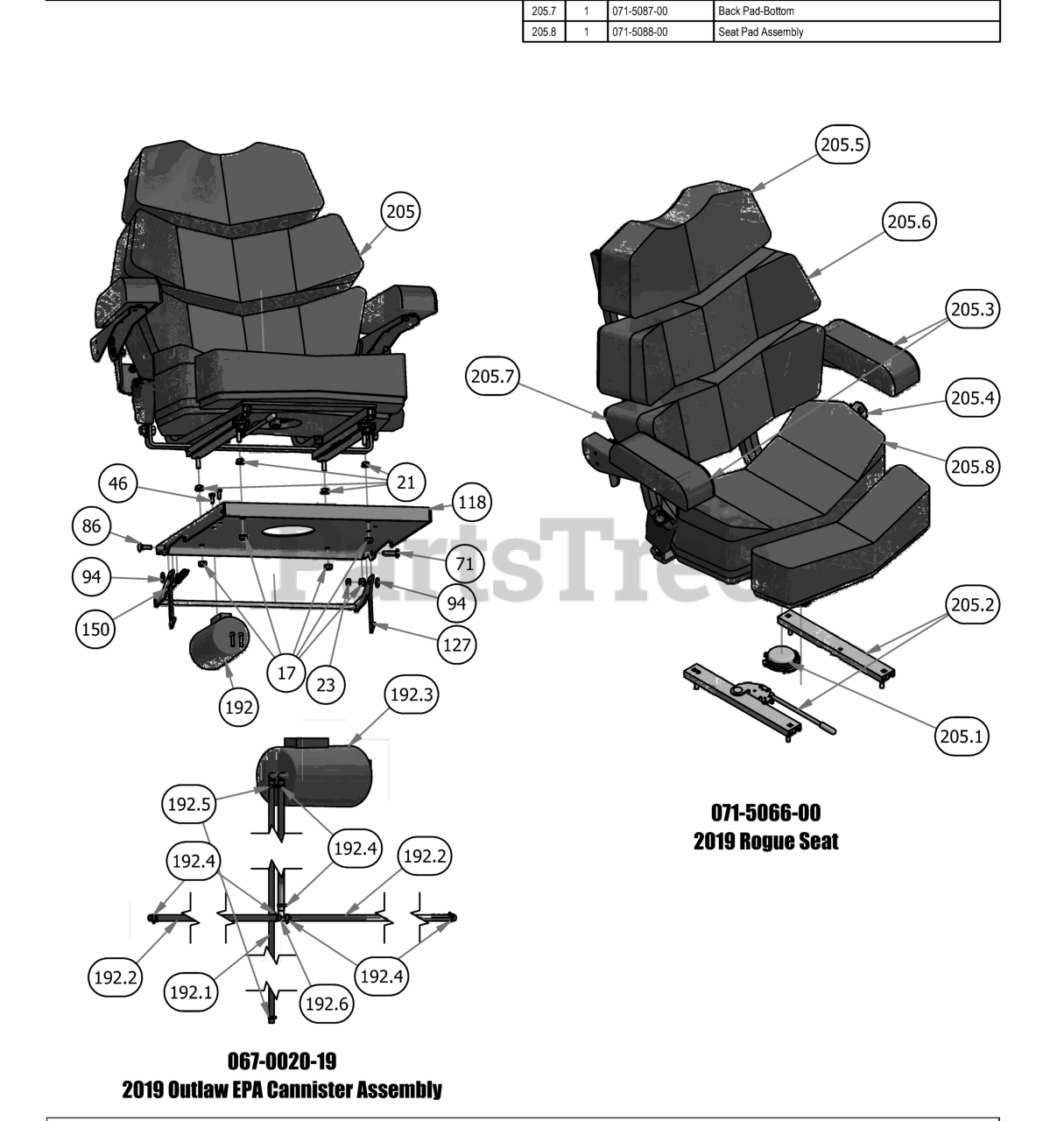

COVERS & SEAT (CONT.) Parts Diagram

  • Title

17

Bad Boy 013-8049-00

5/16-18 Nylon Flange Nut

Note: -

$0.99

$

In Stock, Qty 17

0

21

Bad Boy 013-9002-00

5/16" Flange Nut

Note: -

$0.99

$

In Stock, Qty 10

0

23

Bad Boy 013-9005-00

5/16-18 Nylock Jam Nut 1/2 Nut

Note: -

$3.49

$

Usually ships in 4-7 days

0

46

Bad Boy 018-0024-00

M6-1.0 X 16MM Hex Bolt

Note: -

$3.49

$

In Stock, Qty 8

0

71

Bad Boy 018-4703-00

5/16" x 1 1/4" Carriage Bolt

Note: -

$0.99

$

In Stock, only 3 left!

0

86

Bad Boy 018-8065-00

5/16" x 1" Carriage Bolt

Note: -

$0.99

$

In Stock, Qty 7

0

94

Bad Boy 019-6042-00

.360 ID Plastic Washer

Note: -

$0.99

$

In Stock, Qty 11

0

118

Bad Boy 026-2019-00

2019 Outlaw Seat Plate

Note: -

$105.99

$

Usually ships in 4-7 days

0

127

Bad Boy 028-0090-00

Seat Latch Rod Assembly

Note: -

$41.99

$

Usually ships in 4-7 days

0

150

Bad Boy 034-1025-00

Brake Spring

Note: -

$13.99

$

Usually ships in 4-7 days

0

192

Bad Boy 067-0020-19

2019 Outlaw EPA Cannister Assembly

Note: -

$50.99

$

Usually ships in 4-7 days

0

205

Bad Boy 071-5066-00

2019 Rogue Seat

Note: -

$832.99

$

Usually ships in 4-7 days

0

192.1

Bad Boy 051-2025-66

3/16" Vinyl Tubing, 66" Long

Note: -

$14.99

$

Usually ships in 4-7 days

0

192.2

Bad Boy 051-8072-38

1/4" Vinyl Tubing 38" Long

Note: -

$30.99

$

Usually ships in 4-7 days

0

192.3

Bad Boy 067-0020-00

Carbon Canister

Note: -

$66.99

$

In Stock, only 3 left!

0

192.4

Bad Boy 072-8070-00

3/16 Vinyl Clamp

Note: -

$1.99

$

Usually ships in 4-7 days

0

192.5

Bad Boy 072-8073-00

3/16" Vinyl Hose Clamp

Note: -

$3.49

$

Usually ships in 4-7 days

0

192.6

Bad Boy 073-8068-00

fuel line T

Note: -

$10.99

$

Usually ships in 4-7 days

0

205.1

Bad Boy 071-2045-00

Seat Switch

Note: -

$

$

Not available

205.2

Bad Boy 071-5015-00

Seat Rails

Note: -

$99.99

$

In Stock, only 3 left!

0

205.3

Bad Boy 071-5071-00

Arm Rest Kit

Note: -

$225.99

$

Usually ships in 4-7 days

0

205.4

Bad Boy 071-5072-00

Seat Belt

Note: -

$151.99

$

Usually ships in 4-7 days

0

205.5

Bad Boy 071-5085-00

Back Pad-Top

Note: -

$255.99

$

Usually ships in 4-7 days

0

205.6

Bad Boy 071-5086-00

Back Pad-Middle

Note: -

$255.99

$

Usually ships in 4-7 days

0

205.7

Bad Boy 071-5087-00

Back Pad-Bottom

Note: -

$265.99

$

Usually ships in 4-7 days

0

205.8

Bad Boy 071-5088-00

Seat Pad Assembly

Note: -

$280.99

$

Usually ships in 4-7 days

0
