Rogue - Bad Boy Zero-Turn Mower (2019) DRIVE ARM ASSEMBLIES (CONT.) Parts Diagram

Zero-Turn Mower

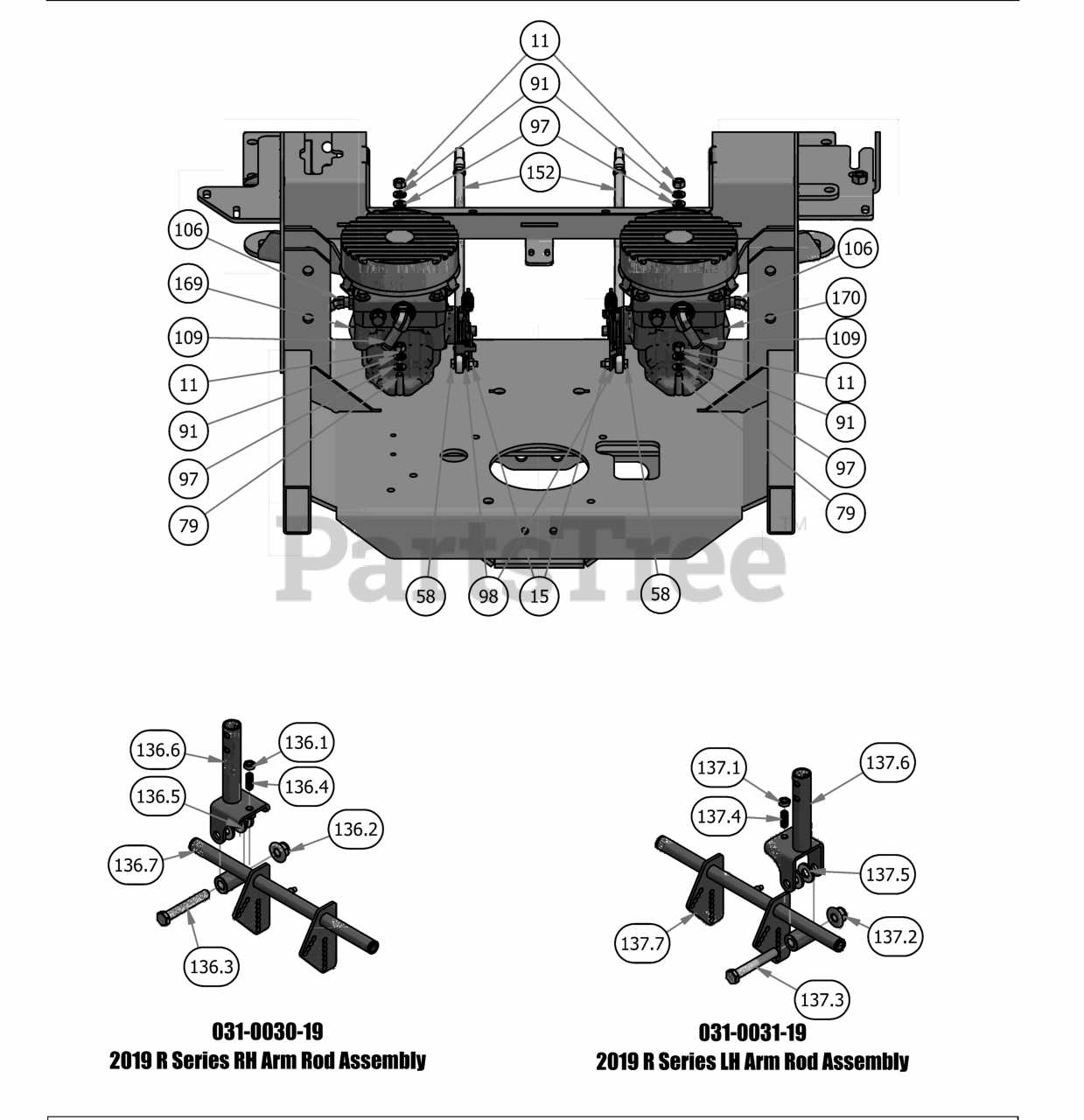

DRIVE ARM ASSEMBLIES (CONT.) Parts Diagram

  • Title

11

Bad Boy 013-6014-00

3/8" Hex Nut

Note: -

$0.99

$

In Stock, only 4 left!

0

15

Bad Boy 013-8043-00

5/16" Nut

Note: -

$0.99

$

In Stock, only 2 left!

0

58

Bad Boy 018-2006-00

5/16 x 1 1/4 Hex Bolt

Note: -

$0.99

$

In Stock, Qty 5

0

79

Bad Boy 018-6012-00

3/8 x 1.5" Bolt

Note: -

$0.99

$

In Stock, Qty 20+

0

91

Bad Boy 019-5037-00

3/8" Lock Washer

Note: -

$0.99

$

In Stock, only 2 left!

0

97

Bad Boy 019-8044-00

5/16" Flat Washer

Note: -

$0.99

$

In Stock, Qty 20+

0

98

Bad Boy 019-8051-00

5/16" Lock Washer

Note: -

$0.99

$

In Stock, only 2 left!

0

106

Bad Boy 024-1200-00

ZT Fitting, 3/8 x 3/8 45 Degree, 4603-6-6

Note: -

$21.99

$

Usually ships in 4-7 days

0

109

Bad Boy 024-5002-00

90 Degree Fitting, 1/2 x 3/4, 4601-8-8

Note: -

$18.99

$

Usually ships in 4-7 days

0

152

Bad Boy 035-0004-00

2019 Outlaw Gen2 XP Push Rod Assembly

Note: -

$45.99

$

Usually ships in 4-7 days

0

169

Bad Boy 050-3001-00

2019 Rogue/Renegade Left Pump 16cc

Note: -

$797.99

$

Usually ships in 4-7 days

0

170

Bad Boy 050-3002-00

2019 Rogue/Renegade Right Pump 16cc

Note: -

$797.99

$

Usually ships in 4-7 days

0

136.1

Bad Boy 013-0017-00

3/8-16 Half Jam Nut

Note: -

$3.49

$

In Stock, only 1 left!

0

136.2

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut

Note: -

$1.99

$

In Stock, Qty 20+

0

136.3

Bad Boy 018-0050-00

1/2-13 x 3.25 GR 5 Hex Bolt Zinc

Note: -

$0.99

$

Usually ships in 4-7 days

0

136.4

Bad Boy 018-0063-00

3/8-16 x 1 Set Socket Set Screw Cup Point

Note: -

$3.49

$

Usually ships in 4-7 days

0

136.5

Bad Boy 019-8054-00

.505 Nylon Spacer

Note: -

$0.99

$

In Stock, Qty 10

0

136.6

Bad Boy 031-0014-00

Drive Arm Pivot

Note: -

$26.99

$

Usually ships in 4-7 days

0

136.7

Bad Boy 031-0030-00

2019 Drive Arm Actuator right

Note: -

$49.99

$

Usually ships in 4-7 days

0

137.1

Bad Boy 013-0017-00

3/8-16 Half Jam Nut

Note: -

$3.49

$

In Stock, only 1 left!

0

137.2

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut

Note: -

$1.99

$

In Stock, Qty 20+

0

137.3

Bad Boy 018-0050-00

1/2-13 x 3.25 GR 5 Hex Bolt Zinc

Note: -

$0.99

$

Usually ships in 4-7 days

0

137.4

Bad Boy 018-0063-00

3/8-16 x 1 Set Socket Set Screw Cup Point

Note: -

$3.49

$

Usually ships in 4-7 days

0

137.5

Bad Boy 019-8054-00

.505 Nylon Spacer

Note: -

$0.99

$

In Stock, Qty 10

0

137.6

Bad Boy 031-0014-00

Drive Arm Pivot

Note: -

$26.99

$

Usually ships in 4-7 days

0

137.7

Bad Boy 031-0031-00

2019 Drive Arm Actuator left

Note: -

$49.99

$

Usually ships in 4-7 days

0
