Rogue - Bad Boy Zero-Turn Mower (2021) REAR SUSPENSION (CONT.) Parts Diagram

Zero-Turn Mower

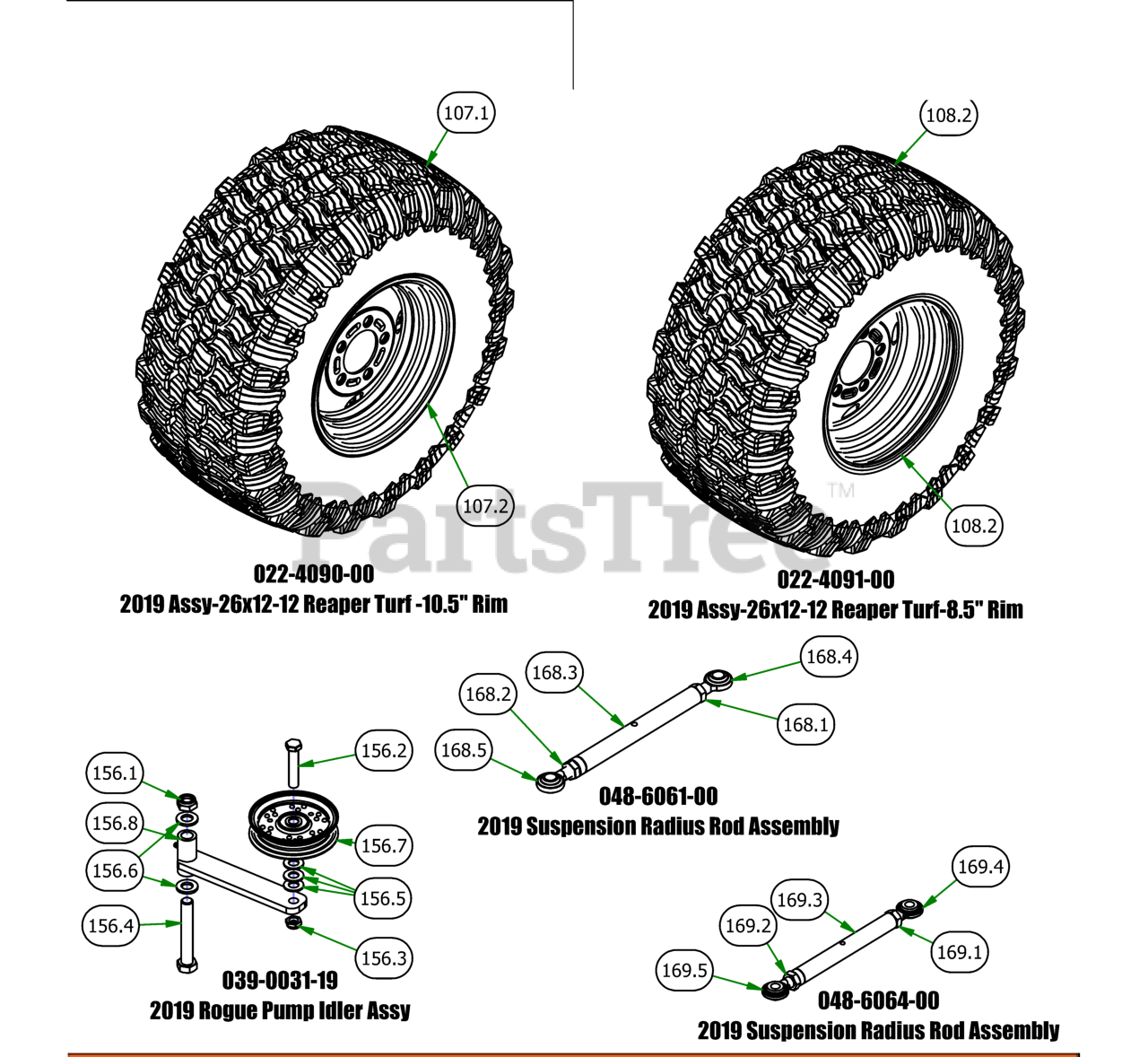

REAR SUSPENSION (CONT.) Parts Diagram

  • Title

107.1

Bad Boy 022-4085-00

2019 26x12-12 Reaper Turf Tire

$250.99

$

Usually ships in 4-7 days

0

107.2

Bad Boy 022-4086-00

2019 10.5" Wheel

$206.99

$

Usually ships in 4-7 days

0

108.1

Bad Boy 022-4070-00

12x8.5 Black Wheel

$150.99

$

Usually ships in 4-7 days

0

108.2

Bad Boy 022-4085-00

2019 26x12-12 Reaper Turf Tire

$250.99

$

Usually ships in 4-7 days

0

156.1

Bad Boy 013-5301-00

5/8-11 Nylon Insert Jam Half Nut

$0.99

$

In Stock, only 2 left!

0

156.2

Bad Boy 018-0015-00

1/2" x 3" Hex Bolt

$3.49

$

Usually ships in 4-7 days

0

156.3

Bad Boy 018-4010-00

1/2" Nylcock Nut (1/2 Jam)

$1.99

$

In Stock, Qty 8

0

156.4

Bad Boy 018-5311-00

5/8" x 4" Hex Bolt

$4.49

$

In Stock, only 2 left!

0

156.5

Bad Boy 019-5702-00

1/2" Washer (Grade 8)

$0.99

$

In Stock, only 2 left!

0

156.6

Bad Boy 019-6017-00

.630 ID Plastic Washer

$0.99

$

In Stock, Qty 5

0

156.7

Bad Boy 033-6001-00

4 3/4 Idler Pulley - ABFI-76

$33.99

$

In Stock, Qty 19

0

156.8

Bad Boy 039-0031-00

2019 Vertical Suspension Drive Tensioner

$28.99

$

Usually ships in 4-7 days

0

168.1

Bad Boy 013-0019-00

5/8-11 HEX JAM NUT ZINC

$4.99

$

Usually ships in 4-7 days

0

168.2

Bad Boy 013-0020-00

NUT, 5/8-18LH

$4.99

$

Usually ships in 4-7 days

0

168.3

Bad Boy 048-0001-00

2019 Suspension Link Body

$30.99

$

Usually ships in 4-7 days

0

168.4

Bad Boy 048-6062-00

2019 RH 5/8" Heim

$45.99

$

In Stock, only 2 left!

0

168.5

Bad Boy 048-6063-00

2019 LH 5/8" Heim

$45.99

$

In Stock, only 2 left!

0

169.1

Bad Boy 013-0027-00

3/4-16 HEX JAM NUT ZINC

$

$

Currently unavailable

169.2

Bad Boy 013-0028-00

3/4-16 LH HEX JAM NUT ZINC

$2.49

$

Usually ships in 4-7 days

0

169.3

Bad Boy 048-0002-00

Rear Radius Rod, 3/4 Body

$

$

Currently unavailable

169.4

Bad Boy 048-6065-00

3/4-16 x 5/8 RH Heim

$45.99

$

Usually ships in 4-7 days

0

169.5

Bad Boy 048-6066-00

3/4-16 x 5/8 LH Heim

$45.99

$

Usually ships in 4-7 days

0
