Rogue - Bad Boy Zero-Turn Mower (2022) COVERS & SEAT Parts Diagram

Zero-Turn Mower

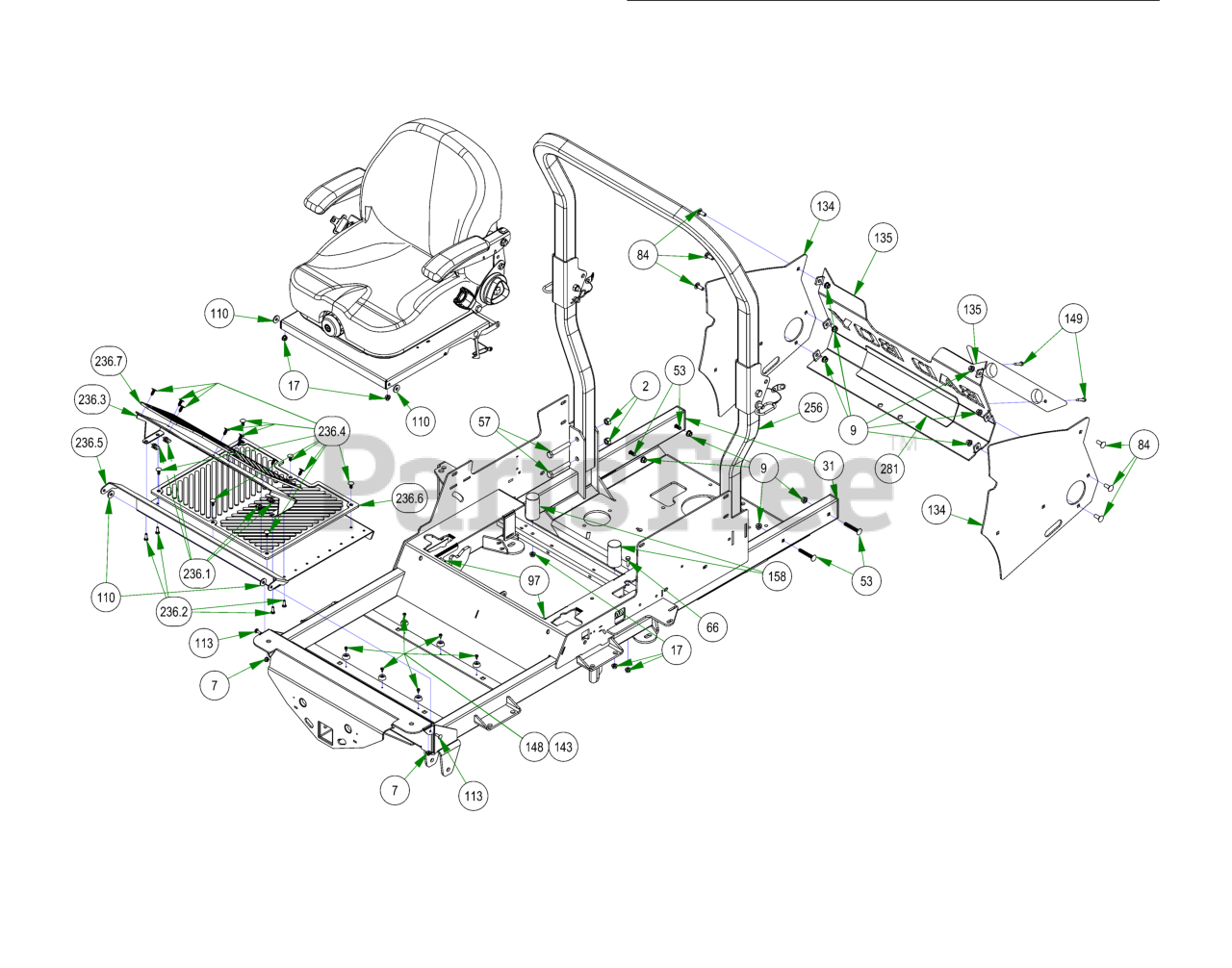

COVERS & SEAT Parts Diagram

  • Title

2

Bad Boy 013-0005-00

1/2-13 HEX 2-WAY REVERSIBLE CENTER LOCKNUT Grade B ZINC

$3.49

$

Usually ships in 4-7 days

0

7

Bad Boy 013-2050-00

1/4-20 NYL INSERT FLANGE LOCKNUT ZINC

$1.49

$

In Stock, only 2 left!

0

9

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 19

0

17

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

21

Bad Boy 013-9002-00

5/16-18 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 10

0

31

Bad Boy 014-9003-00

1 1/2 x 3 Frame Plug

$3.49

$

Usually ships in 4-7 days

0

49

Bad Boy 018-0024-00

M6-1.0 X 16MM DIN 933 HEX TAP BOLT (CL 8.8) ZINC

$3.49

$

In Stock, Qty 8

0

53

Bad Boy 018-0044-00

3/8" x 2 1/2" Carriage Bolt

$3.49

$

Usually ships in 4-7 days

0

57

Bad Boy 018-0050-00

1/2-13 X 3-1/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

66

Bad Boy 018-2007-00

5/16-18 X 1 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

84

Bad Boy 018-5044-00

3/8-16 X 1 CARRIAGE BOLT (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

97

Bad Boy 018-8065-00

5/16-18 X 1 CARRIAGE BOLT (GR.8) ZINC

$0.99

$

In Stock, Qty 7

0

110

Bad Boy 019-6042-00

.360 ID X .983 OD X .120 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 11

0

113

Bad Boy 019-8040-00

1/4-20 X 3/4 CARRIAGE BOLT (GR.5) ZINC

$1.99

$

In Stock, only 3 left!

0

133

Bad Boy 026-2019-21

R-SERIES SEAT PLATE ASSEMBLY

$136.99

$

Usually ships in 4-7 days

0

134

Bad Boy 026-2209-00

2019 Rouge Rear Cover Side Plate

$257.99

$

Usually ships in 4-7 days

0

135

Bad Boy 026-2221-22

2019 Vertical Rear Cover Tailgate - Black

$257.99

$

Usually ships in 4-7 days

0

143

Bad Boy 029-4010-00

Button Bumper

$1.49

$

Usually ships in 4-7 days

0

146

Bad Boy 029-8000-00

2017 XP Bumper

$33.99

$

In Stock, only 2 left!

0

148

Bad Boy 030-3050-00

10-16 X 1/2 PAN PHIL TEK/3 CLIMASEAL OR ACF-SILVER COATED

$0.99

$

In Stock, Qty 9

0

149

Bad Boy 030-7039-00

1/4-14 X 1-1/2 HEX WASHER UNSLOT TEK/3 ZINC

$0.99

$

Usually ships in 4-7 days

0

158

Bad Boy 032-0001-00

2019 Bad Boy X Cylindrical Seat Mount

$24.99

$

Usually ships in 4-7 days

0

181

Bad Boy 039-2156-00

Seat Stop

$15.99

$

Usually ships in 4-7 days

0

218

Bad Boy 067-0020-19

2019 Outlaw EPA Cannister Assembly

$50.99

$

Usually ships in 4-7 days

0

230

Bad Boy 070-5375-00

2021 Rogue Suspension Frame Painted

$1025.99

$

Usually ships in 4-7 days

0

231

Bad Boy 071-6065-22

2022 Suspension Seat w/Seatbelt

$946.99

$

Usually ships in 4-7 days

0

236

Bad Boy 079-3155-20

R-Series Floorboard Assembly

$

$

Currently unavailable

256

Bad Boy 089-0006-00

2019 2X2 Folding ROPS

$497.99

$

Usually ships in 4-7 days

0

281

Bad Boy 091-4050-00

Heat Shield (Fiberglass Adhesive)

$15.99

$

Usually ships in 4-7 days

0

236.1

Bad Boy 013-0054-00

1/4-20 Cage Nut

$0.99

$

Usually ships in 4-7 days

0

236.2

Bad Boy 018-8052-00

1/4-20 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 3 left!

0

236.3

Bad Boy 026-2230-00

OUTLAW ADJUSTABLE FOOT PLATE-ORANGE

$75.99

$

Usually ships in 4-7 days

0

236.4

Bad Boy 040-6080-00

Ratchet Fastener

$3.49

$

In Stock, only 3 left!

0

236.5

Bad Boy 079-3155-00

2019 Outlaw Floorboard

$125.99

$

Usually ships in 4-7 days

0

236.6

Bad Boy 081-0050-00

MAT (FLOOR)

$83.99

$

Usually ships in 4-7 days

0

236.7

Bad Boy 081-0051-00

MAT (FOOT PLATE)

$83.99

$

Usually ships in 4-7 days

0
