Rogue - Bad Boy Zero-Turn Mower (2022) DECK SUBASSEMBLIES Parts Diagram

Zero-Turn Mower

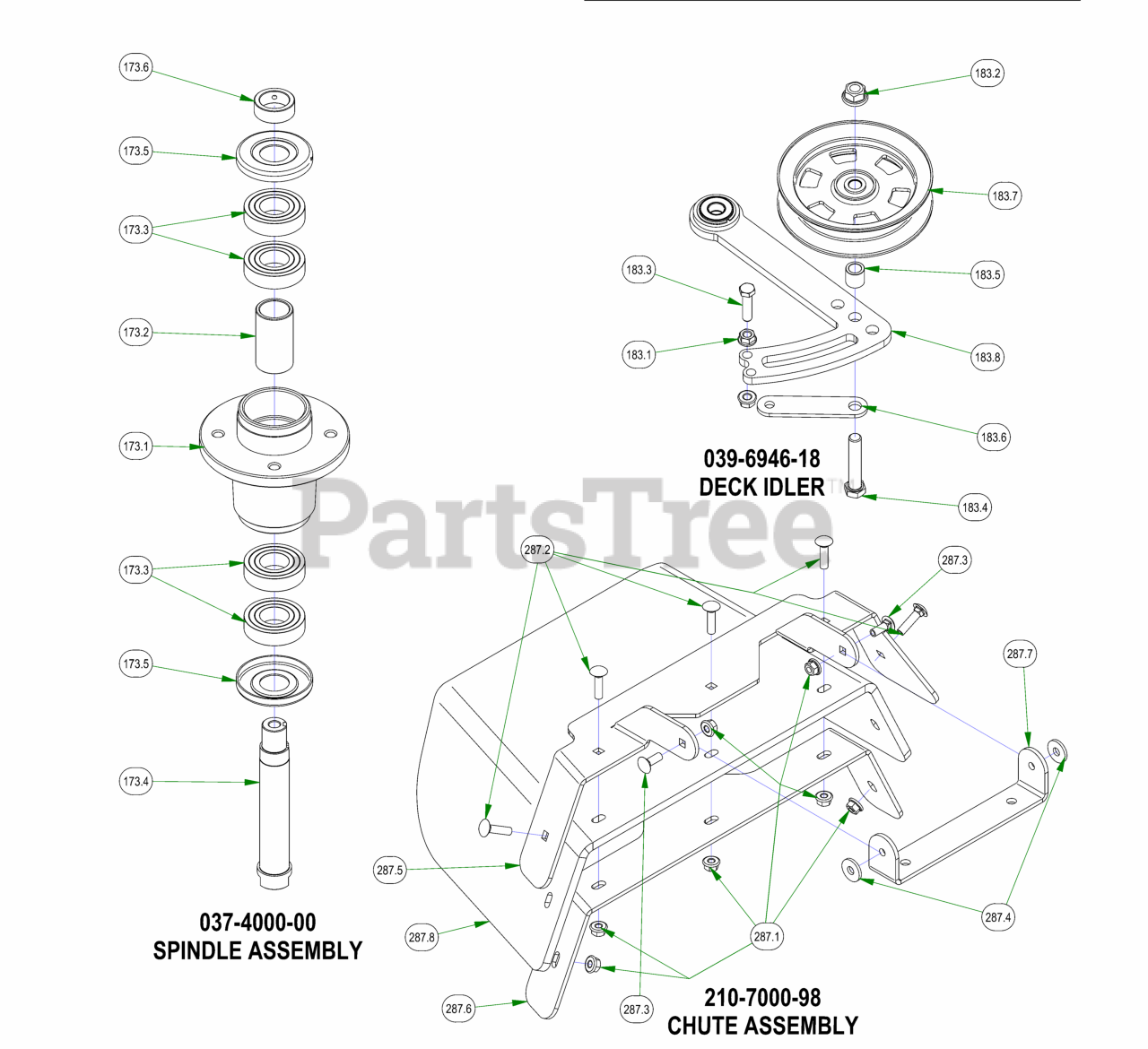

DECK SUBASSEMBLIES Parts Diagram

  • Title

173

Bad Boy 037-4000-00

OUTLAW SPINDLE ASSEMBLY

$332.99

$

In Stock, Qty 12

0

183

Bad Boy 039-6946-18

2019 Rebel Rogue Deck Idler

$83.99

$

In Stock, only 2 left!

0

287

Bad Boy 210-7000-98

2019 Outlaw Gen2 Chute Assembly

$181.99

$

In Stock, only 2 left!

0

173.1

Bad Boy 037-4000-01

4000 Series Spindle Housing

$136.99

$

Usually ships in 0 days

0

173.2

Bad Boy 037-4002-00

4000 Series Spindle Spacer

$7.99

$

Usually ships in 4-7 days

0

173.3

Bad Boy 037-6023-00

Bearing - 6206

$

$

Not available

173.4

Bad Boy 037-6026-00

Spindle Shaft

$89.99

$

In Stock, Qty 8

0

173.5

Bad Boy 037-8002-00

Spindle Dust Cap

$12.99

$

In Stock, Qty 5

0

173.6

Bad Boy 037-9050-00

Locking Collar w/ 1/4"-20 Set Screw

$7.99

$

In Stock, Qty 6

0

183.1

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

183.2

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

183.3

Bad Boy 018-6012-00

3/8-16 X 1-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 20+

0

183.4

Bad Boy 018-6036-00

1/2-13 X 2-3/4 HEX CAP SCREW (GR.5) ZINC

$1.99

$

In Stock, only 2 left!

0

183.5

Bad Boy 025-5203-00

.51 ID X .75 OD X .75 LGTH SOLID SPACER ZINC

$3.49

$

In Stock, Qty 7

0

183.6

Bad Boy 026-0167-00

Belt Tensioner Retainer Plate

$28.99

$

Usually ships in 4-7 days

0

183.7

Bad Boy 033-8050-00

5" Idler Pully

$37.99

$

In Stock, Qty 19

0

183.8

Bad Boy 039-6946-00

2019 Deck Tensioner

$37.99

$

Usually ships in 4-7 days

0

287.1

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

Usually ships in 4-7 days

0

287.2

Bad Boy 018-4703-00

5/16-18 X 1-1/4 CARRIAGE BOLT ZINC

$0.99

$

In Stock, only 3 left!

0

287.3

Bad Boy 018-8066-00

5/16-18 X 7/8 CARRIAGE BOLT ZINC

$1.99

$

In Stock, only 1 left!

0

287.4

Bad Boy 019-6042-00

.360 ID X .983 OD X .120 THICK FLAT WASHER NYLON

$0.99

$

Usually ships in 4-7 days

0

287.5

Bad Boy 039-4893-00

2019 Upper Chute Bracket

$49.99

$

Usually ships in 4-7 days

0

287.6

Bad Boy 039-4894-00

2019 Lower Chute Bracket

$46.99

$

Usually ships in 4-7 days

0

287.7

Bad Boy 206-6018-00

2019 Chute Hanger

$10.99

$

Usually ships in 4-7 days

0

287.8

Bad Boy 210-6025-00

2019 Belted Chute with Logo

$66.99

$

In Stock, only 2 left!

0
