Rogue - Bad Boy Zero-Turn Mower (2023) COVERS & SEAT Parts Diagram

Zero-Turn Mower

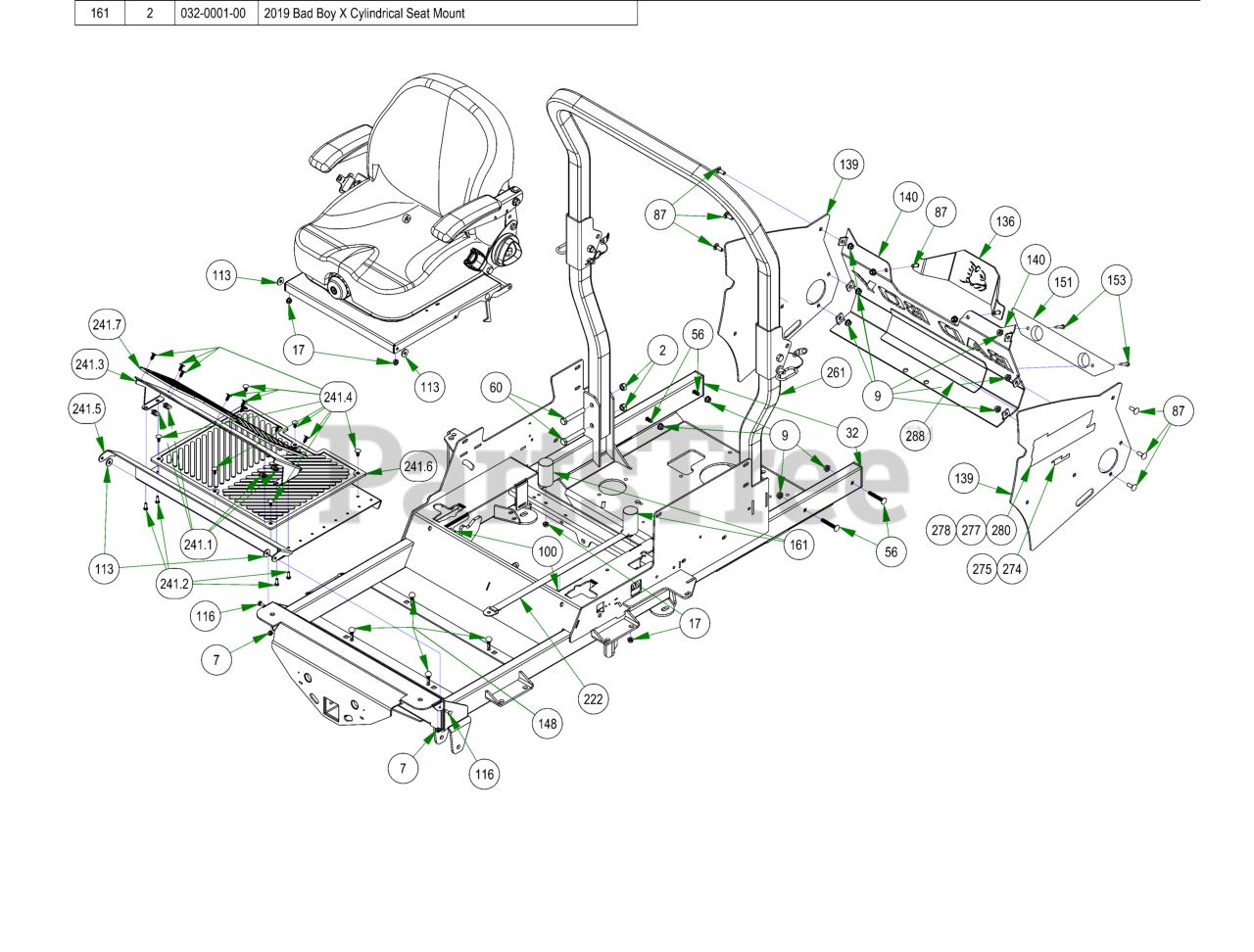

COVERS & SEAT Parts Diagram

  • Title

2

Bad Boy 013-0005-00

1/2-13 HEX 2-WAY REVERSIBLE CENTER LOCKNUT Grade B ZINC

Note: -

$3.49

$

Usually ships in 4-7 days

0

7

Bad Boy 013-2050-00

1/4-20 NYL INSERT FLANGE LOCKNUT ZINC

Note: -

$1.49

$

In Stock, only 2 left!

0

9

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

Note: -

$1.99

$

In Stock, Qty 19

0

17

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

Note: -

$0.99

$

In Stock, Qty 17

0

32

Bad Boy 014-9003-00

1 1/2 x 3 Frame Plug

Note: -

$3.49

$

Usually ships in 4-7 days

0

56

Bad Boy 018-0044-00

3/8" x 2 1/2" Carriage Bolt

Note: -

$3.49

$

Usually ships in 4-7 days

0

60

Bad Boy 018-0050-00

1/2-13 X 3-1/4 HEX CAP SCREW (GR.5) ZINC

Note: -

$0.99

$

Usually ships in 4-7 days

0

87

Bad Boy 018-5044-00

3/8-16 X 1 CARRIAGE BOLT (GR.5) ZINC

Note: -

$0.99

$

Usually ships in 4-7 days

0

100

Bad Boy 018-8065-00

5/16-18 X 1 CARRIAGE BOLT (GR.8) ZINC

Note: -

$0.99

$

In Stock, Qty 7

0

113

Bad Boy 019-6042-00

.360 ID X .983 OD X .120 THICK FLAT WASHER NYLON

Note: -

$0.99

$

In Stock, Qty 11

0

116

Bad Boy 019-8040-00

1/4-20 X 3/4 CARRIAGE BOLT (GR.5) ZINC

Note: -

$1.99

$

In Stock, only 3 left!

0

136

Bad Boy 026-0308-00

Kohler 980 Engine Shield

Note: -

$22.99

$

Usually ships in 4-7 days

0

139

Bad Boy 026-2209-00

2019 Rouge Rear Cover Side Plate

Note: -

$257.99

$

Usually ships in 4-7 days

0

140

Bad Boy 026-2221-22

2019 Vertical Rear Cover Tailgate - Black

Note: -

$257.99

$

Usually ships in 4-7 days

0

148

Bad Boy 029-4011-00

2023 Floor Board Rubber Bumper

Note: -

$1.49

$

Usually ships in 4-7 days

0

151

Bad Boy 029-8000-00

2017 XP Bumper

Note: -

$33.99

$

In Stock, only 2 left!

0

153

Bad Boy 030-7039-00

1/4-14 X 1-1/2 HEX WASHER UNSLOT TEK/3 ZINC

Note: -

$0.99

$

Usually ships in 4-7 days

0

161

Bad Boy 032-0001-00

2019 Bad Boy X Cylindrical Seat Mount

Note: -

$24.99

$

Usually ships in 4-7 days

0

222

Bad Boy 064-8083-00

Seat Strap with Buckles

Note: -

$26.99

$

In Stock, only 3 left!

0

261

Bad Boy 089-0006-00

2019 2X2 Folding ROPS

Note: -

$497.99

$

Usually ships in 4-7 days

0

274

Bad Boy 091-4003-22

2022 Powered By Kawasaki Decal

Note: -

$2.99

$

Usually ships in 4-7 days

0

275

Bad Boy 091-4004-22

2022 Powered By Kohler Decal

Note: -

$6.49

$

Usually ships in 0 days

0

277

Bad Boy 091-4025-00

2019 Rogue 852cc Backplate Cluster

Note: -

$14.99

$

Usually ships in 4-7 days

0

278

Bad Boy 091-4026-00

2019 Rogue 999cc Backplate Cluster

Note: -

$14.99

$

Usually ships in 4-7 days

0

280

Bad Boy 091-4027-23

Rogue 999cc-EFI Backplate Cluster

Note: -

$

$

Not available

288

Bad Boy 091-4050-00

Heat Shield (Fiberglass Adhesive)

Note: -

$15.99

$

Usually ships in 4-7 days

0

241.1

Bad Boy 013-0054-00

1/4-20 Cage Nut

Note: -

$0.99

$

Usually ships in 4-7 days

0

241.2

Bad Boy 018-8052-00

1/4-20 X 3/4 HEX CAP SCREW (GR.5) ZINC

Note: -

$0.99

$

In Stock, only 3 left!

0

241.3

Bad Boy 026-2230-00

OUTLAW ADJUSTABLE FOOT PLATE-ORANGE

Note: -

$75.99

$

Usually ships in 4-7 days

0

241.4

Bad Boy 040-6080-00

Ratchet Fastener

Note: -

$3.49

$

In Stock, only 3 left!

0

241.5

Bad Boy 079-3155-00

2019 Outlaw Floorboard

Note: -

$125.99

$

Usually ships in 4-7 days

0

241.6

Bad Boy 081-0050-00

MAT (FLOOR)

Note: -

$83.99

$

Usually ships in 4-7 days

0

241.7

Bad Boy 081-0051-00

MAT (FOOT PLATE)

Note: -

$83.99

$

Usually ships in 4-7 days

0

138

Bad Boy 026-2019-21

R-SERIES SEAT PLATE ASSEMBLY

Note: -

$136.99

$

Usually ships in 4-7 days

0

235

Bad Boy 070-2305-00

2023 Rogue Frame - Painted

Note: -

$1025.99

$

Usually ships in 4-7 days

0

241

Bad Boy 079-3155-20

R-Series Floorboard Assembly

Note: -

$

$

Currently unavailable

138

Bad Boy 026-2019-21

R-SERIES SEAT PLATE ASSEMBLY

Note: -

$136.99

$

Usually ships in 4-7 days

0
