Royal 46 - Husqvarna Walk-Behind Mower (1998-05) FRAME Parts Diagram

Walk-Behind Mower

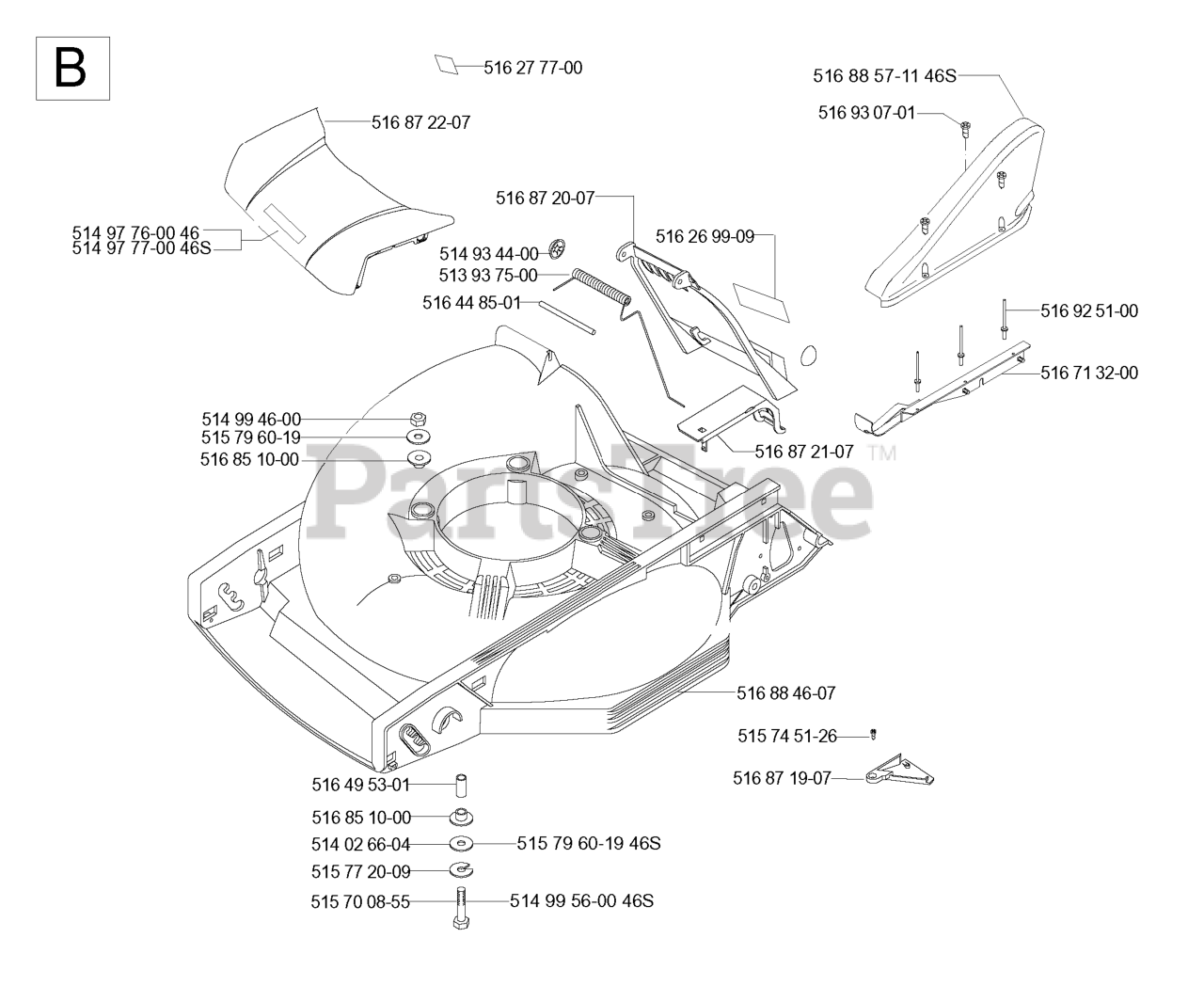

FRAME Parts Diagram

  • Title

516 93 07-01

Husqvarna 516930701

SCREW

$

$

Not available

516 87 20-07

Husqvarna 516872007

COVER

$

$

Not available

513 93 75-00

Husqvarna 513937500

SPRING

$

$

Not available

514 97 77-00

Husqvarna 514977700

DECAL

Note: 46S

$

$

Not available

515 79 60-19

Husqvarna 515796019

Washer

$

$

Not available

516 26 99-09

Husqvarna 516269909

DECAL

$

$

Not available

516 71 32-00

Husqvarna 516713200

BRACKET

$

$

Not available

516 85 10-00

Husqvarna 516851000

WASHER

$

$

Not available

516 88 46-07

Husqvarna 516884607

CHASSIS

$

$

Not available

514 97 76-00

Husqvarna 514977600

DECAL

Note: 46

$

$

Not available

516 87 22-07

Husqvarna 516872207

COVER

$

$

Not available

516 92 51-00

Husqvarna 516925100

RIVET

$

$

Not available

515 74 51-26

Husqvarna 515745126

SCREW

$

$

Not available

515 79 60-19

Husqvarna 515796019

Washer

Note: 46S

$

$

Not available

516 88 57-11

Husqvarna 516885711

COVER

Note: 46S

$

$

Not available

516 44 85-01

Husqvarna 516448501

PIN
(Superseded to 516636401)

$

$

Not available

514 99 56-00

Husqvarna 514995600

BOLT

Note: 46S

$

$

Not available

516 87 21-07

Husqvarna 516872107

COVER

$

$

Not available

516 49 53-01

Husqvarna 516495301

SPACER

$

$

Not available

515 70 08-55

Husqvarna 515700855

SCREW

$

$

Not available

514 02 66-04

Husqvarna 514026604

WASHER

$

$

Not available

516 27 77-00

Husqvarna 516277700

DECAL

$

$

Not available

515 77 20-09

Husqvarna 515772009

REPL BY 735 11 64-01
(Superseded to 735116401)

$4.99

$

In Stock, only 3 left!

0

516 87 19-07

Husqvarna 516871907

COVER

$

$

Not available

514 99 46-00

Husqvarna 514994600

NUT

$

$

Not available

514 93 44-00

Husqvarna 514934400

STAR LOCKWASHER

$

$

Not available
