Royal 46 - Husqvarna Walk-Behind Mower (1998-05) WHEELS & TIRES Parts Diagram

Walk-Behind Mower

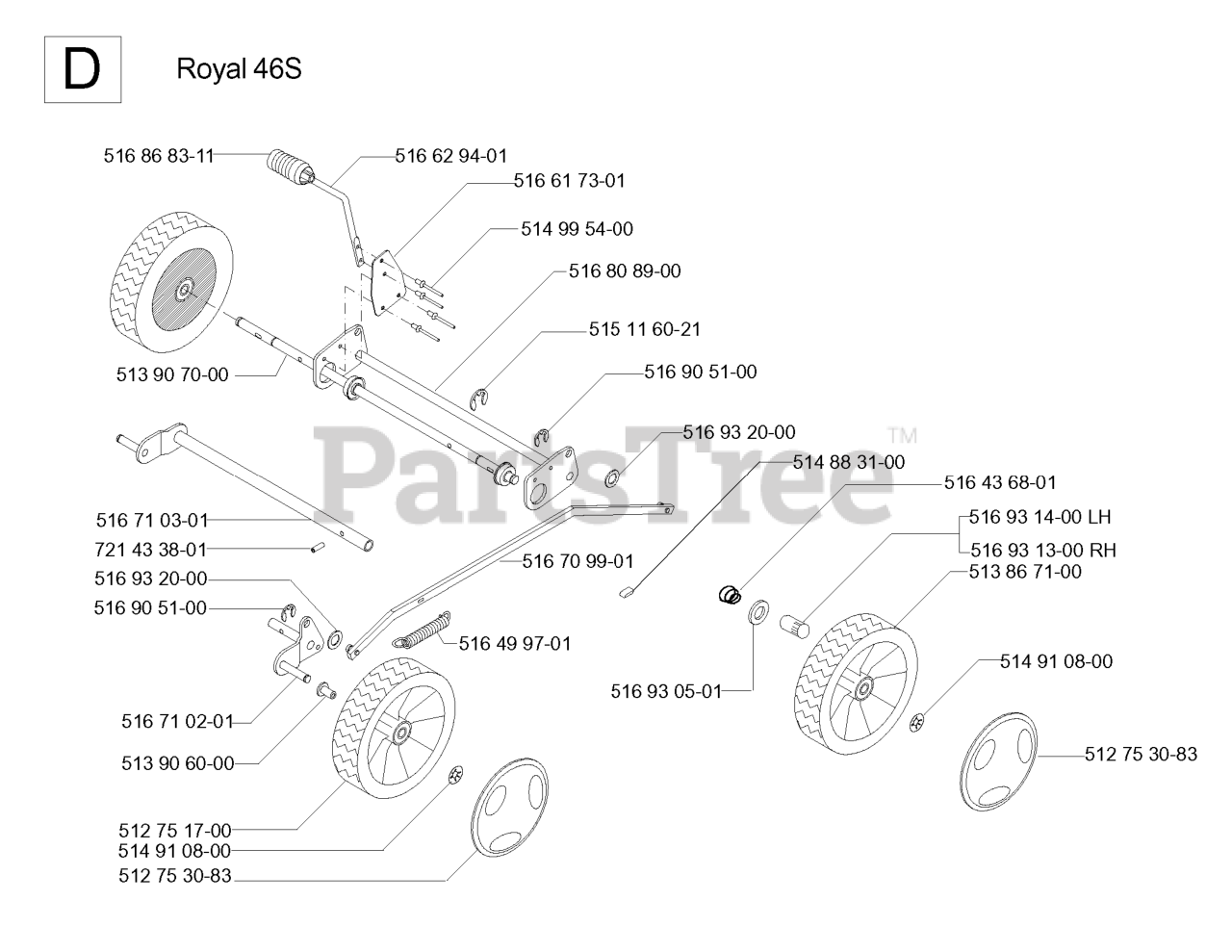

WHEELS & TIRES Parts Diagram

  • Title

514 91 08-00

Husqvarna 514910800

PUSH ON FIX

$

$

Not available

514 88 31-00

Husqvarna 514883100

PAWL

$7.99

$

In Stock, only 4 left!

0

515 11 60-21

Husqvarna 515116021

SNAP RING

$

$

Not available

516 90 51-00

Husqvarna 516905100

Ring

$

$

Not available

516 93 05-01

Husqvarna 516930501

WASHER

$

$

Not available

516 93 14-00

Husqvarna 516931400

PINION

Note: LH

$

$

Not available

516 61 73-01

Husqvarna 516617301

BRACKET

$

$

Not available

513 86 71-00

Husqvarna 513867100

WHEEL

$

$

Not available

514 99 54-00

Husqvarna 514995400

RIVET

$

$

Not available

516 49 97-01

Husqvarna 516499701

SPRING

$

$

Not available

516 71 03-01

Husqvarna 516710301

SHAFT

$

$

Not available

513 90 60-00

Husqvarna 513906000

SPRING

$

$

Not available

516 93 20-00

Husqvarna 516932000

WASHER

$

$

Not available

516 93 13-00

Husqvarna 516931300

NEEDS DESCRIPTION

Note: RH

$

$

Not available

516 43 68-01

Husqvarna 516436801

CONE SPRING

$

$

Not available

513 90 70-00

Husqvarna 513907000

SHAFT

$

$

Not available

516 80 89-00

Husqvarna 516808900

SHAFT

$

$

Not available

512 75 17-00

Husqvarna 512751700

WHEEL
(Superseded to 512828300)

$

$

Not available

512 75 30-83

Husqvarna 512753083

HUB

$

$

Not available

516 86 83-11

Husqvarna 516868311

GRIP

$

$

Not available

516 62 94-01

Husqvarna 516629401

LEVER

$

$

Not available

516 71 02-01

Husqvarna 516710201

BRACKET

$

$

Not available

721 43 38-01

Husqvarna 721433801

KEY

$

$

Not available

516 70 99-01

Husqvarna 516709901

ROD

$

$

Not available
