Royal 46 - Husqvarna Walk-Behind Mower FRAME Parts Diagram

Walk-Behind Mower

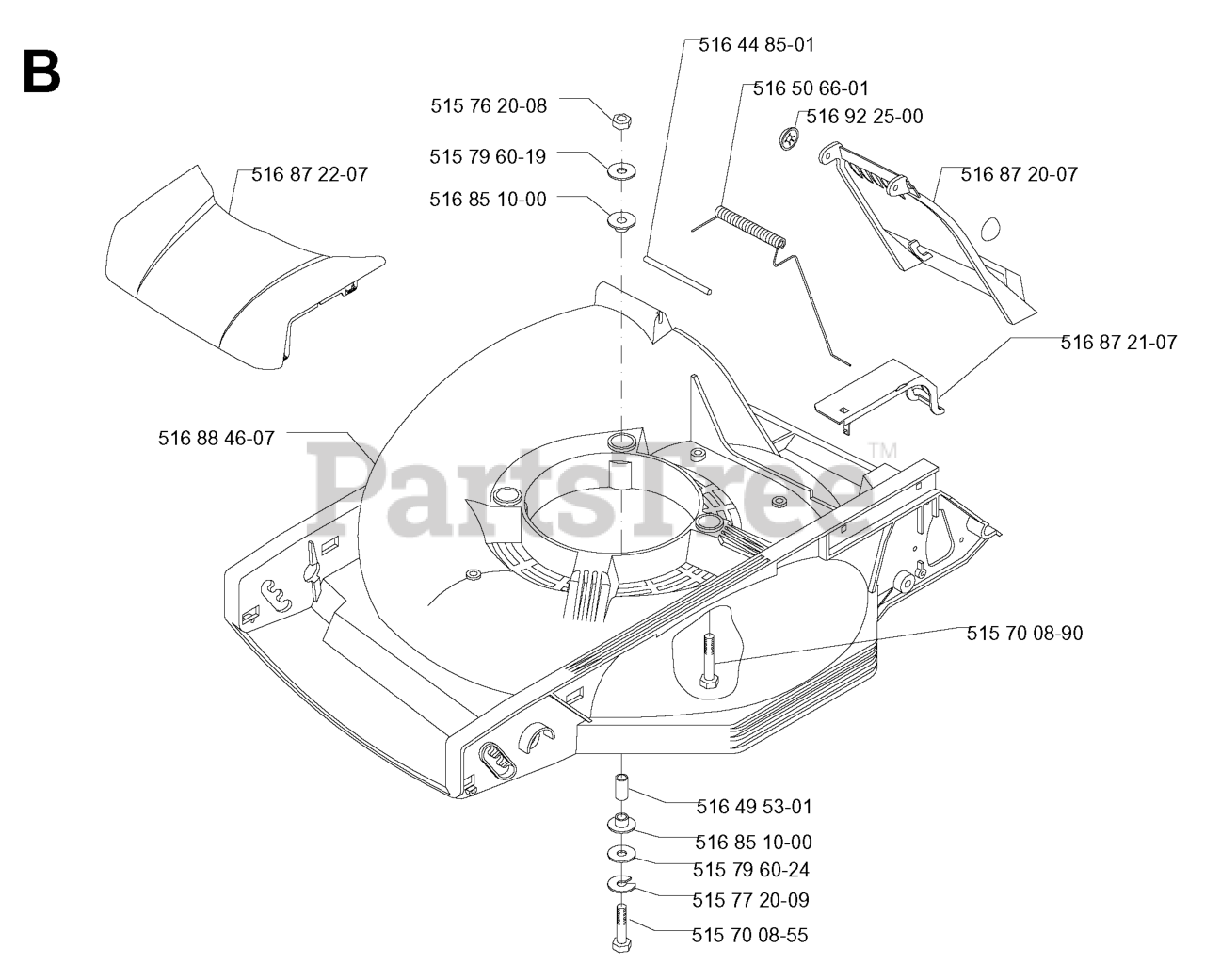

FRAME Parts Diagram

  • Title

516 85 10-00

Husqvarna 516851000

WASHER

$

$

Not available

516 49 53-01

Husqvarna 516495301

SPACER

$

$

Not available

516 92 25-00

Husqvarna 516922500

WASHER

$

$

Not available

515 76 20-08

Husqvarna 515762008

$

$

Currently unavailable

515 70 08-55

Husqvarna 515700855

SCREW

$

$

Not available

516 87 21-07

Husqvarna 516872107

COVER

$

$

Not available

515 79 60-24

Husqvarna 515796024

WASHER

$

$

Not available

515 77 20-09

Husqvarna 515772009

REPL BY 735 11 64-01
(Superseded to 735116401)

$4.99

$

In Stock, only 3 left!

0

516 87 22-07

Husqvarna 516872207

COVER

$

$

Not available

516 88 46-07

Husqvarna 516884607

CHASSIS

$

$

Not available

515 79 60-19

Husqvarna 515796019

Washer

$

$

Not available

515 70 08-90

Husqvarna 515700890

SCREW

$

$

Not available

516 44 85-01

Husqvarna 516448501

PIN
(Superseded to 516636401)

$

$

Not available

516 50 66-01

Husqvarna 516506601

SPRING

$

$

Not available

516 87 20-07

Husqvarna 516872007

COVER

$

$

Not available
