Royal 46 - Husqvarna Walk-Behind Mower FRAME 2 Parts Diagram

Walk-Behind Mower

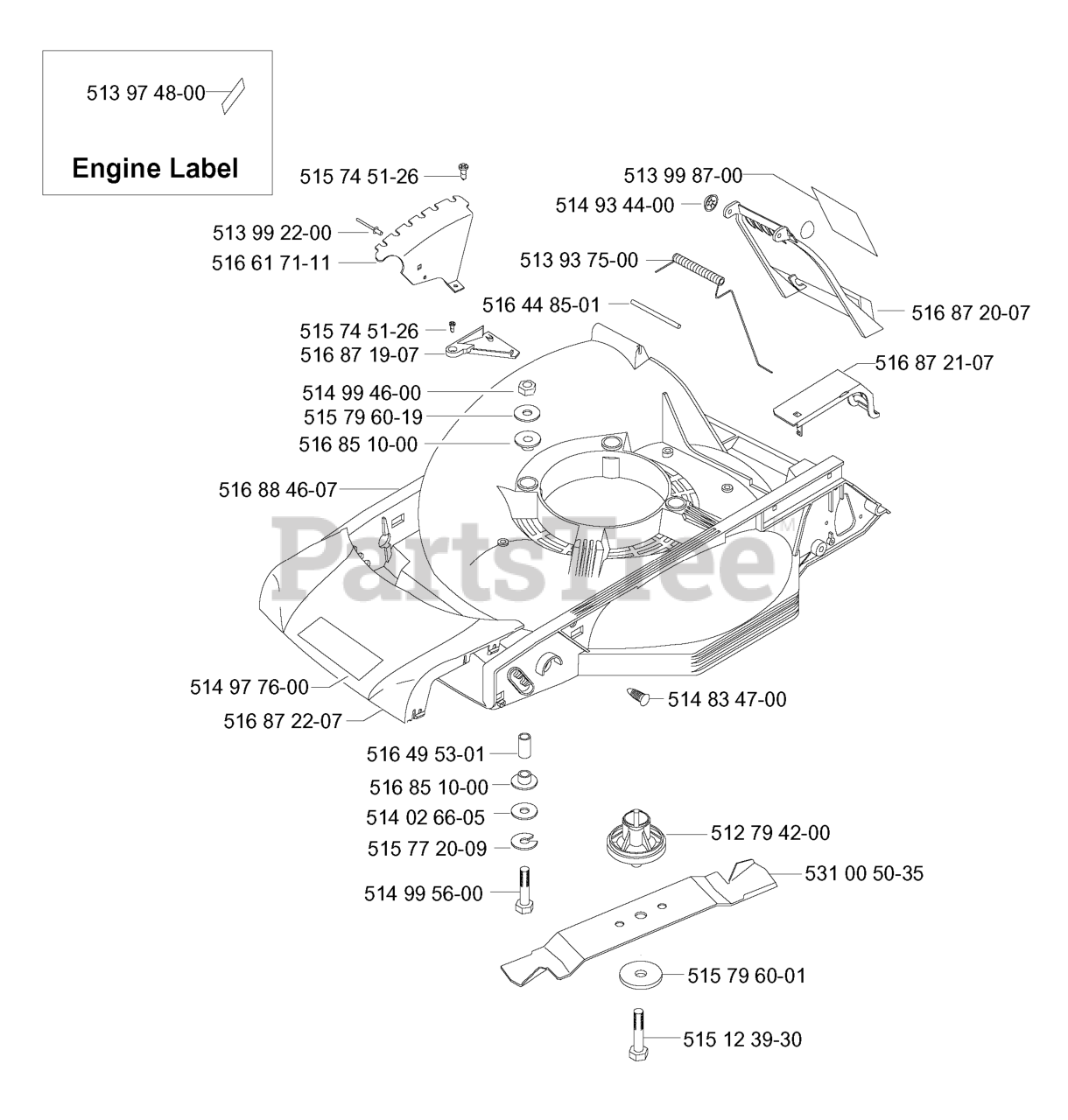

FRAME 2 Parts Diagram

  • Title

516 88 46-07

Husqvarna 516884607

CHASSIS

$

$

Not available

516 61 71-11

Husqvarna 516617111

BRACKET

$

$

Not available

514 02 66-05

Husqvarna 514026605

WASHER

$

$

Not available

514 83 47-00

Husqvarna 514834700

NEEDS DESCRIPTION

$

$

Currently unavailable

513 97 48-00

Husqvarna 513974800

DECAL

$

$

Not available

516 85 10-00

Husqvarna 516851000

WASHER

$

$

Not available

531 00 50-35

Husqvarna 531005035

BLADE

$

$

Not available

513 99 87-00

Husqvarna 513998700

NEEDS DESCRIPTION

$

$

Not available

515 77 20-09

Husqvarna 515772009

REPL BY 735 11 64-01
(Superseded to 735116401)

$4.99

$

In Stock, only 3 left!

0

514 97 76-00

Husqvarna 514977600

DECAL

$

$

Not available

512 79 42-00

Husqvarna 512794200

ADAPTER

$

$

Not available

514 93 44-00

Husqvarna 514934400

STAR LOCKWASHER

$

$

Not available

514 99 56-00

Husqvarna 514995600

BOLT

$

$

Not available

515 74 51-26

Husqvarna 515745126

SCREW

$

$

Not available

515 12 39-30

Husqvarna 515123930

REPL BY 515 12 39-31
(Superseded to 515123931)

$

$

Not available

516 44 85-01

Husqvarna 516448501

PIN
(Superseded to 516636401)

$

$

Not available

516 87 21-07

Husqvarna 516872107

COVER

$

$

Not available

513 93 75-00

Husqvarna 513937500

SPRING

$

$

Not available

514 99 46-00

Husqvarna 514994600

NUT

$

$

Not available

516 87 22-07

Husqvarna 516872207

COVER

$

$

Not available

515 79 60-01

Husqvarna 515796001

WASHER

$6.99

$

Usually ships in 3-10 days

0

515 79 60-19

Husqvarna 515796019

Washer

$

$

Not available

516 87 20-07

Husqvarna 516872007

COVER

$

$

Not available

516 87 19-07

Husqvarna 516871907

COVER

$

$

Not available

516 49 53-01

Husqvarna 516495301

SPACER

$

$

Not available

513 99 22-00

Husqvarna 513992200

RIVET

$

$

Not available
