Royal 47 - Husqvarna Walk-Behind Mower FRAME 2 Parts Diagram

Walk-Behind Mower

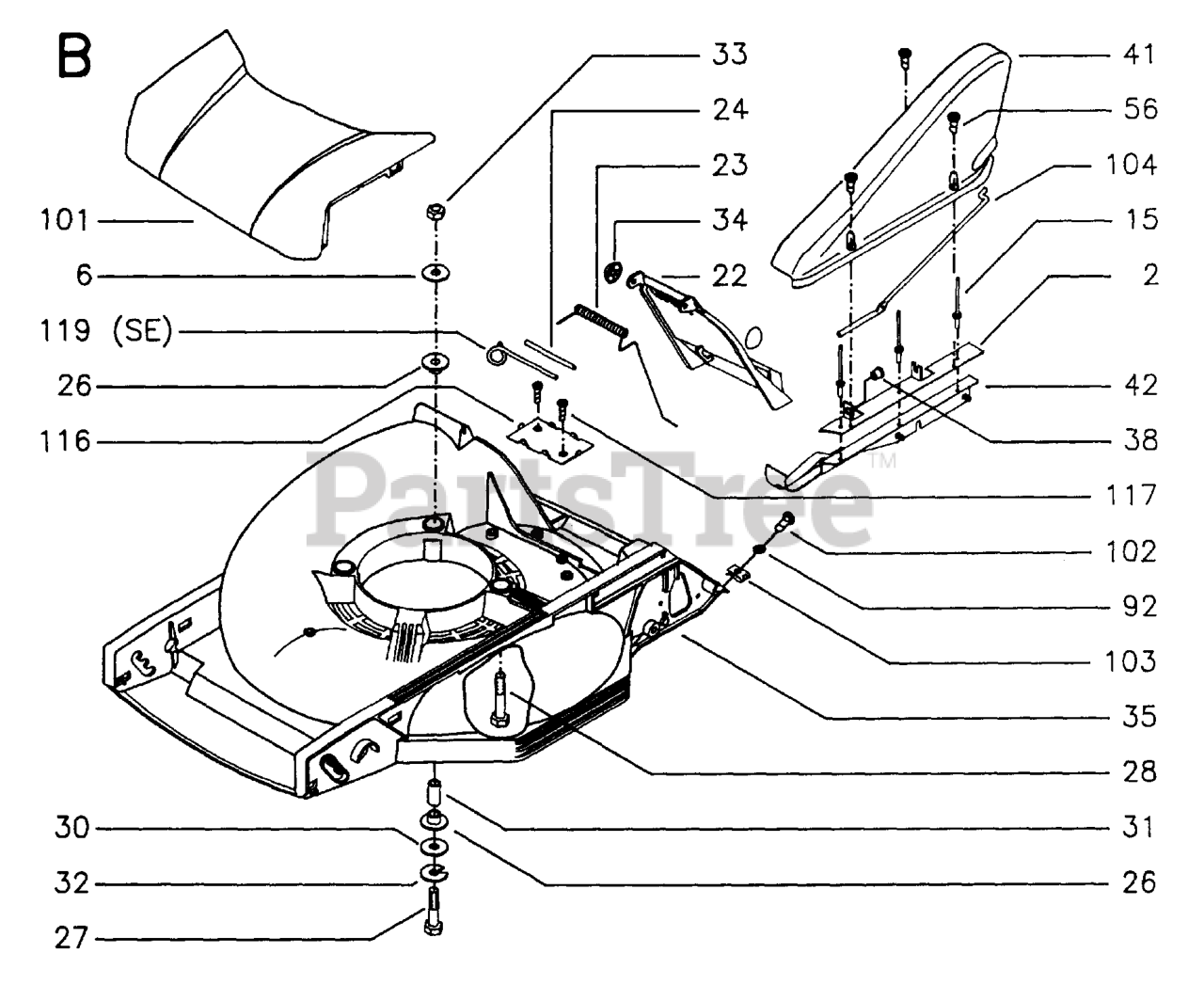

FRAME 2 Parts Diagram

  • Title

56

Husqvarna 516930701

SCREW

$

$

Not available

28

Husqvarna 515700890

SCREW

$

$

Not available

103

Husqvarna 516916101

LOCK PLATE

$

$

Not available

102

Husqvarna 729541401

SCREW

$

$

Not available

24

Husqvarna 516448501

PIN
(Superseded to 516636401)

$

$

Not available

35

Husqvarna 517770282

NEEDS DESCRIPTION

$

$

Currently unavailable

117

Husqvarna 729528971

SCREW

$

$

Not available

119

Husqvarna 516636401

HOLDER

Note: SE

$

$

Not available

15

Husqvarna 516925100

RIVET

$

$

Not available

23

Husqvarna 516506601

SPRING

$

$

Not available

6

Husqvarna 515796019

Washer

$

$

Not available

30

Husqvarna 734116441

SPACER

$6.99

$

Usually ships in 3-10 days

0

26

Husqvarna 516851000

WASHER

$

$

Not available

31

Husqvarna 516495301

SPACER

$

$

Not available

38

Husqvarna 516933800

BUSHING

$

$

Not available

42

Husqvarna 516713200

BRACKET

$

$

Not available

104

Husqvarna 516631101

BRACKET

$

$

Not available

27

Husqvarna 725246351

SCREW

$5.99

$

In Stock, only 4 left!

0

116

Husqvarna 516627401

PLATE

$

$

Not available

33

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

101

Husqvarna 516870807

NEEDS DESCRIPTION

$

$

Currently unavailable

41

Husqvarna 516886007

NEEDS DESCRIPTION

$

$

Currently unavailable

22

Husqvarna 516872007

COVER

$

$

Not available

92

Husqvarna 734115301

Washer

$

$

Not available

2

Husqvarna 516631201

PLATE

$

$

Not available

32

Husqvarna 735116401

SPRING WASHER

$4.99

$

In Stock, only 3 left!

0

34

Husqvarna 516922500

WASHER

$

$

Not available
