Royal 47 - Husqvarna Walk-Behind Mower FRAME Parts Diagram

Walk-Behind Mower

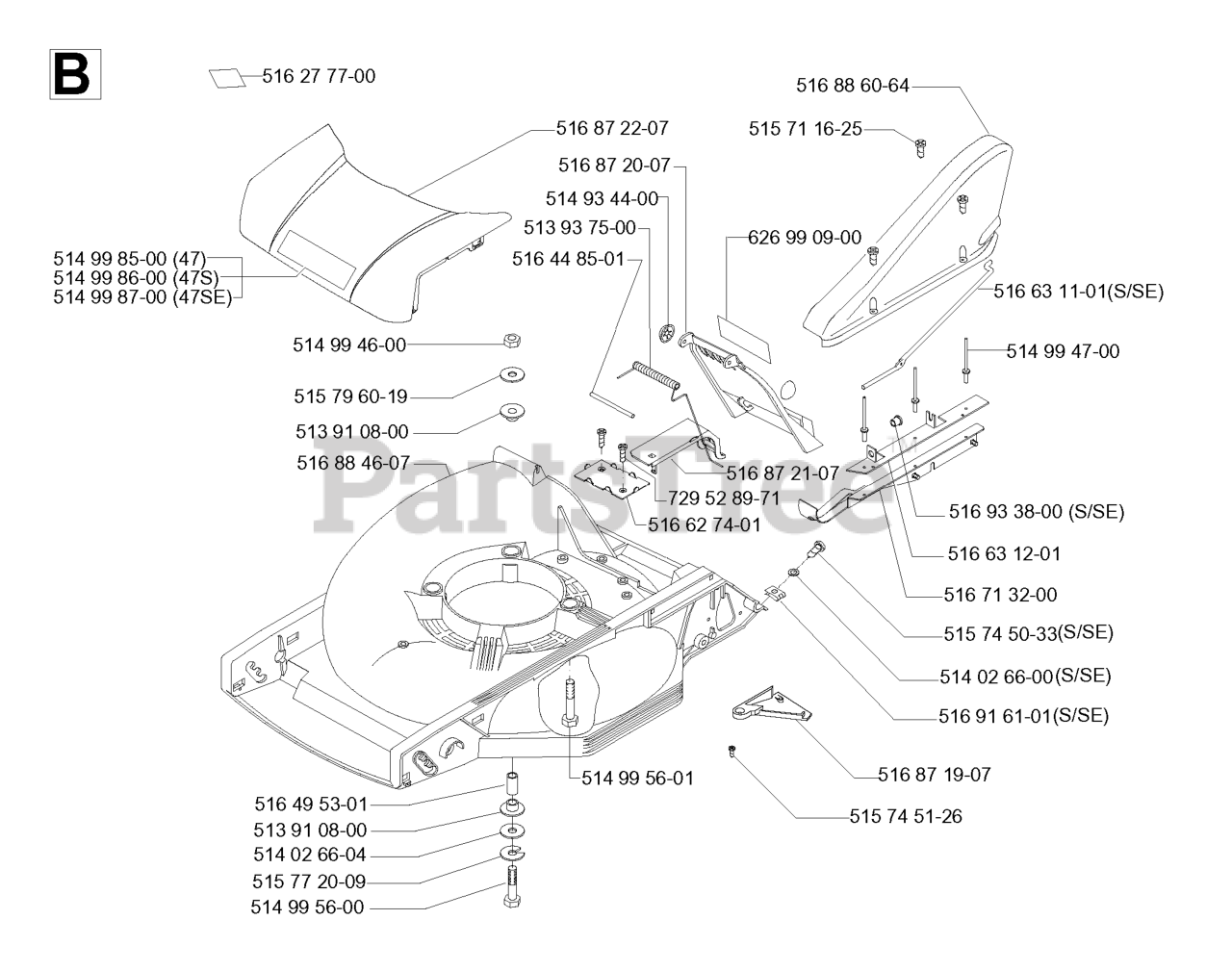

FRAME Parts Diagram

  • Title

516 93 38-00

Husqvarna 516933800

BUSHING

Note: S/SE

$

$

Not available

513 93 75-00

Husqvarna 513937500

SPRING

$

$

Not available

514 99 46-00

Husqvarna 514994600

NUT

$

$

Not available

516 71 32-00

Husqvarna 516713200

BRACKET

$

$

Not available

516 63 11-01

Husqvarna 516631101

BRACKET

Note: S/SE

$

$

Not available

514 02 66-00

Husqvarna 514026600

WASHER

Note: S/SE

$7.99

$

Usually ships in 3-10 days

0

514 99 47-00

Husqvarna 514994700

RIVET

$

$

Not available

513 91 08-00

Husqvarna 513910800

INSULATOR

$

$

Not available

729 52 89-71

Husqvarna 729528971

SCREW
(Superseded to 574507315)

$103.99

$

In Stock, only 2 left!

0

514 99 86-00

Husqvarna 514998600

DECAL

Note: 47S

$

$

Not available

515 74 51-26

Husqvarna 515745126

SCREW

$

$

Not available

516 91 61-01

Husqvarna 516916101

LOCK PLATE

Note: S/SE

$

$

Not available

514 99 56-01

Husqvarna 514995601

BOLT

$

$

Not available

514 02 66-04

Husqvarna 514026604

WASHER

$

$

Not available

516 44 85-01

Husqvarna 516448501

PIN
(Superseded to 516636401)

$

$

Not available

514 93 44-00

Husqvarna 514934400

STAR LOCKWASHER

$

$

Not available

516 87 19-07

Husqvarna 516871907

COVER

$

$

Not available

514 99 56-00

Husqvarna 514995600

BOLT

$

$

Not available

515 77 20-09

Husqvarna 515772009

REPL BY 735 11 64-01
(Superseded to 735116401)

$1.99

$

In Stock, only 1 left!

0

516 88 60-64

Husqvarna 516886064

COVER

$

$

Not available

516 49 53-01

Husqvarna 516495301

SPACER

$

$

Not available

516 87 21-07

Husqvarna 516872107

COVER

$

$

Not available

626 99 09-00

Husqvarna 626990900

DECAL

$

$

Not available

515 79 60-19

Husqvarna 515796019

Washer

$

$

Not available

516 87 22-07

Husqvarna 516872207

COVER

$

$

Not available

516 27 77-00

Husqvarna 516277700

DECAL

$

$

Not available

516 62 74-01

Husqvarna 516627401

PLATE

$

$

Not available

514 99 85-00

Husqvarna 514998500

DECAL

Note: 47

$

$

Not available

514 99 87-00

Husqvarna 514998700

DECAL

Note: 47SE

$

$

Not available

516 88 46-07

Husqvarna 516884607

CHASSIS

$

$

Not available

516 63 12-01

Husqvarna 516631201

PLATE

$

$

Not available

516 87 20-07

Husqvarna 516872007

COVER

$

$

Not available

515 71 16-25

Husqvarna 515711625

SCREW

$

$

Not available

515 74 50-33

Husqvarna 515745033

SCREW
(Superseded to 729541409)

Note: S/SE

$

$

Not available
