Royal 49 - Husqvarna Walk-Behind Mower (Original) FRAME Parts Diagram

Walk-Behind Mower

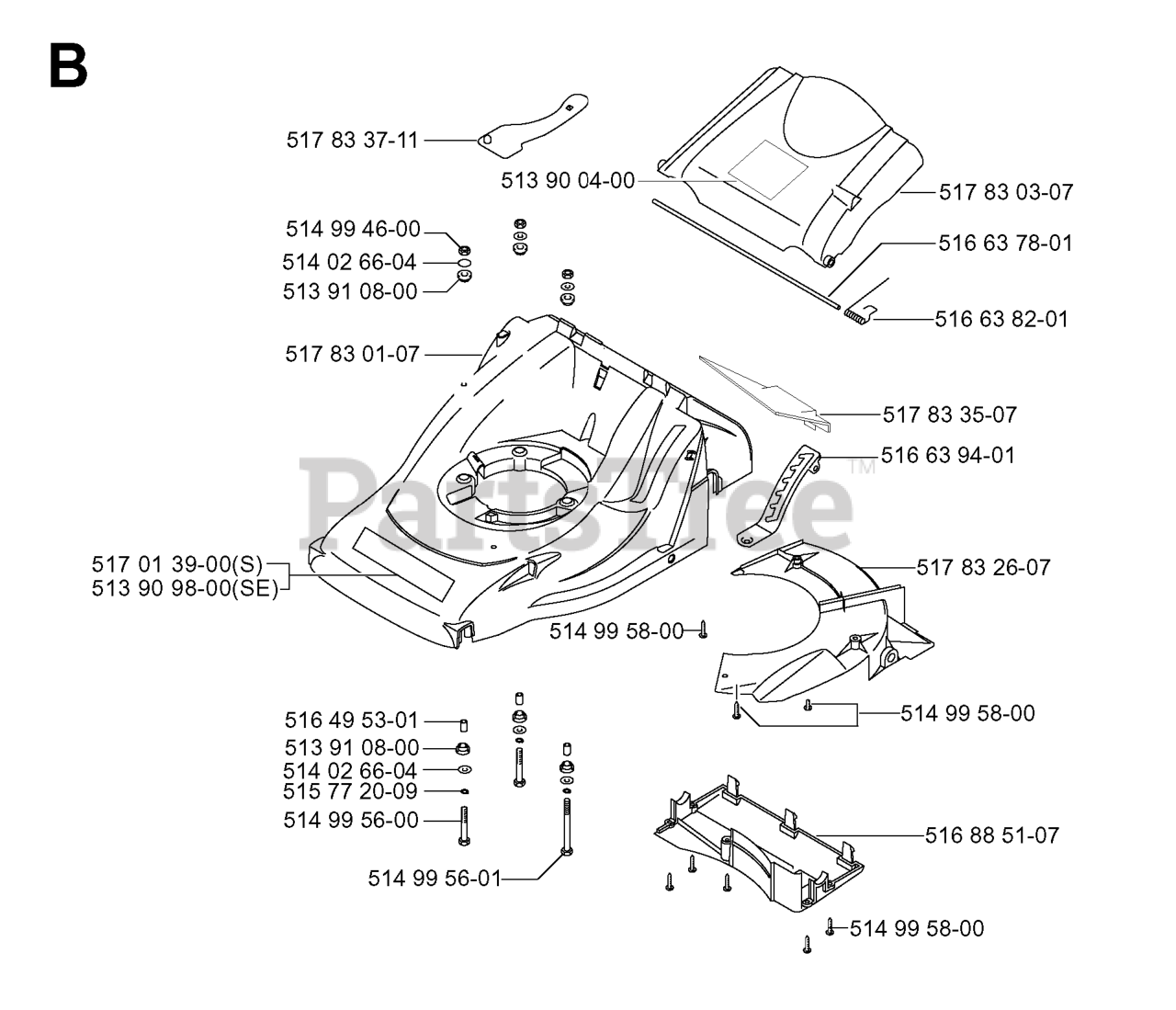

FRAME Parts Diagram

  • Title

514 99 58-00

Husqvarna 514995800

SCREW

$

$

Not available

517 01 39-00

Husqvarna 517013900

DECAL

Note: S

$

$

Not available

516 63 94-01

Husqvarna 516639401

PLATE

$

$

Not available

513 91 08-00

Husqvarna 513910800

INSULATOR

$

$

Not available

514 99 56-01

Husqvarna 514995601

BOLT

$

$

Not available

514 99 56-00

Husqvarna 514995600

BOLT

$

$

Not available

513 90 98-00

Husqvarna 513909800

DECAL

Note: SE

$

$

Not available

513 90 04-00

Husqvarna 513900400

DECAL

$

$

Not available

517 83 37-11

Husqvarna 517833711

HEAT SHIELD

$

$

Not available

517 83 01-07

Husqvarna 517830107

HOUSING

$

$

Not available

514 99 46-00

Husqvarna 514994600

NUT

$

$

Not available

515 77 20-09

Husqvarna 515772009

REPL BY 735 11 64-01
(Superseded to 735116401)

$4.99

$

In Stock, only 3 left!

0

517 83 26-07

Husqvarna 517832607

INSERT

$

$

Not available

516 63 78-01

Husqvarna 516637801

PIN

$

$

Not available

514 02 66-04

Husqvarna 514026604

WASHER

$

$

Not available

516 63 82-01

Husqvarna 516638201

SPRING

$

$

Not available

517 83 03-07

Husqvarna 517830307

FLAP

$

$

Not available

517 83 35-07

Husqvarna 517833507

REPL BY 511 87 78-64
(Superseded to 511877864)

$

$

Not available

516 88 51-07

Husqvarna 516885107

COVER

$

$

Not available

516 49 53-01

Husqvarna 516495301

SPACER

$

$

Not available
