Royal 53 - Husqvarna Walk-Behind Mower (2003-01) Chassis / Housing Assy. Parts Diagram

Walk-Behind Mower

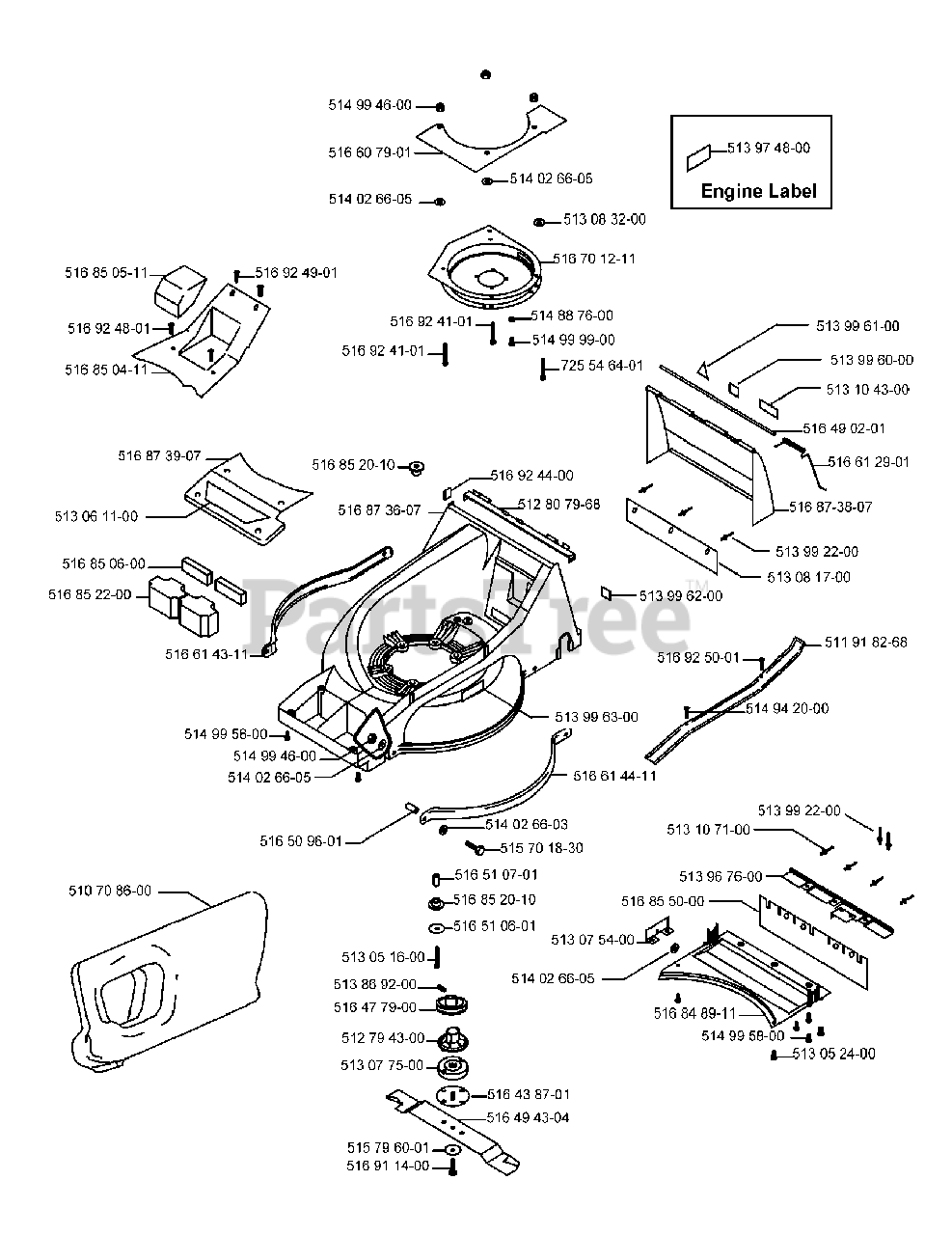

Chassis / Housing Assy. Parts Diagram

  • Title

514994600

Husqvarna 514994600

Nut

$

$

Not available

516607901

Husqvarna 516607901

Protector

$

$

Not available

514026605

Husqvarna 514026605

WASHER

$

$

Not available

516924901

Husqvarna 516924901

Screw

$

$

Not available

516850511

Husqvarna 516850511

Cover

$

$

Not available

516924801

Husqvarna 516924801

Screw

$

$

Not available

516850411

Husqvarna 516850411

Cover

$

$

Not available

516873907

Husqvarna 516873907

Cover

$

$

Not available

513061100

Husqvarna 513061100

DECAL, FRONT 53 INTEK

$

$

Not available

516852010

Husqvarna 516852010

Washer

$1.49

$

In Stock, only 2 left!

0

516873607

Husqvarna 516873607

Cover

$

$

Not available

516924101

Husqvarna 516924101

Screw

$

$

Not available

516924101

Husqvarna 516924101

Screw

$

$

Not available

516701211

Husqvarna 516701211

Adapter
(Superseded to 512807867)

$

$

Not available

514887600

Husqvarna 514887600

Washer

$

$

Not available

514999900

Husqvarna 514999900

Screw

$

$

Not available

725546401

Husqvarna 725546401

Screw

$

$

Not available

516924400

Husqvarna 516924400

Washer

$

$

Not available

512807968

Husqvarna 512807968

BRACKET TOP

$

$

Not available

513996100

Husqvarna 513996100

LABEL, DANGER

$3.99

$

Usually ships in 3-10 days

0

513996000

Husqvarna 513996000

WRANING LABEL

$

$

Not available

513104300

Husqvarna 513104300

DECAL WARNING

$

$

Not available

516490201

Husqvarna 516490201

Shaft

$

$

Not available

516612901

Husqvarna 516612901

Spring

$

$

Not available

516873807

Husqvarna 516873807

Cover

$

$

Not available

513992200

Husqvarna 513992200

Rivet

$

$

Not available

513081700

Husqvarna 513081700

SAFETY FLAP EXTENSION

$

$

Not available

511918268

Husqvarna 511918268

LINK ARM COVER

$

$

Not available

514942000

Husqvarna 514942000

SCREW

$

$

Not available

513992200

Husqvarna 513992200

Rivet

$

$

Not available

513996200

Husqvarna 513996200

LABEL, WARNING

$

$

Not available

516925001

Husqvarna 516925001

Screw
(Superseded to 516924701)

$

$

Not available

513996300

Husqvarna 513996300

WARNING LABEL

$

$

Not available

516614411

Husqvarna 516614411

List

$

$

Not available

514026605

Husqvarna 514026605

WASHER

$

$

Not available

514994600

Husqvarna 514994600

Nut

$

$

Not available

514995800

Husqvarna 514995800

Screw

$

$

Not available

516614311

Husqvarna 516614311

List

$

$

Not available

516852200

Husqvarna 516852200

Counterweight

$

$

Not available

516850600

Husqvarna 516850600

FOAM 500EL

$

$

Not available

510708600

Husqvarna 510708600

MULCH PLUG
(Superseded to 531030104)

$

$

Not available

516852010

Husqvarna 516852010

Washer

$1.49

$

In Stock, only 2 left!

0

516510601

Husqvarna 516510601

Washer

$

$

Not available

513051600

Husqvarna 513051600

SCREW M6X45

$

$

Not available

513869200

Husqvarna 513869200

Screw

$

$

Not available

516477900

Husqvarna 516477900

Pulley

$

$

Not available

512794300

Husqvarna 512794300

DRIVE BUSH DIA 25MM

$

$

Not available

513077500

Husqvarna 513077500

SPACER

$

$

Not available

515796001

Husqvarna 515796001

Washer

$6.99

$

Usually ships in 3-10 days

0

516438701

Husqvarna 516438701

Disc

$22.99

$

In Stock, only 4 left!

0

516494304

Husqvarna 516494304

Blade
(Superseded to 516494310)

$45.99

$

In Stock, only 2 left!

0

514026605

Husqvarna 514026605

WASHER

$

$

Not available

513075400

Husqvarna 513075400

BOTTOM PLATE BRACKET

$

$

Not available

516855000

Husqvarna 516855000

Protector

$

$

Not available

516848911

Husqvarna 516848911

Cover

$

$

Not available

514995800

Husqvarna 514995800

Screw

$

$

Not available

513052400

Husqvarna 513052400

SCREW M6.5X16 SELF TAP

$

$

Not available

514026603

Husqvarna 514026603

Washer

$

$

Not available

515701830

Husqvarna 515701830

Repl by 725 24 57-51
(Superseded to 725245751)

$7.99

$

In Stock, only 1 left!

0

516509601

Husqvarna 516509601

Sleeve

$

$

Not available

516510701

Husqvarna 516510701

Sleeve

$

$

Not available

513967600

Husqvarna 513967600

BRACKET ASSY

$

$

Not available

513107100

Husqvarna 513107100

POP RIVET: LARGE HEAD

$

$

Not available

514026605

Husqvarna 514026605

WASHER

$

$

Not available

513083200

Husqvarna 513083200

WASHER M8 22.6X3

$

$

Not available

513974800

Husqvarna 513974800

Decal

$

$

Not available

516911400

Husqvarna 516911400

Bolt

$

$

Not available
