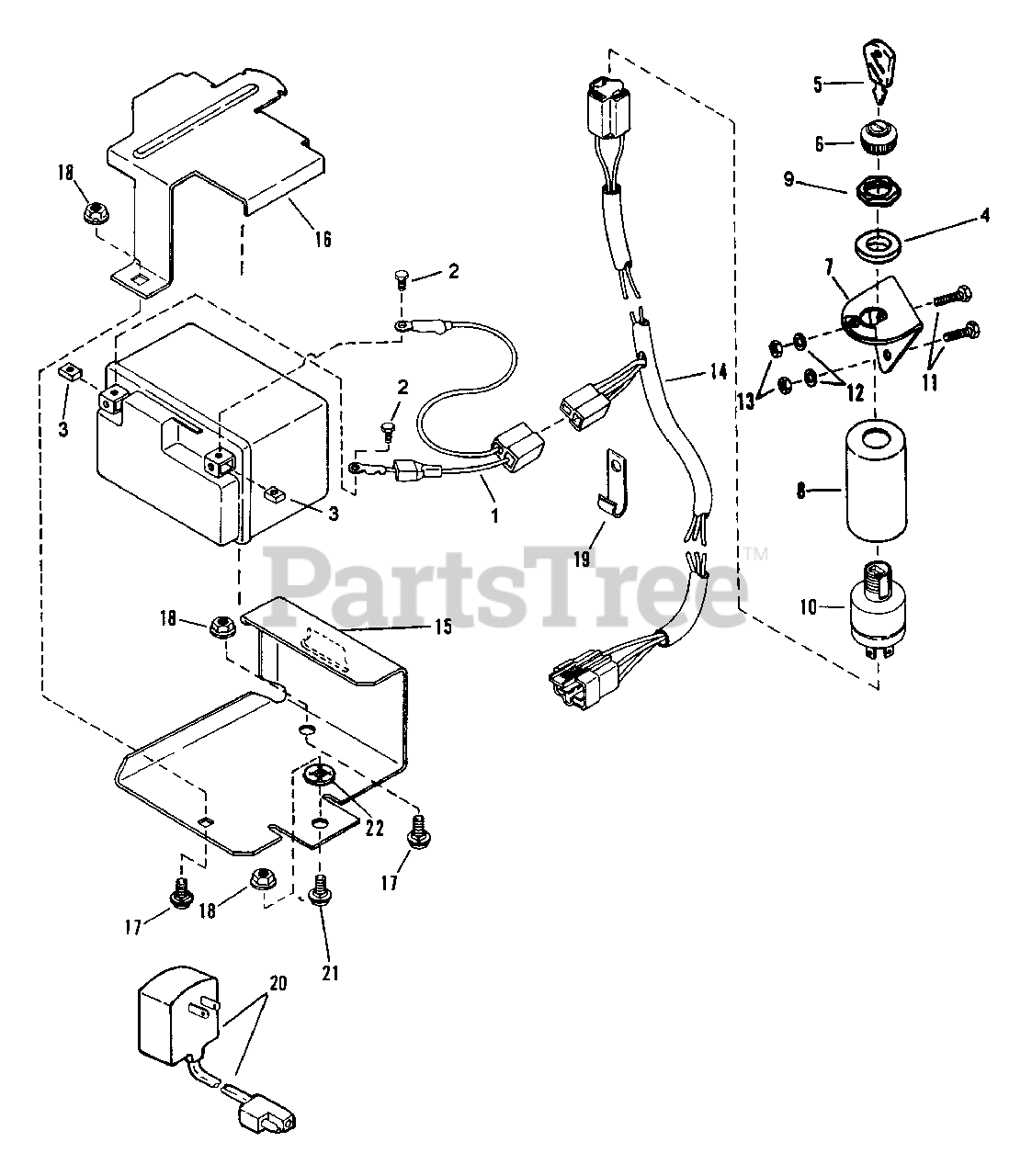

RP 21500E - Snapper 21" Walk-Behind Mower, 5hp Electric Start Parts Diagram

21" Walk-Behind Mower, 5hp

Electric Start Parts Diagram

  • Title

Snapper 7067012

KIT, Battery
(Superseded to 7067012YP)

Note: (Includes Battery & Items 1 Thru 3)

$99.99

$

Usually ships in 2-12 days

0

1

Snapper 7015488

HARNESS, Battery
(Superseded to 7015488YP)

$15.99

$

In Stock, only 1 left!

0

2

Snapper 7043977

SCREW, #10-24 x 1/2" Hex Head Cap
(Superseded to 7043977YP)

$

$

Not available

3

Snapper 7090932

NUT, #1024 Square
(Superseded to 7090932YP)

$6.99

$

Usually ships in 2-12 days

0

4

Snapper 7016132

SPACER
(Superseded to 7016132SM)

$4.49

$

Usually ships in 2-12 days

0

Snapper 7053969

ASSEMBLY, Switch/Brkt.

Note: (Incl. Items 4 & 5 Thru 10)

$

$

Not available

5

Snapper 7073406

KEY, Switch (With Cover)
(Superseded to 1717163SM)

Note: Was 23504

$9.49

$

In Stock, Qty 7

0

6

Snapper 7023506

BEZEL
(Superseded to 7023506SM)

$4.49

$

Usually ships in 2-12 days

0

7

Snapper 7034896

BRACKET, Ignition Switch

$

$

Not available

8

Snapper 7029080

COVER, Switch
(Superseded to 7029080YP)

$

$

Not available

9

Snapper 7012685

NUT, 3/4-20 Hex Lock
(Superseded to 7012685YP)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 7028765

SWITCH, Ignition
(Superseded to 690646)

$37.99

$

In Stock, only 4 left!

0

11

Snapper 7091025

SCREW, 1/4-28 x 1-3/8" Hex Head Cap, Gr. 5
(Superseded to 7091025YP)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

Note: Was 91023

$4.49

$

In Stock, Qty 6

0

13

Snapper 7090095

NUT, 1/4-28 Hex Grade 5 or B
(Superseded to 7090095FS)

Note: Was 91024

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 7029081

HARNESS, Wiring

$

$

Not available

15

Snapper 7032906

BRACKET, Battery
(Superseded to 7032906AYP)

$

$

Not available

16

Snapper 7036132

COVER, Battery
(Superseded to 7036132AYP)

$30.99

$

Usually ships in 2-12 days

0

17

Snapper 7090731

BOLT, 5/16-18 x 1/2" Short Nk. Carriage, Gr. 5
(Superseded to 703798)

$4.49

$

In Stock, only 4 left!

0

18

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock Grade 5
(Superseded to 703409)

Note: Was 90585

$5.99

$

In Stock, Qty 20+

0

19

Snapper 7012652

CLIP, Wiring
(Superseded to 7012652YP)

$3.99

$

Usually ships in 2-12 days

0

20

Snapper 7061188

CHARGER, Battery (120 Volt - 60 Hertz) (wire plug drawing wrong)
(Superseded to 770625)

Note: Was 60766 (18834 + 24444) note:18834 Rpl by 206838

$63.99

$

Usually ships in 2-12 days

0

Snapper 7061385

CHARGER, Battery (230 Volt - 50 Hertz)

Note: (18977 + 67012)

$

$

Currently unavailable

Snapper 7061267

CHARGER, Battery
(Superseded to 7067012YP)

Note: (18834 + 67012) note:18834 Rpl By 206838

$99.99

$

Usually ships in 2-12 days

0

21

Snapper 7090799

BOLT, 5/16-18 x 5/8" Short Nk. Carriage, Gr. 5
(Superseded to 703447)

Note: Was 91026

$4.49

$

In Stock, Qty 18

0

22

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0
