RPS-65011 - Subaru Robin Submersible Pump 4200 Pump Parts Diagram

Submersible Pump

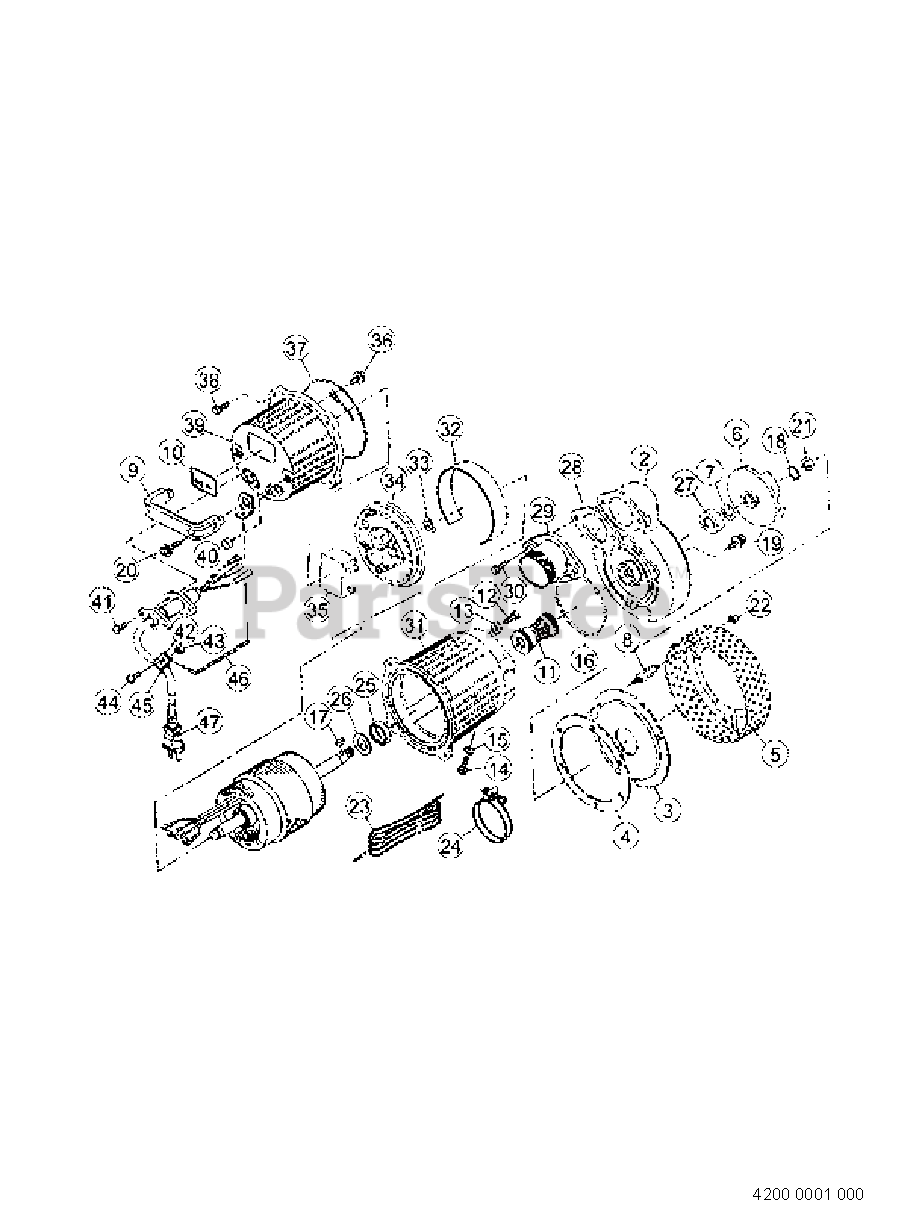

4200 Pump Parts Diagram

  • Title

2

0390011

CASING

$

$

Not available

3

0390016

SUCTION COVER

$

$

Not available

4

0390019

SUCTION GASKET

$

$

Not available

5

0390017

STRAINER

$

$

Not available

6

0390030

IMPELLER

$

$

Not available

7

0390025

ADJUSTING WASHER

$

$

Not available

8

03900020

STUD BOLT

$

$

Not available

9

0390021

HANDLE

$

$

Not available

10

LABEL

$

$

Not available

11

04304243

MECHANICAL SEAL

$

$

Not available

12

0340153

SCREW

$

$

Not available

13

0340142

SEAL RING

$

$

Not available

14

0390037

HEX BOLT

$

$

Not available

15

854255010

SEAL WASHER

$

$

Not available

16

Subaru Robin 889955100

O RING

$

$

Currently unavailable

17

Subaru Robin 884205023

KEY

$

$

Currently unavailable

18

845205010

TOOTHED WASHER

$

$

Not available

19

0390150

HEX SOCKET BOLT

$

$

Not available

20

707605057

SCREW

$

$

Not available

21

827405010

HEX NUT

$

$

Not available

22

827405008

HEX NUT

$

$

Not available

23

0390101

ROPE

$

$

Not available

24

940019060

HOSE BAND

$

$

Not available

25

0430299

THRUST GASKET

$

$

Not available

26

0390537

THRUST WASHER

$

$

Not available

27

895154014

OIL SEAL

$

$

Not available

28

0390092

DELIVERY GASKET

$

$

Not available

29

0430143

DELIVERY GASKET

$

$

Not available

30

748119032

HEX BOLT

$

$

Not available

31

0390473

FRAME

$

$

Not available

32

0390500

SUPPORTER

$

$

Not available

33

0390490

WAVE WASHER

$

$

Not available

34

0390475

BRACKET

$

$

Not available

35

0390578

CONDENSER

$

$

Not available

36

0390497

SCREW

$

$

Not available

37

Subaru Robin 0390149

HEAD GASKET

$

$

Currently unavailable

38

0390494

HEX BOLT

$

$

Not available

39

0390566

HEAD COVER

$

$

Not available

40

0390501

HEAD BUSHING

$

$

Not available

41

0390495

SCREW

$

$

Not available

42

0260018

CORD BAND

$

$

Not available

43

827305005

HEX NUT

$

$

Not available

44

0390483

SCREW

$

$

Not available

45

0390031

CORD SUPPORTER

$

$

Not available

46

0398106

CHAIN AY

$

$

Not available

47

Subaru Robin 0430088

POWER CORD

$110.13

$

Usually ships in 2-12 days
