RPX 100 (2691290-00) - Snapper 96cm Lawn Tractor, 4195 Series Briggs & Stratton Backplate Group Parts Diagram

96cm Lawn Tractor, 4195 Series Briggs & Stratton

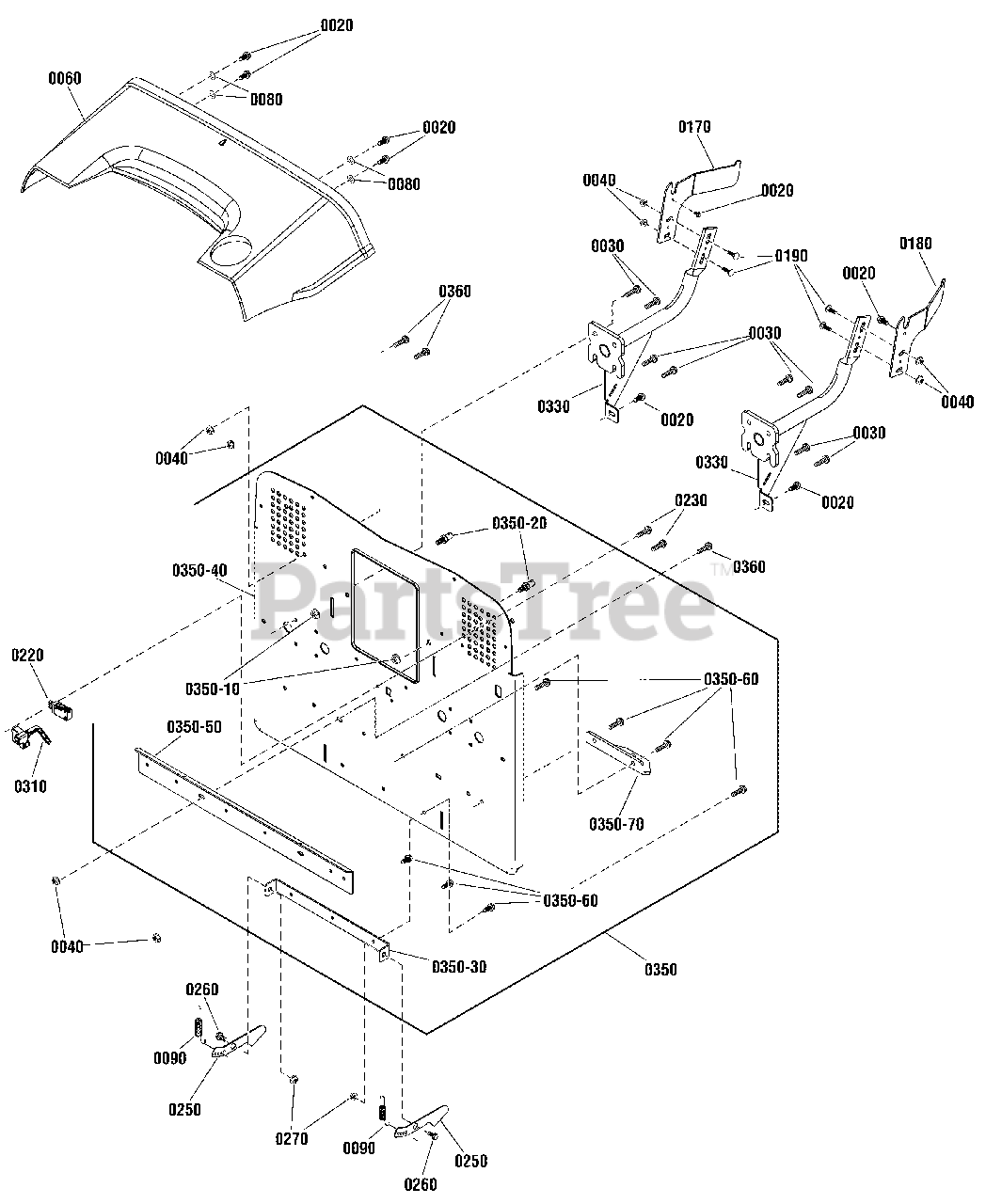

Backplate Group Parts Diagram

  • Title

0020

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0030

Snapper 703167

SCREW, Taptite, 5/16-18 x 1-1/4

$3.99

$

In Stock, Qty 12

0

0040

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0060

Snapper 1758498YP

TRANSITION PIECE

$245.99

$

Usually ships in 2-12 days

0

0080

Snapper 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 13

0

0090

Snapper 165X75MA

SPRING, Extension

$8.49

$

Usually ships in 2-12 days

0

0170

Snapper 885853BMYP

ROTATION PLATE, RH

$42.99

$

Usually ships in 2-12 days

0

0180

Snapper 885852BMYP

ROTATION PLATE, LH

$42.99

$

Usually ships in 2-12 days

0

0190

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0220

Snapper 885573YP

SWITCH, Bag Full

$37.99

$

Usually ships in 2-12 days

0

0230

Snapper 880760YP

SCREW, Plastite, #10-14 x 7/8

$4.49

$

Usually ships in 2-12 days

0

0250

Snapper 1758530BMYP

LATCH

$7.99

$

Usually ships in 2-12 days

0

0260

Snapper 009X39MA

BOLT, Shoulder, 3/8-16 x 3/4

$6.49

$

In Stock, Qty 9

0

0270

Snapper 703893

NUT, Hex, Flange, Two Way Lock, 3/8-16

$6.99

$

In Stock, Qty 20+

0

0310

Snapper 885618YP

COVER, Bag Full Switch

$17.99

$

Usually ships in 2-12 days

0

0330

Snapper 1758925BMYP

SUPPORT, Bagger

$125.99

$

Usually ships in 2-12 days

0

0350

Snapper 885893BMYP

BACK PLATE ASSEMBLY

Note: (Includes Ref. Nos. 0350-10 thru 0350-70)

$279.99

$

Usually ships in 2-12 days

0

0350-10

Snapper 703893

NUT, Hex, Flange, Two Way Lock, 3/8-16

$6.99

$

In Stock, Qty 20+

0

0350-20

Snapper 704054

PIN, Threaded, 3/8-16 x 5/8

$7.49

$

In Stock, Qty 6

0

0350-30

Snapper 885497AYP

BRACKET, Bagger Latch

$31.99

$

Usually ships in 2-12 days

0

0350-40

BACK PLATE

$

$

Not available

0350-50

Snapper 885891BMYP

BRACE, Lower

$53.99

$

Usually ships in 2-12 days

0

0350-60

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0350-70

Snapper 885468YP

PLATE, Hitch

$

$

Not available

0350-70

Snapper 885862YP

KIT TOWBRKT

$12.99

$

Usually ships in 2-12 days

0

0360

Snapper 703410

BOLT, Serrated Flange, 5/16-18 X 1.0

$4.49

$

In Stock, only 2 left!

0
