RPX 102 (2692055-00) - Snapper 102cm Lawn Tractor, 7720 Series Briggs & Stratton Engine Group Parts Diagram

102cm Lawn Tractor, 7720 Series Briggs & Stratton

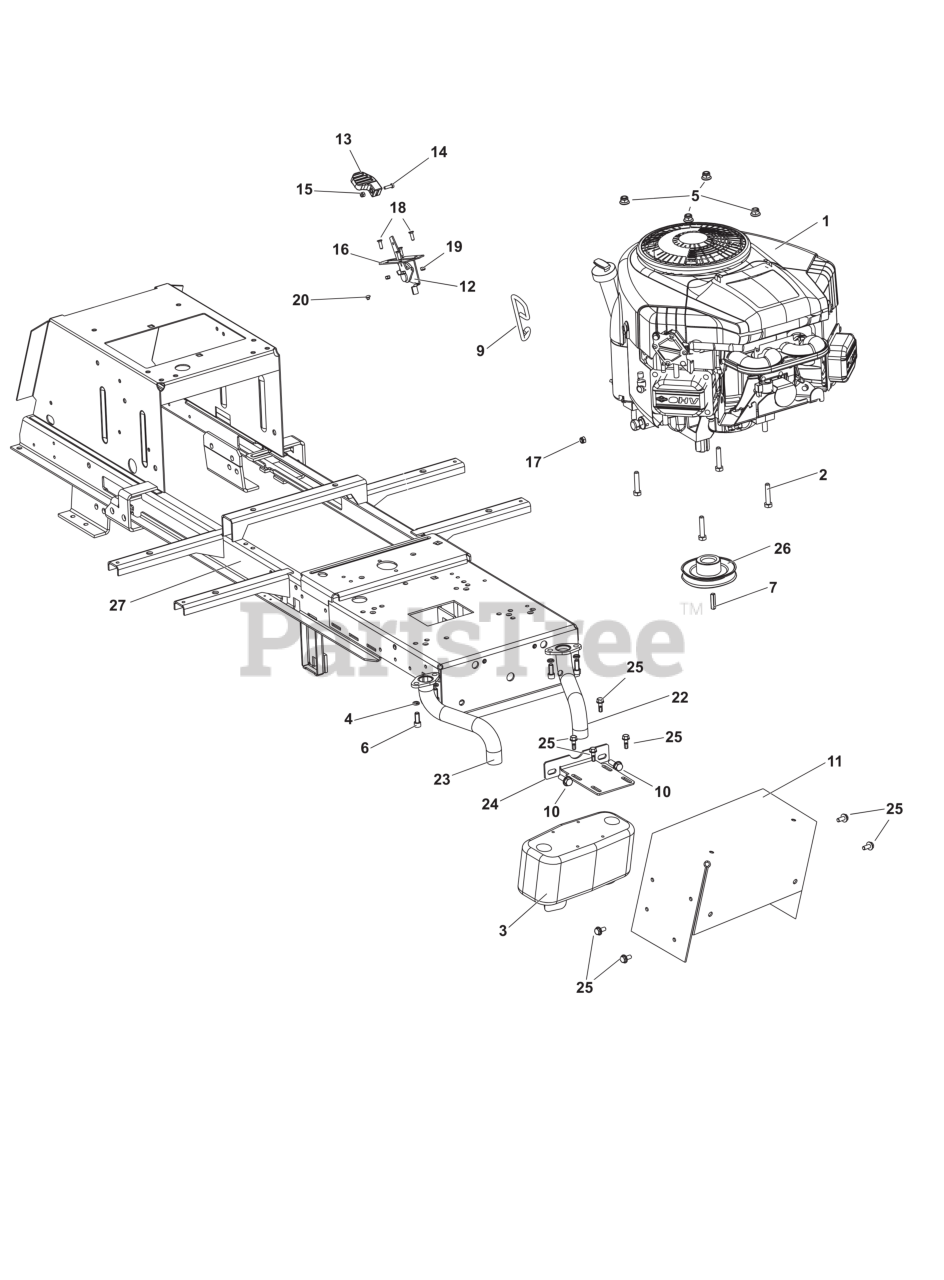

Engine Group Parts Diagram

  • Title

1

Snapper 40N877-0071-B5

ENGINE, B&S Twin

Note: ( Refer to Note: **) (Engine Model: 40N877-0071-B5 )

$

$

Currently unavailable

2

SCREW M8X40

Note: ( Refer to Note: *)

$

$

Not available

3

Snapper 84012037

EXHAUST

$

$

Currently unavailable

4

WASHER 8

Note: ( Refer to Note: *)

$

$

Not available

5

NUT M8

Note: ( Refer to Note: *)

$

$

Not available

6

Snapper 84012040

SCREW

$

$

Currently unavailable

7

Snapper 84011668

KEY, Drive Pulley

$

$

Currently unavailable

9

Snapper 84012038

HOOK

$

$

Currently unavailable

10

SCREW M8X25

Note: ( Refer to Note: *)

$

$

Not available

11

Snapper 84011374

COVER

$

$

Currently unavailable

12

Snapper 84011474

LEVER, THROTTLE

$

$

Currently unavailable

13

Snapper 84011475

LEVER, THROTTLE

$

$

Currently unavailable

14

SCREW M4X14

Note: ( Refer to Note: *)

$

$

Not available

15

NUT M4

Note: ( Refer to Note: *)

$

$

Not available

16

Snapper 84012041

PLATE, Reinforcement

$

$

Currently unavailable

17

Snapper 84012042

NUT

$

$

Currently unavailable

18

SCREW M5X16

Note: ( Refer to Note: *)

$

$

Not available

19

NUT M5

Note: ( Refer to Note: *)

$

$

Not available

20

Snapper 84011663

FLANGE

$

$

Currently unavailable

22

Snapper 84011421

TUBE

$

$

Currently unavailable

23

Snapper 84011420

TUBE

$

$

Currently unavailable

24

Snapper 84011391

HOLDER

$

$

Currently unavailable

25

SCREW M6X16

Note: ( Refer to Note: *)

$

$

Not available

26

Snapper 84011238

PULLEY

$

$

Currently unavailable

27

Snapper 84011402

FRAME

$

$

Currently unavailable
