RPX 102 (2692055-00) - Snapper 102cm Lawn Tractor, 7720 Series Briggs & Stratton Steering Group Parts Diagram

102cm Lawn Tractor, 7720 Series Briggs & Stratton

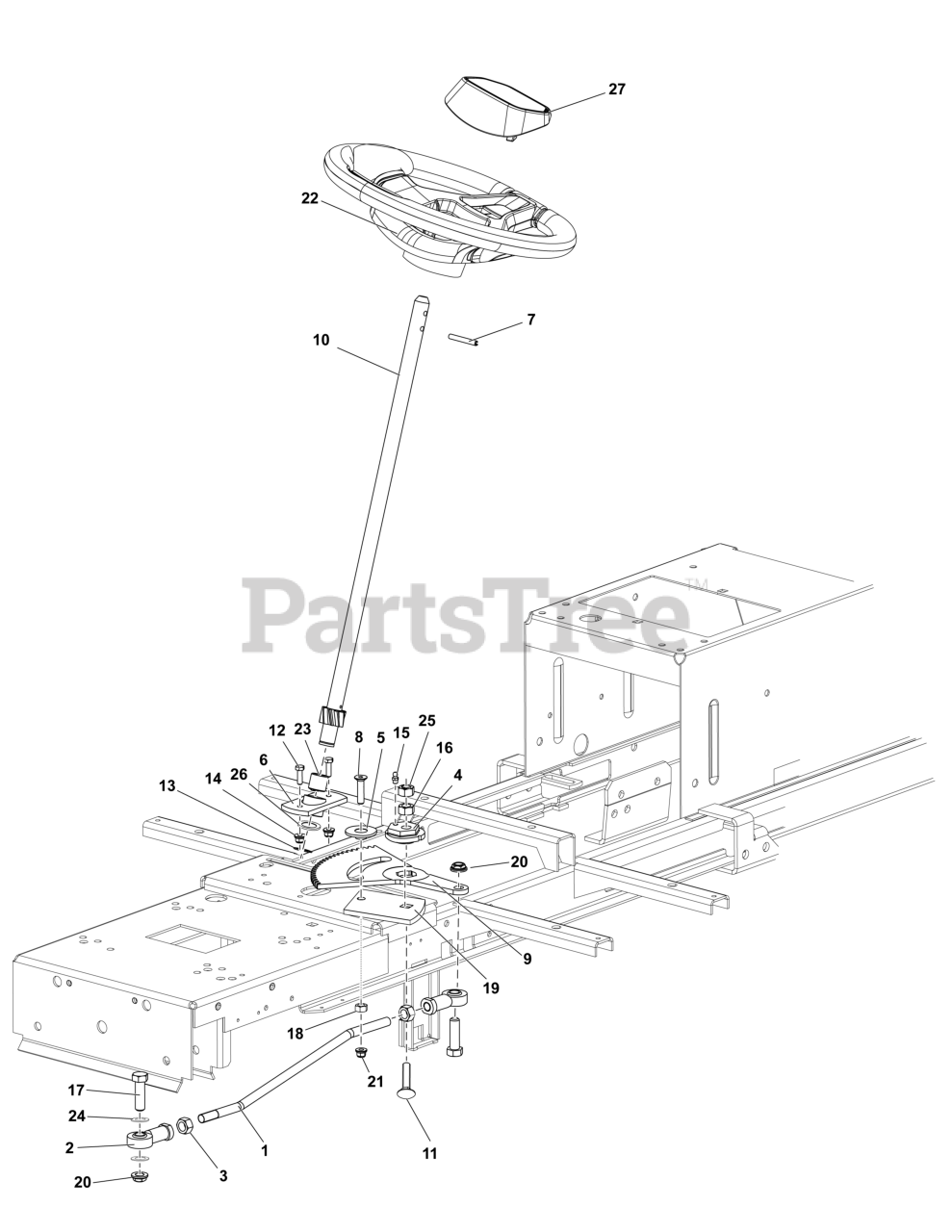

Steering Group Parts Diagram

  • Title

1

Snapper 84012062

ROD

$

$

Currently unavailable

2

Snapper 84012066

JOINT, Ball

$

$

Currently unavailable

3

NUT M12

Note: ( Refer to Note: *)

$

$

Not available

4

Snapper 84012067

ECCENTRIC

$

$

Currently unavailable

5

Snapper 84012068

SPACER

$

$

Currently unavailable

6

Snapper 84011578

BEARING

$

$

Currently unavailable

7

Snapper 84012156

PIN

$

$

Currently unavailable

8

SCREW M8X35

Note: ( Refer to Note: *)

$

$

Not available

9

Snapper 84011518

TOOTHED SEGMENT

$

$

Currently unavailable

10

Snapper 84011577

PINION

$

$

Currently unavailable

11

SCREW M12X55

Note: ( Refer to Note: *)

$

$

Not available

12

SCREW M6X20

Note: ( Refer to Note: *)

$

$

Not available

13

Snapper 84012072

CLIP

$

$

Currently unavailable

14

NUT M6

Note: ( Refer to Note: *)

$

$

Not available

15

Snapper 84012073

ZERK, Grease Fitting

$

$

Currently unavailable

16

NUT M12

Note: ( Refer to Note: *)

$

$

Not available

17

SCREW M12X40

Note: ( Refer to Note: *)

$

$

Not available

18

NUT M8

Note: ( Refer to Note: *)

$

$

Not available

19

WASHER

Note: ( Refer to Note: *)

$

$

Not available

20

NUT M12

Note: ( Refer to Note: *)

$

$

Not available

21

NUT M8

Note: ( Refer to Note: *)

$

$

Not available

22

Snapper 84011490

WHEEL, Steering

$

$

Currently unavailable

23

Snapper 84011479

BUSHING

$

$

Currently unavailable

24

WASHER 12

Note: ( Refer to Note: *)

$

$

Not available

25

Snapper 84011987

NUT

$

$

Currently unavailable

26

Snapper 84012076

WASHER

$

$

Currently unavailable

27

Snapper 84002250

CAP, Steering Wheel

$15.99

$

Usually ships in 2-12 days
