RPX 300 (2691292-01) - Snapper 107cm Lawn Tractor, 8270 Series Briggs & Stratton 107cm Mower Deck - Support Group Parts Diagram

107cm Lawn Tractor, 8270 Series Briggs & Stratton

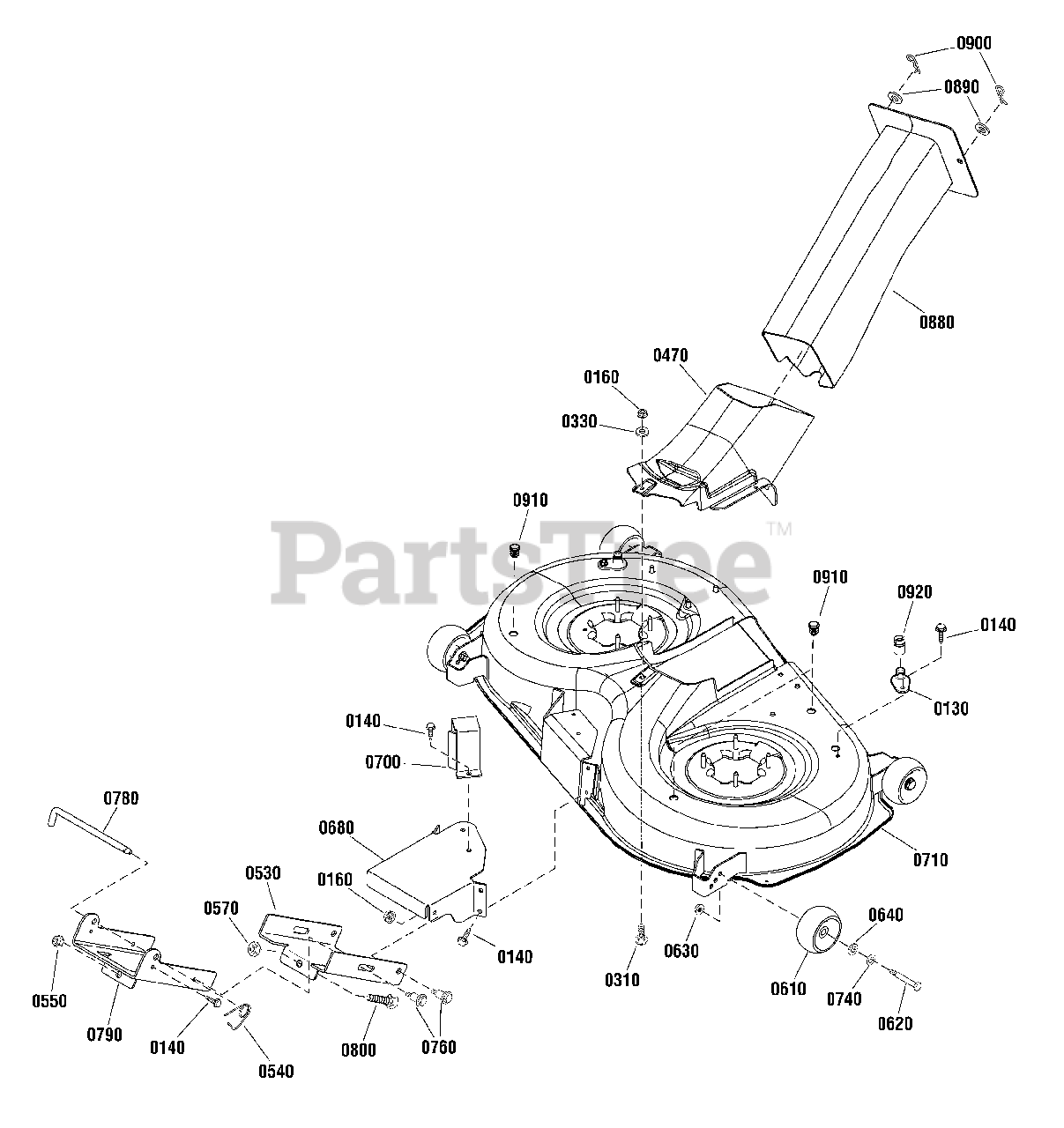

107cm Mower Deck - Support Group Parts Diagram

  • Title

0130

Snapper 1735716YP

ADAPTER, Washout Port
(Superseded to 1687721YP)

$13.99

$

Usually ships in 2-12 days

0

0140

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0160

Snapper 1931277SM

NUT, Flange, 5/16-18, GR5
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

0310

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0330

Snapper 1919326SM

WASHER, 5/16

$4.49

$

Usually ships in 2-12 days

0

0470

Snapper 885719YP

CENTER CAP

$193.99

$

Usually ships in 2-12 days

0

0530

Snapper 885734BMYP

BRACKET, Front Connector

$54.99

$

Usually ships in 2-12 days

0

0540

Snapper 2176012SM

RETAINER, Pin Spring
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

0550

Snapper 1960379SM

NUT, Hex Lock, 1/2-13

$5.49

$

In Stock, Qty 20+

0

0570

Snapper 1913744SM

NUT, Hex Jam, 1/2-13

$4.99

$

In Stock, Qty 20+

0

0610

Snapper 1714760SM

GAUGE WHEEL

$6.99

$

In Stock, Qty 20+

0

0620

Snapper 2108765SM

BOLT, Wheel, 3/8-16 x 2-3/4, 3/4" Thread

$6.49

$

In Stock, Qty 20+

0

0630

Snapper 703158

NUT, Hex Flange, ESNA, 3/8-16
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0640

Snapper 1960170SM

WASHER, 1/2
(Superseded to 703853)

$5.49

$

In Stock, Qty 20+

0

0680

Snapper 885727BMYP

SUPPORT, Front

$84.99

$

Usually ships in 2-12 days

0

0700

Snapper 885728BMYP

BRACKET, Front Upstop

$23.99

$

Usually ships in 2-12 days

0

0710

Snapper 885827BMYP

KIT, Mower Deck 107cm, Crow Black

$505.99

$

Usually ships in 2-12 days

0

0740

Snapper 0020X3MA

WASHER, Spring, 1/2

$4.49

$

Usually ships in 2-12 days

0

0760

Snapper 1732426SM

BOLT, Shoulder, 5/16-18 x 1/2

$4.49

$

In Stock, Qty 9

0

0780

Snapper 1731414SM

ROD, Latch

$15.99

$

In Stock, only 3 left!

0

0790

Snapper 885699BMYP

BRACKET, Front Hanger

$84.99

$

In Stock, only 1 left!

0

0800

Snapper 885710YP

BOLT, 1/2 x 3

$5.49

$

Usually ships in 2-12 days

0

0880

Snapper 885769YP

CHUTE
(Superseded to 885461YP)

$217.99

$

Usually ships in 2-12 days

0

0890

Snapper 703853

WASHER, 1/2

$5.49

$

In Stock, Qty 20+

0

0900

Snapper 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0

0910

Snapper 7046780SM

PLUG, Hole, .44" OD

$4.99

$

Usually ships in 2-12 days

0

0920

Snapper 1756246YP

CONNECTOR, Washout Port

$16.99

$

In Stock, only 1 left!

0
