RPX-65011 - Subaru Robin Submersible Pump 4200 Pump Parts Diagram

Submersible Pump

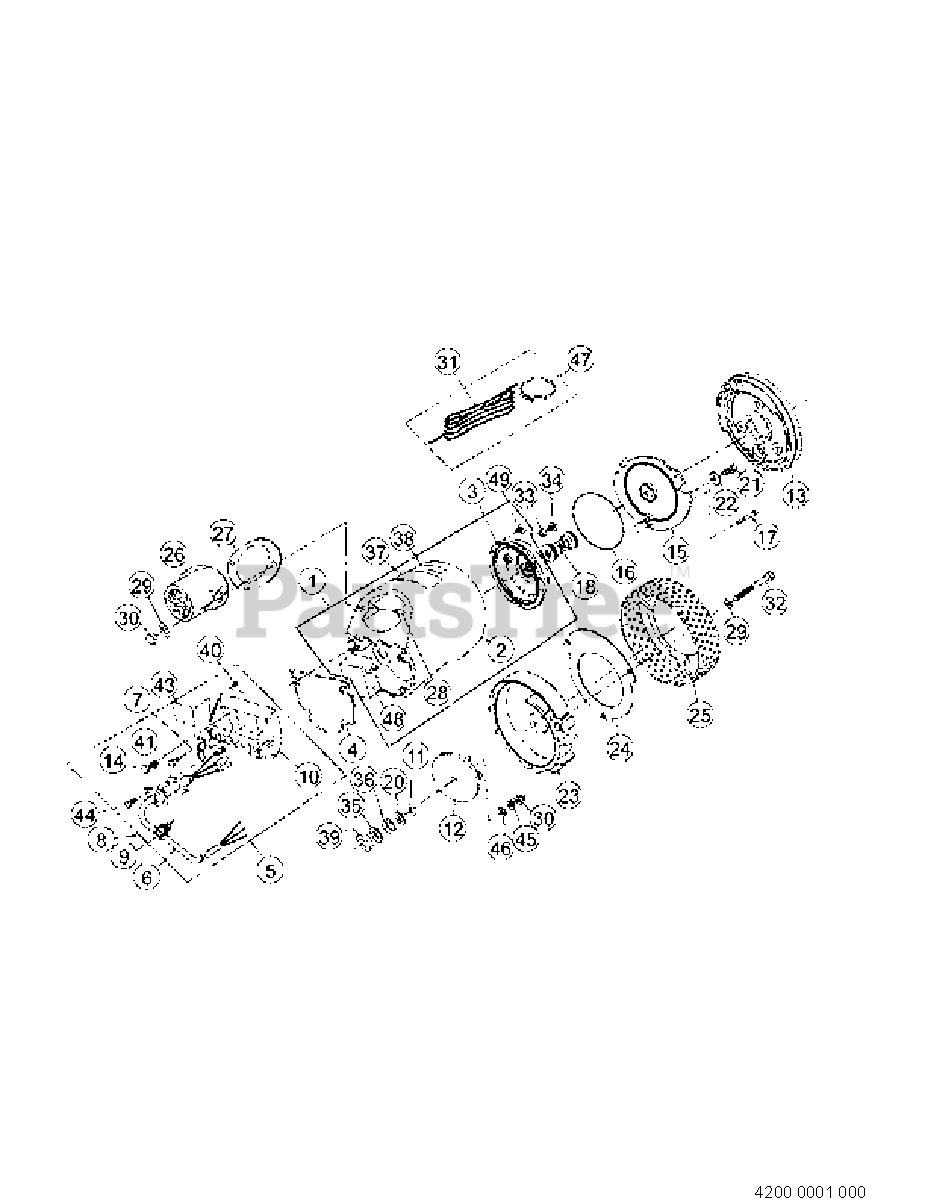

4200 Pump Parts Diagram

  • Title

2

0430399

FRAME

$

$

Not available

3

0430267

BRACKET

$

$

Not available

4

0430284

HEAD GASKET

$

$

Not available

6

0430308

POWER CORD

$

$

Not available

7

0438066

CHAIN AY

$

$

Not available

8

0390031

CORD SUPPORTER

$

$

Not available

9

0260018

CORD BAND

$

$

Not available

10

0430404

HANDLE

$

$

Not available

11

0430441

ADJUSTING WASHER

$

$

Not available

12

0430280

IMPELLER

$

$

Not available

13

0430273

BLACK LINER

$

$

Not available

14

743605031

HEX BOLT

$

$

Not available

15

0430271

FRONT COVER

$

$

Not available

16

889955125

O RING

$

$

Not available

17

734505037

HEX SOCKET BOLT

$

$

Not available

18

Subaru Robin 0430243

MECHANICAL SEAL

$

$

Currently unavailable

20

0390025

ADJUSTING WASHER

$

$

Not available

21

0390037

HEX SOCKET BOLT

$

$

Not available

22

854255010

SEAL WASHER

$

$

Not available

23

0430274

CASING

$

$

Not available

24

0430269

SUCTION FLANGE

$

$

Not available

25

0430270

STRAINER

$

$

Not available

26

0430306

DELIVERY FLANGE

$

$

Not available

27

0430383

DELIVERY FLANGE GASKET

$

$

Not available

28

0430290

STUD BOLT

$

$

Not available

29

846005008

WASHER

$

$

Not available

30

835305008

HEX CAP NUT

$

$

Not available

31

0390101

ROPE

$

$

Not available

32

735705162

HEX BOLT

$

$

Not available

33

0340142

SEAL RING

$

$

Not available

34

0340153

SCREW

$

$

Not available

35

0340277

THRUST WASHER

$

$

Not available

36

895154014

OIL SEAL

$

$

Not available

37

LABEL

$

$

Not available

38

CAUTION LABEL

$

$

Not available

39

0430299

THRUST GASKET

$

$

Not available

40

707820074

SCREW

$

$

Not available

41

703305100

SCREW

$

$

Not available

42

827305005

HEX NUT

Note: NOT ON DRAWING

$

$

Not available

43

LABEL

$

$

Not available

44

703305102

SCREW

$

$

Not available

45

845305008

TOOTHED WASHER

$

$

Not available

46

846505008

WASHER

$

$

Not available

47

940019060

HOSE BAND

$

$

Not available

48

Subaru Robin 0430392

CONDESER

$

$

Currently unavailable

49

734605035

HEX BOLT

$

$

Not available
