RR-46 - Toro Rear-Engine Riding Mower (1966)

Rear-Engine Riding Mower

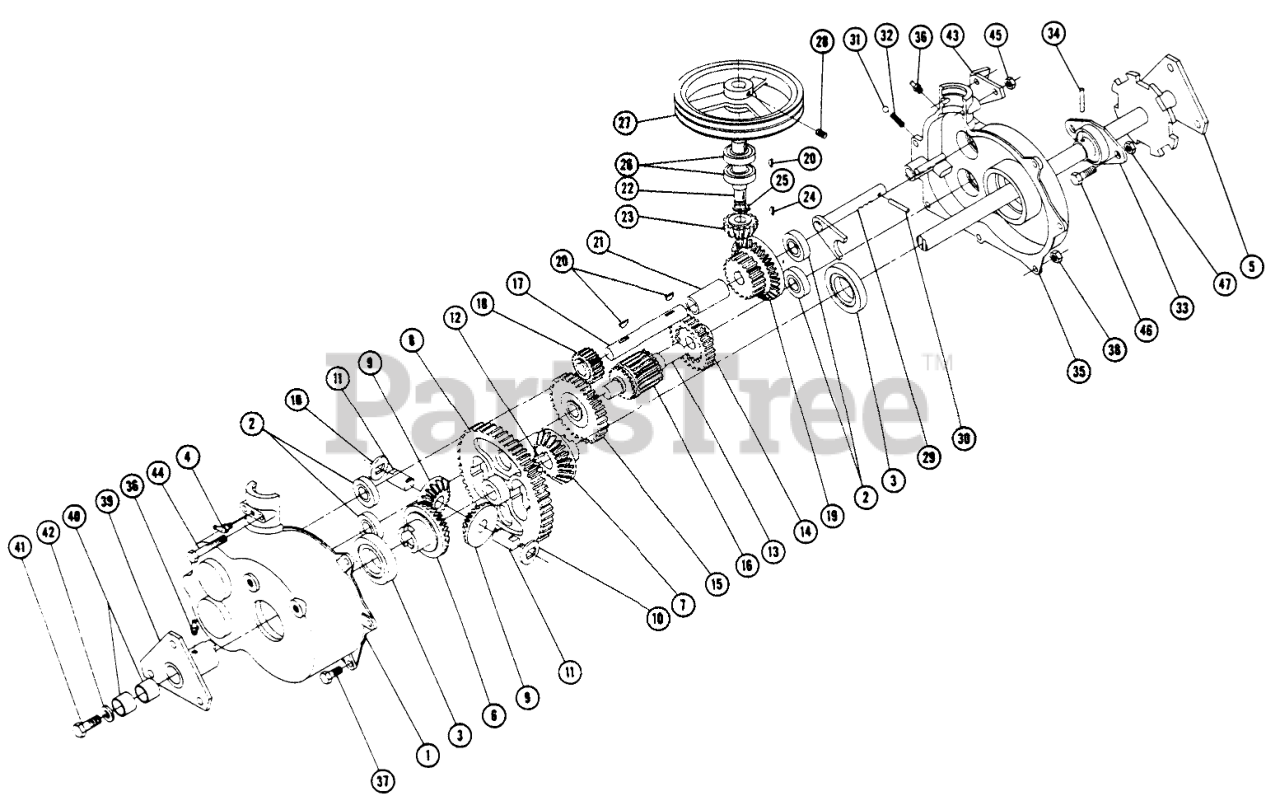

RR-46 - Toro Rear-Engine Riding Mower (1966) > Parts Diagrams (2) > RR-46 TRANSMISSION NO. 5050 PARTS LIST

  • Title
5738

1

GEAR CASE

Part# 5738

OEM Warranty Repair Part for Toro

Not available

5740

2

Bearing-Ball 58 I.D.

Part# 5740 (Superseded to 7060)

OEM Warranty Repair Part for Toro

Not available

5741

3

Ball Bearing 1 1/4 I.D.

Part# 5741

OEM Warranty Repair Part for Toro

Not available

1481

4

FITTING-GREASE

Part# 1481

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.46

5742

5

Ass-y. Axle

Part# 5742

OEM Warranty Repair Part for Toro

Currently unavailable

6328

6

4XC6475 GIS ROTARY

Part# 6328

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.23

5747

7

Gear-Axle L.H.

Part# 5747

OEM Warranty Repair Part for Toro

Not available

5745

8

GEAR SCHFR GR

Part# 5745

OEM Warranty Repair Part for Toro

Not available

5748

9

Gear-Diff Pinion

Part# 5748

OEM Warranty Repair Part for Toro

Not available

5749

10

Washer-Thrust

Part# 5749

OEM Warranty Repair Part for Toro

Not available

5750

11

Pin-Diff.

Part# 5750

OEM Warranty Repair Part for Toro

Not available

937017

12

WOODRUFF KEY

Part# 937017

OEM Warranty Repair Part for Toro

Not available

5751

13

Shaft-Sliding Gear

Part# 5751

OEM Warranty Repair Part for Toro

Not available

5752

14

Gear-High

Part# 5752 (Superseded to 105174)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $209.88

5755

15

Gear-Low

Part# 5755

OEM Warranty Repair Part for Toro

Not available

5758

16

Gear-Sliding

Part# 5758

OEM Warranty Repair Part for Toro

Not available

5760

17

Shaft-Hi Low Pinion

Part# 5760

OEM Warranty Repair Part for Toro

Currently unavailable

5761

18

Pinion-Low

Part# 5761

OEM Warranty Repair Part for Toro

Not available

5762

19

Gear-Combination

Part# 5762

OEM Warranty Repair Part for Toro

Not available

937014

20

Key

Part# 937014 (Superseded to 3257-5)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.90

5763

21

Spacer

Part# 5763

OEM Warranty Repair Part for Toro

Currently unavailable

5764

22

Shaft Input

Part# 5764

OEM Warranty Repair Part for Toro

Currently unavailable

5765

23

Gear-Pinion-Input

Part# 5765

OEM Warranty Repair Part for Toro

Not available

937007

24

WOODRUFF KEY

Part# 937007

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.35

936117

25

Snap Ring

Part# 936117 (Superseded to 32151-84)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.39

6192

26

Ball Bearing 5/8 I.D.

Part# 6192

OEM Warranty Repair Part for Toro

Not available

5766

27

Pulley

Part# 5766

OEM Warranty Repair Part for Toro

Not available

909850-6

28

Set Screw 1/4-20 x 3/8

Part# 909850-6

OEM Warranty Repair Part for Toro

Currently unavailable

5767

29

Shift Fork

Part# 5767

OEM Warranty Repair Part for Toro

Not available

933190

30

PIN-SPIROL

Part# 933190

OEM Warranty Repair Part for Toro

Not available

3517

31

BALL-DETENT

Part# 3517

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.35

6188

32

Spring

Part# 6188

OEM Warranty Repair Part for Toro

Not available

5770

33

Bearing-Flanged Ball

Part# 5770 (Superseded to 110115)

OEM Warranty Repair Part for Toro

Not available

933171

34

Spirol Pin

Part# 933171 (Superseded to 32121-94)

OEM Warranty Repair Part for Toro

Not available

5739

35

GEAR CASE

Part# 5739

OEM Warranty Repair Part for Toro

Not available

1030

36

Zerk

Part# 1030

OEM Warranty Repair Part for Toro

Not available

908018-4

37

Bolt, 5/16-18 X 7/8

Part# 908018-4

OEM Warranty Repair Part for Toro

Currently unavailable

915662-4

38

Nut 5/16-18

Part# 915662-4

OEM Warranty Repair Part for Toro

Currently unavailable

5771

39

Ass-y Hub & Flange

Part# 5771

OEM Warranty Repair Part for Toro

Currently unavailable

1504

40

BUSHING-BRONZE

Part# 1504

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $29.69

908032-6

41

Bolt 3/8-16 x 3/4 Hex

Part# 908032-6

OEM Warranty Repair Part for Toro

Currently unavailable

2844

42

WASHER

Part# 2844

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.23

5823

43

Bracket-Shift Rod

Part# 5823

OEM Warranty Repair Part for Toro

Currently unavailable

908025-4

44

Bolt Hex 5/6-18 X 2-1/2

Part# 908025-4

OEM Warranty Repair Part for Toro

Currently unavailable

915112-6

45

Nut-Nylok

Part# 915112-6

OEM Warranty Repair Part for Toro

Currently unavailable

908031-4

46

Bolt Hex 3/8-16 x 5/8

Part# 908031-4

OEM Warranty Repair Part for Toro

Currently unavailable

915113-6

47

Nut

Part# 915113-6

OEM Warranty Repair Part for Toro

Currently unavailable
