RRT 12L36 A - Electrolux/AYP Lawn Tractor HOOD Parts Diagram

Lawn Tractor

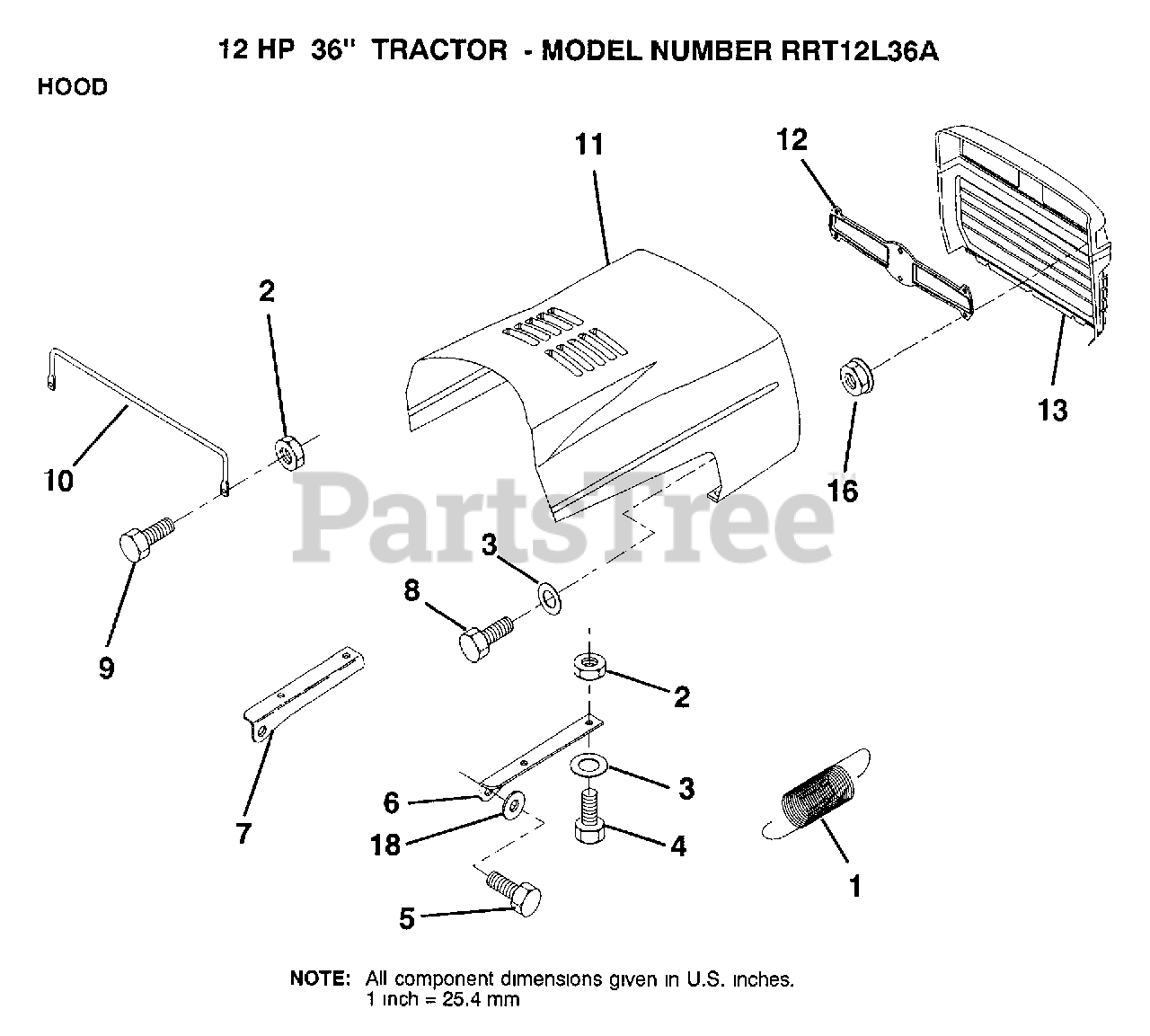

HOOD Parts Diagram

  • Title

1

Electrolux/AYP 124657X

EXT SPRING
(Superseded to 532124657)

$

$

Not available

2

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

3

Electrolux/AYP 19091016

WASHER
(Superseded to 819091016)

$

$

Not available

4

Electrolux/AYP 74780410

BOLT
(Superseded to 874780410)

$

$

Not available

5

Electrolux/AYP 126675X

SUB= 139888
(Superseded to 532139888)

$4.99

$

In Stock, Qty 6

0

6

Electrolux/AYP 122549X

BRKT HOOD RH
(Superseded to 532122549)

$

$

Not available

7

Electrolux/AYP 122548X

BRKT HOOD LH
(Superseded to 532122548)

$

$

Not available

8

Electrolux/AYP 17411310

SUB= 17521312

$

$

Not available

9

Electrolux/AYP 74780412

SUB= 74780414
(Superseded to 874780412)

$

$

Not available

10

Electrolux/AYP 123693X

"BRACE,HOOD"
(Superseded to 532123693)

$

$

Not available

11

Electrolux/AYP 132918X505

HOOD
(Superseded to 582804301)

$

$

Not available

12

Electrolux/AYP 127178

LENS T

$

$

Not available

13

Electrolux/AYP 134232X428

GRILL (BLACK)
(Superseded to 574965301)

$

$

Not available

16

Electrolux/AYP 124346X

NUT
(Superseded to 532124346)

$9.49

$

In Stock, only 1 left!

0

18

Electrolux/AYP 19111116

WASHER
(Superseded to 596204101)

$3.49

$

In Stock, Qty 14

0
