RS-2 - Scag Riding Sulky (SN: 60000 - 69999) RIDING SULKY Parts Diagram

Riding Sulky

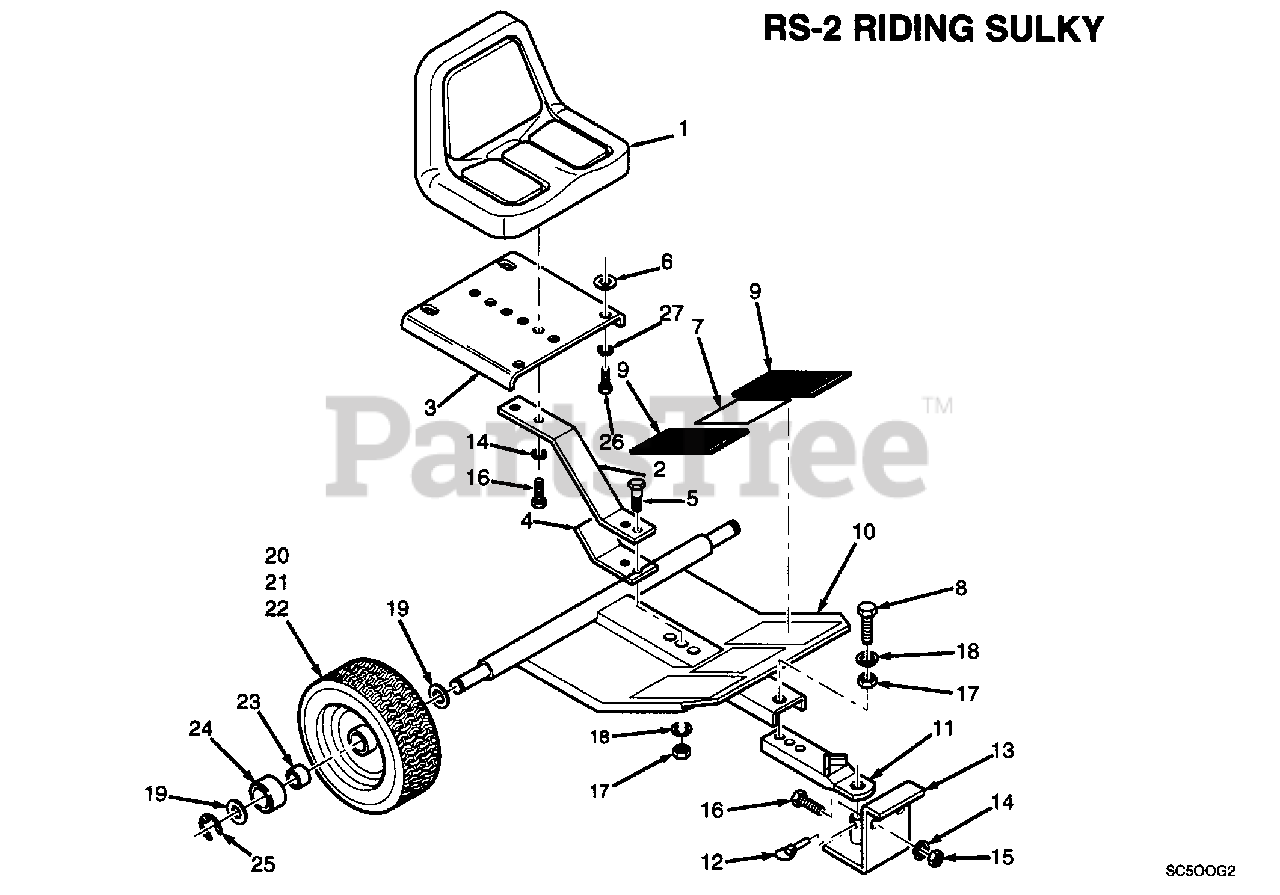

RIDING SULKY Parts Diagram

  • Title

1

Scag 48592-01

SEAT ASSEMBLY
(Superseded to 482027)

$651.99

$

Usually ships in 2-12 days

0

2

Scag 42321

SEAT SPRING

$115.99

$

Usually ships in 2-12 days

0

3

Scag 45210

SEAT MOUNTING PLATE

$125.99

$

In Stock, only 1 left!

0

?4

Scag 42322

SEAT SPRING SUPPORT

$

$

Not available

5

Scag 04001-58

HEX HEAD BOLT 7/16-14 X 1-1/2"

$0.99

$

Usually ships in 2-12 days

0

6

Scag 04041-11

WASHER 3/8 1-1/2" OD

$1.99

$

In Stock, Qty 20+

0

7

Scag 48261

DECAL
(Superseded to 482392)

$34.99

$

In Stock, only 2 left!

0

8

Scag 04001-27

HEX HEAD BOLT 7/16-14 X 1"

$0.99

$

In Stock, Qty 6

0

9

Scag 48262

PAD, NON SKID

$15.99

$

Usually ships in 2-12 days

0

10

Scag 45123

FRAME WELDMENT

$

$

Not available

11

Scag 45124

HITCH EXTENSION WELDMENT

$155.99

$

Usually ships in 2-12 days

0

12

Scag 04066-01

QUICK PIN

$8.99

$

Usually ships in 2-12 days

0

13

Scag 45125

HITCH BRACKET

$134.99

$

Usually ships in 2-12 days

0

14

Scag 04030-04

LOCKWASHER 3/8" SPRING

$0.99

$

In Stock, Qty 20+

0

15

Scag 04020-04

HEX NUT 3/8-16

$0.99

$

In Stock, Qty 20+

0

16

Scag 04001-19

HEX HEAD BOLT 3/8-16 X 1"

$0.99

$

In Stock, Qty 20+

0

17

Scag 04020-05

HEX NUT 7/16-14

$0.99

$

Usually ships in 2-12 days

0

18

Scag 04030-05

LOCKWASHER 7/16" SPRING

$0.99

$

In Stock, Qty 14

0

19

Scag 04042-05

WASHER 1" ID

$0.99

$

In Stock, Qty 20+

0

20

Scag 48260

WHEEL ASSEMBLY(INCL. 21-24)

$235.99

$

Usually ships in 2-12 days

0

21

Scag 48260-02

TIRE ONLY
(Superseded to 481909)

$195.99

$

Usually ships in 2-12 days

0

22

Scag 48260-03

RIM ONLY
(Superseded to 481910)

$176.99

$

Usually ships in 2-12 days

0

23

Scag 48260-04

BEARING ONLY
(Superseded to 481911)

$23.99

$

Usually ships in 2-12 days

0

24

Scag 48260-05

RETAINING CAP
(Superseded to 481912)

$4.99

$

Usually ships in 2-12 days

0

25

Scag 04050-08

RETAINING RING 1.0 EXT. "E"

$0.99

$

In Stock, Qty 20+

0

26

Scag 04001-08

HEX HEAD BOLT 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

27

Scag 04030-03

LOCKWASHER 5/16"

$0.99

$

In Stock, Qty 20+

0
