RS 3 (UT-01584) - Homelite Pump Pump Parts Diagram

Pump

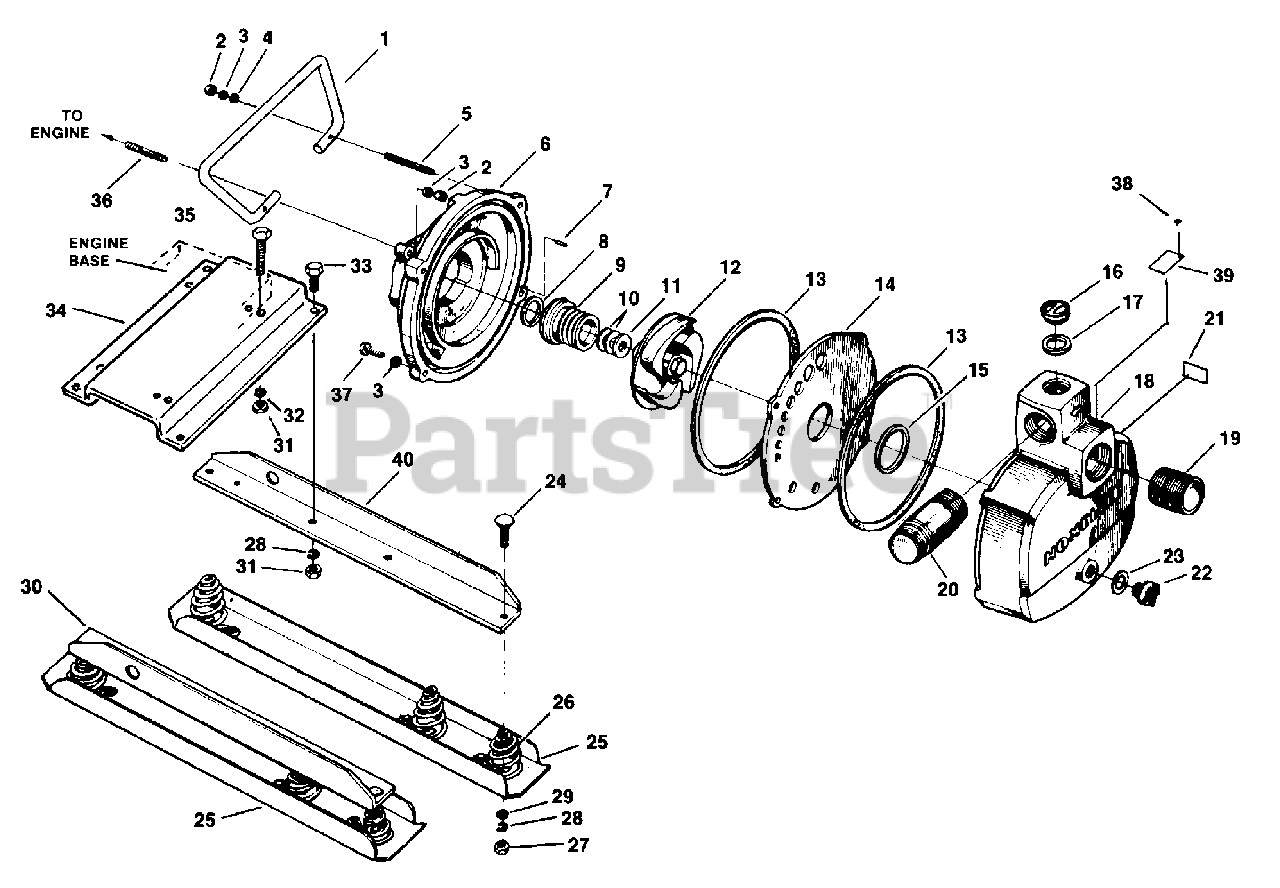

Pump Parts Diagram

  • Title

1

Homelite 496031

HANDLE

$

$

Currently unavailable

2

Homelite 81043

NUT- 3/8-16

$

$

Not available

3

Homelite 83018

WASHER- Lock, 3/8"

$

$

Not available

4

Homelite 84010

WASHER- Flat, 3/8"
(Superseded to PS84010)

$

$

Not available

5

Homelite 54361

STUD

$

$

Not available

6

Homelite 629802

HOUSING- Impeller
(Superseded to 629802A)

$

$

Not available

7

Homelite 67908

PIN- Coiled spring

$

$

Not available

8

Homelite 62688

SLINGER
(Superseded to UP06433)

$

$

Not available

9

Homelite 627131

SEAL ASSEMBLY
(Superseded to 627131A)

$

$

Not available

10

Homelite 75909

SHIM- Seal (.010")
(Superseded to UP06452)

$

$

Not available

Homelite 75910

SHIM- Seal (.015")

$

$

Not available

11

Homelite 62408

SPACER

$

$

Not available

12

Homelite 540673

IMPELLER

$

$

Not available

13

Homelite 62927

GASKET- Large
(Superseded to UP07079)

$35.99

$

Usually ships in 3-7 days

0

14

Homelite 629262

PLATE- Wear

$

$

Currently unavailable

15

Homelite 62928

GASKET- Small
(Superseded to UP07079)

$17.99

$

Usually ships in 3-7 days

0

16

Homelite A43971

PLUG- Filler

$

$

Not available

17

Homelite 18108

GASKET

$

$

Not available

18

Homelite A50846

HOUSING- End
(Superseded to A50846A)

Note: Includes items 19-21

$

$

Not available

19

Homelite 743431

NIPPLE- Suction

$

$

Not available

20

Homelite 542891

FITTING- Pipe (discharge)

$

$

Not available

21

Homelite 62315

DECAL- Fill pump

$

$

Not available

22

Homelite A43896

PLUG- Drain
(Superseded to UP07092)

$

$

Currently unavailable

23

Homelite 59910

GASKET

$

$

Not available

24

Homelite 80085

SCREW- Hex hd, 5/16-18 x 1"

$2.49

$

Usually ships in 3-7 days

0

25

Homelite A62917

SKID ASSEMBLY

Note: Includes item 25

$

$

Not available

26

Homelite 25407

SPRING

$

$

Not available

Homelite 85025

RIVET (Not shown)

$

$

Not available

27

Homelite 81018

NUT- Hex, 5/16-18

$

$

Not available

28

Homelite 83003

WASHER- Lock, 5/16"
(Superseded to UP03791)

$

$

Not available

29

Homelite 84046

WASHER- Flat, 5/16"

$

$

Not available

30

Homelite 626621A

ANGLE- Base (right)
(Superseded to UP06430)

$148.99

$

Usually ships in 3-7 days

0

31

Homelite 81162

NUT- Hex, 5/16-18

$

$

Not available

32

Homelite 83002

WASHER- Lock 5/16"
(Superseded to 653671)

$5.49

$

Usually ships in 3-7 days

0

33

Homelite 80695

SCREW- Hex, 5/16-18 x 3/4"
(Superseded to UP03381)

$

$

Not available

34

Homelite 421211A

BRACKET- Engine mounting
(Superseded to UP08577)

$

$

Not available

35

Homelite 80288

SCREW- Hex, 5/16-18 x 13/4"
(Superseded to UP03388)

$

$

Not available

36

Homelite 30679

STUD

$

$

Not available

37

Homelite 800973

BOLT- 3/8-16 x 1 1/2"
(Superseded to UP07178)

$

$

Not available

38

Homelite 49266

TACK- Metal

$9.49

$

Usually ships in 3-7 days

0

39

Homelite 54661

PLATE- Warning

$

$

Not available

40

Homelite 626611A

ANGLE- Base (Left)
(Superseded to UP06886)

$

$

Not available

Homelite 30129

STRAINER
(Superseded to UP03441)

$

$

Not available

Homelite 624501

HOLDER- Spanner wrench (Not shown)

$

$

Not available

Homelite 20024B

WRENCH- Spanner (Not shown)
(Superseded to UP06389)

$

$

Not available

Homelite 48481

SUCKER- Puddle

$

$

Not available

Homelite 627132

SEAL- (For Solvents)

$

$

Currently unavailable

Homelite A48374

PUMP OVERHAUL KIT

$

$

Currently unavailable

Homelite 23475

PAINT- Red, spray (12 oz. can)

$

$

Not available
