RS 51 - Jonsered String Trimmer (1998-03) IGNITION SYSTEM Parts Diagram

String Trimmer

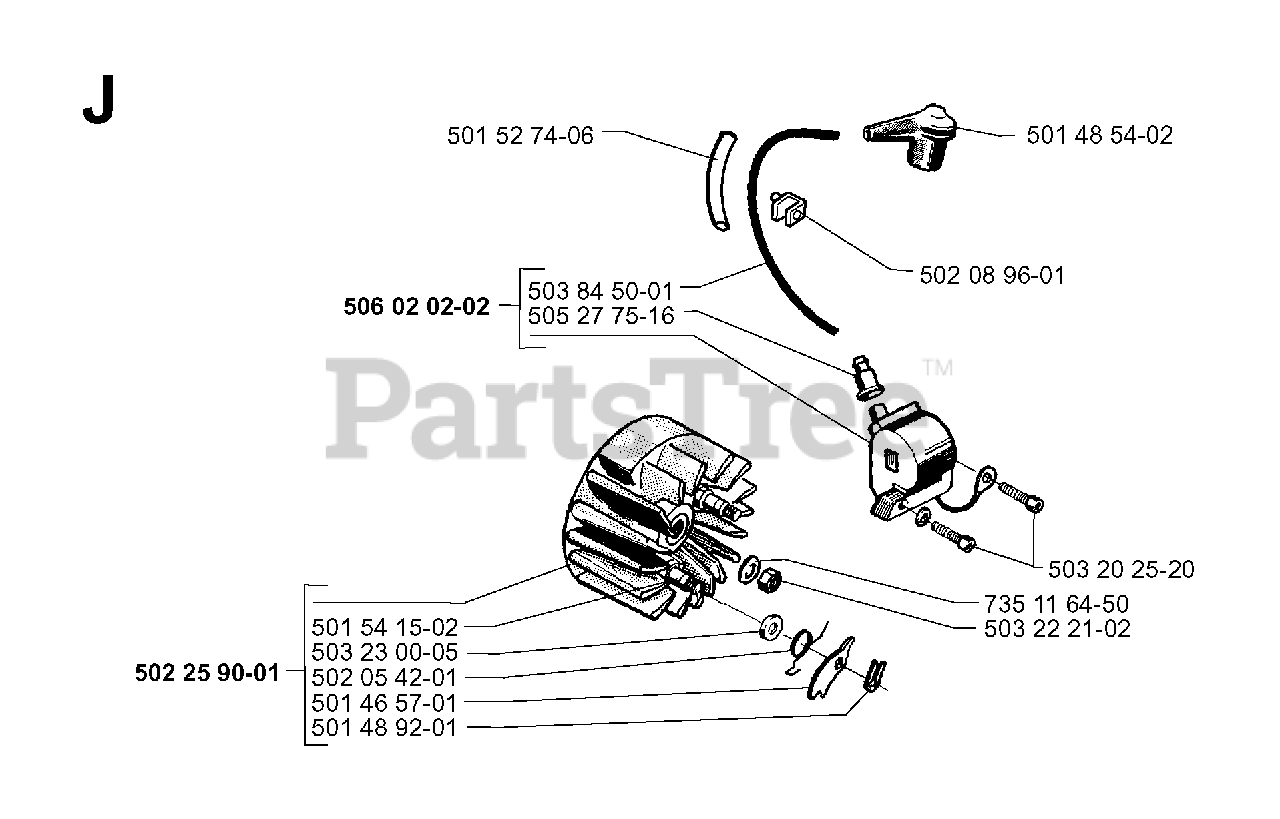

IGNITION SYSTEM Parts Diagram

  • Title

5015274-06

Jonsered 501527406

HOSE

$5.99

$

Usually ships in 3-10 days

0

5060202-02

Jonsered 506020202

REPL BY 503 90 15-01
(Superseded to 544018701)

$

$

Not available

5022590-01

Jonsered 502259001

FLYWHEEL

$

$

Not available

5014892-01

Jonsered 501489201

RETAINING RING

$6.99

$

In Stock, only 1 left!

0

5014657-01

Jonsered 501465701

PAWL

$

$

Not available

5020542-01

Jonsered 502054201

SPRING

$

$

Not available

5032300-05

Jonsered 503230005

WASHER 6.5X11

$4.99

$

In Stock, only 1 left!

0

5015415-02

Jonsered 501541502

DRIVE PIN
(Superseded to 501541503)

$

$

Not available

5052775-16

Jonsered 505277516

INSULATING CAP

$

$

Not available

5038450-01

Jonsered 503845001

IGNITION CABLE
(Superseded to 501531601)

$

$

Not available

7351164-50

Jonsered 735116450

SPRING WASHER 8.4X15

$3.49

$

In Stock, only 1 left!

0

5032221-02

Jonsered 503222102

LOCK NUT M8

$3.49

$

Usually ships in 3-10 days

0

5032025-20

Jonsered 503202520

SCREW

$3.49

$

In Stock, Qty 8

0

5020896-01

Jonsered 502089601

CABLE SOCKET

$

$

Not available

5014854-02

Jonsered 501485402

SPARK PLUG CONN. KIT

$15.99

$

In Stock, Qty 10

0
