RS 52 - Jonsered String Trimmer (2002-08) SHAFT Parts Diagram

String Trimmer

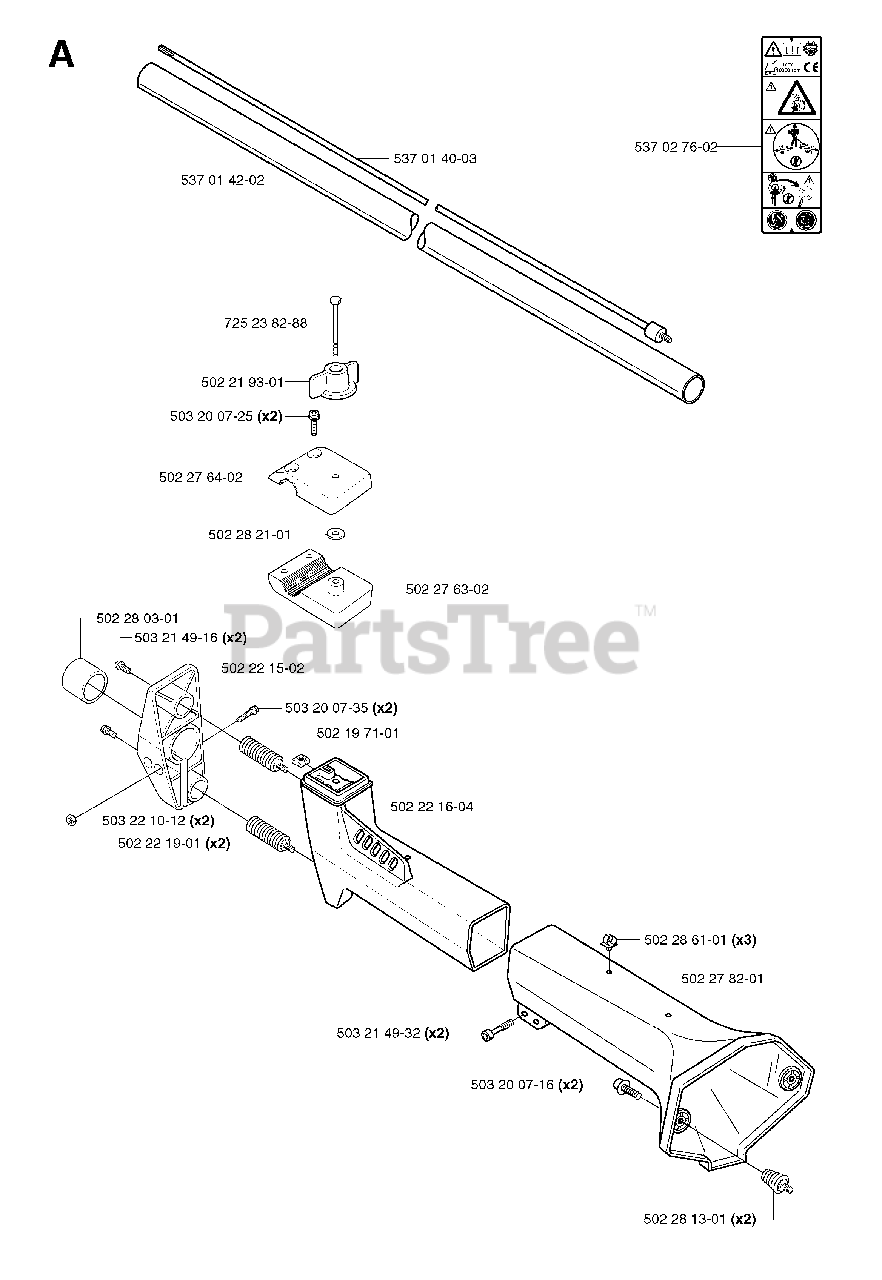

SHAFT Parts Diagram

  • Title

5370142-02

Jonsered 537014202

TUBE

$

$

Not available

7252382-88

Jonsered 725238288

No Description Available

$

$

Not available

5022193-01

Jonsered 502219301

KNOB

$8.99

$

In Stock, Qty 5

0

5032007-25

Jonsered 503200725

SCREW

$4.99

$

In Stock, Qty 11

0

5022764-02

Jonsered 502276402

CLAMP

$

$

Not available

5022821-01

Jonsered 502282101

WASHER

$4.99

$

Usually ships in 3-10 days

0

5022803-01

Jonsered 502280301

BUSHING

$

$

Not available

5032149-16

Jonsered 503214916

SCREW
(Superseded to 503214972)

$10.99

$

In Stock, Qty 20+

0

5032210-12

Jonsered 503221012

NUT

$5.99

$

In Stock, Qty 7

0

5022219-01

Jonsered 502221901

SPRING

$

$

Not available

5032149-32

Jonsered 503214932

SCREW
(Superseded to 503210632)

$3.49

$

Usually ships in 3-10 days

0

5032007-16

Jonsered 503200716

SCREW

$4.99

$

In Stock, only 2 left!

0

5022813-01

Jonsered 502281301

ABSORBER
(Superseded to 537342201)

$

$

Not available

5022782-01

Jonsered 502278201

SEAT FOR TUBE

$

$

Not available

5022861-01

Jonsered 502286101

CLAMP

$6.99

$

Usually ships in 3-10 days

0

5022216-04

Jonsered 502221604

SUPPORT

$

$

Not available

5021971-01

Jonsered 502197101

NUT

$8.99

$

In Stock, only 2 left!

0

5032007-35

Jonsered 503200735

%SCREW
(Superseded to 503200782)

$6.99

$

In Stock, only 3 left!

0

5022215-02

Jonsered 502221502

HOLDER

$23.07

$

Usually ships in 3-10 days

0

5022763-02

Jonsered 502276302

CLAMP

$

$

Not available

5370140-03

Jonsered 537014003

SHAFT

$

$

Not available

5370276-02

Jonsered 537027602

WARNING LABEL
(Superseded to 537294706)

$4.99

$

Usually ships in 3-10 days

0
