RS 75 S - Shindaiwa Broadcast Spreader, Stainless Steel Broadcast Spreader Parts Diagram

Broadcast Spreader, Stainless Steel

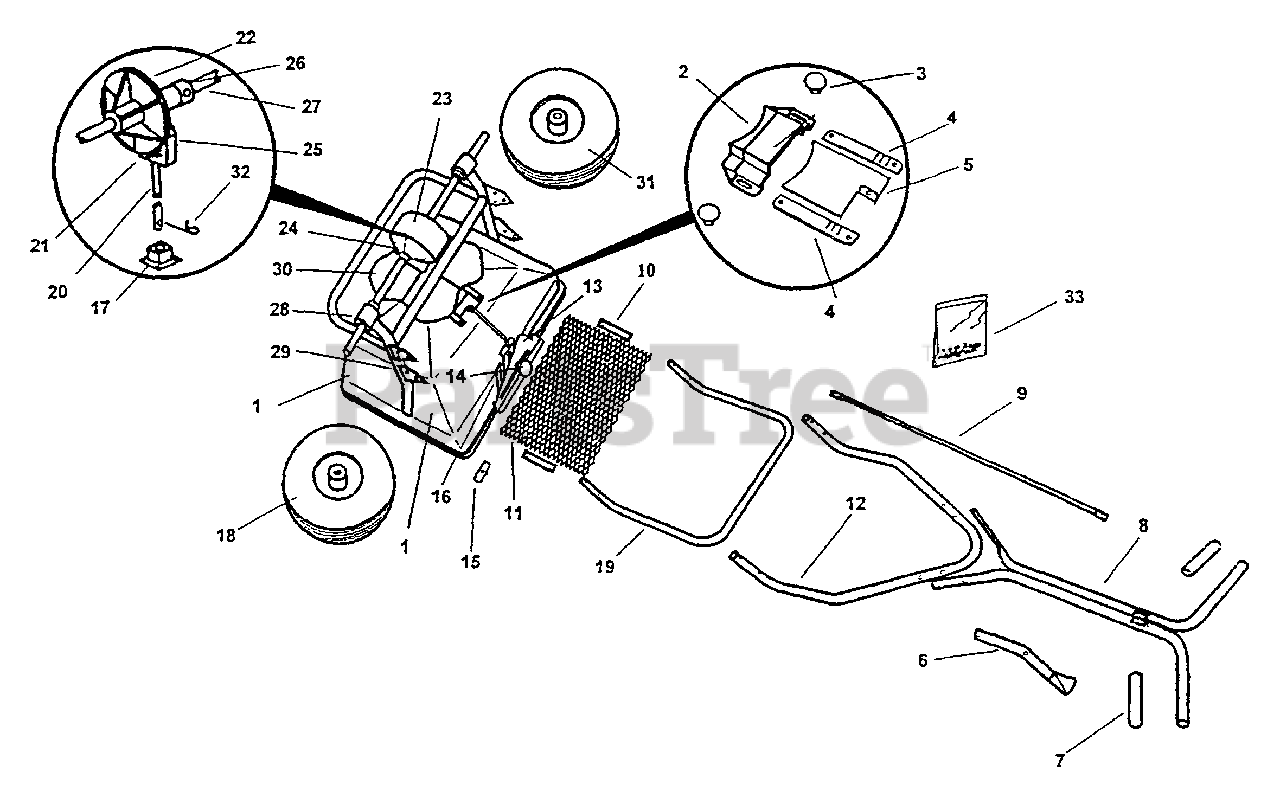

Broadcast Spreader Parts Diagram

  • Title

1

Echo 14610-2

HOPPER ASSY
(Superseded to Discontinued)

$

$

Not available

?1A

Echo 14604

HOPPER
(Superseded to 14604-1)

Note: Parts included in Hopper Assembly.

$148.99

$

Usually ships in 2-4 days

0

2

Echo 14623

CHUTE, DISCHARGE
(Superseded to 15144)

Note: Parts included in Hopper Assembly.

$

$

Not available

3

Echo 14001

DISCHARGE CHUTE KNOB
(Superseded to P14001)

Note: Parts included in Hopper Assembly.

$

$

Not available

4

UNKNOWN

$

$

Not available

?4A

Echo 14622

GUIDE, SHUTOFF PLATE - RIGHT
(Superseded to 15144)

Note: Parts included in Hopper Assembly.

$

$

Not available

?4B

Echo 14621

GUIDE, SHUTOFF PLATE - LEFT
(Superseded to 15144)

Note: Parts included in Hopper Assembly.

$

$

Not available

5

Echo 13353

PLATE, SHUTOFF
(Superseded to P13353)

Note: Parts included in Hopper Assembly.

$40.99

$

Usually ships in 2-4 days

0

6

Echo 14047

HANDLE LEVER ASSY

$62.99

$

Usually ships in 2-4 days

0

7

Echo 14870

GRIP, HANDLE
(Superseded to P14870)

$25.99

$

Usually ships in 2-4 days

0

8

Echo 14825-1

HANDLE - UPPER

$116.99

$

Usually ships in 2-4 days

0

9

Echo 14871

TUBE, CONTROL
(Superseded to 14916)

$37.99

$

Usually ships in 2-4 days

0

10

Echo 14022

CLIP
(Superseded to P14022)

$13.99

$

In Stock, Qty 8

0

11

Echo 14603

SCREEN, HOPPER
(Superseded to P14603-04)

$56.99

$

Usually ships in 2-4 days

0

12

Echo 15011-1

BRACE, HANDLE
(Superseded to Discontinued)

$

$

Not available

13

Echo 14932

RATE PLATE

Note: Parts included in Hopper Assembly.

$

$

Currently unavailable

14

Echo 12704

DIAL, RATE CONTROL
(Superseded to P12704)

Note: Parts included in Hopper Assembly.

$6.99

$

Usually ships in 2-4 days

0

15

Echo 12708

POINTER
(Superseded to P12708)

Note: Parts included in Hopper Assembly.

$4.99

$

Usually ships in 2-4 days

0

16

Echo 12702-1

SPRING HOUSING ASSY
(Superseded to 12702-2)

Note: Parts included in Hopper Assembly.

$51.99

$

Usually ships in 2-4 days

0

17

Echo 14312-1

BEARING
(Superseded to P14312-1)

Note: Parts included in Hopper Assembly.

$17.99

$

In Stock, only 3 left!

0

18

Echo 15032

WHEEL - DRIVE
(Superseded to Discontinued)

$

$

Not available

19

Echo 15007-1

LEG
(Superseded to Discontinued)

$

$

Not available

20

Echo 15036

WASHER - 3/4"
(Superseded to P15641)

$56.99

$

Usually ships in 2-4 days

0

21

Echo 14833

GEAR - SHAFT
(Superseded to P14833)

$34.99

$

In Stock, only 1 left!

0

22

Echo 15027

GEAR, AXLE
(Superseded to P15027)

$45.99

$

Usually ships in 2-4 days

0

23

Echo 15012

COVER, GEAR
(Superseded to P15012)

$52.99

$

In Stock, only 1 left!

0

24

Echo 14868

CLAMP, GEAR COVER
(Superseded to 14868-1)

$4.49

$

In Stock, Qty 6

0

25

Echo 15028

SUPPORT, GEAR
(Superseded to P15028)

$41.99

$

In Stock, only 1 left!

0

26

Echo 14063

AXLE COLLAR W/ SET SCREW
(Superseded to P14063)

$11.99

$

In Stock, only 1 left!

0

27

Echo 15037

AXLE

$70.99

$

In Stock, only 1 left!

0

28

Echo 14933

BEARING, AXLE
(Superseded to Discontinued)

$

$

Not available

29

Echo 15038

FRAME
(Superseded to Discontinued)

$

$

Not available

30

Echo 14625

IMPELLER
(Superseded to P14625)

$38.99

$

Usually ships in 2-4 days

0

31

Echo 15033

WHEEL, FREE

$92.99

$

Usually ships in 2-4 days

0

32

Echo 14510

AGITATOR
(Superseded to P14510)

$14.99

$

In Stock, Qty 14

0

33

Echo 15035

WASHER - 5/8"

$50.99

$

Usually ships in 2-4 days

0
