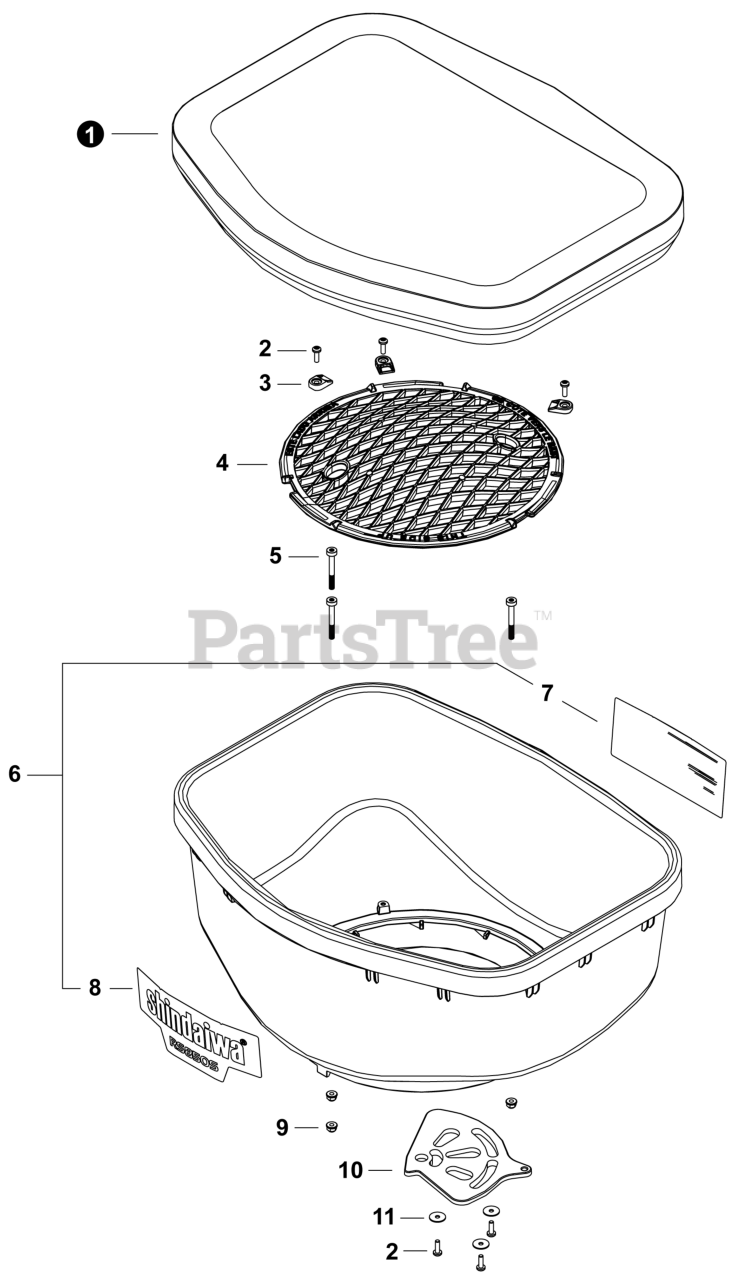

RS 850 S - Shindaiwa Broadcast Spreader, Stainless Steel (SN: N31000001001 - N31000999999) HOPPER Parts Diagram

Broadcast Spreader, Stainless Steel

HOPPER Parts Diagram

  • Title

1

Echo G401000020

COVER, HOPPER

$11.99

$

Usually ships in 2-4 days

0

2

Echo V253001110

SCREW, TAPPING 5x16

$0.99

$

Usually ships in 2-4 days

0

3

Echo V491000610

CLIPS, SCREEN

$0.99

$

Usually ships in 2-4 days

0

4

Echo K331000090

SCREEN, HOPPER

$9.99

$

Usually ships in 2-4 days

0

5

Echo V204001980

BOLT, M6 X 50MM

$1.99

$

Usually ships in 2-4 days

0

6

Echo G400000150

HOPPER ASSY

Note: Includes items 7-8

$52.99

$

Usually ships in 2-4 days

0

7

Echo X532006150

LABEL - OPERATION

$7.49

$

Usually ships in 2-4 days

0

8

Echo X562002130

LABEL - RS850S

$8.49

$

Usually ships in 2-4 days

0

9

Echo V264000540

NUT M6

$1.49

$

Usually ships in 2-4 days

0

10

Echo C627000210

PLATE, REGULATOR

$3.99

$

Usually ships in 2-4 days

0

11

Echo V303000410

WASHER 5 MM

$0.99

$

Usually ships in 2-4 days

0
