RS 850 - Shindaiwa Broadcast Spreader (SN: N30800001001 - N30800999999) GEAR CASE - WHEELS Parts Diagram

Broadcast Spreader

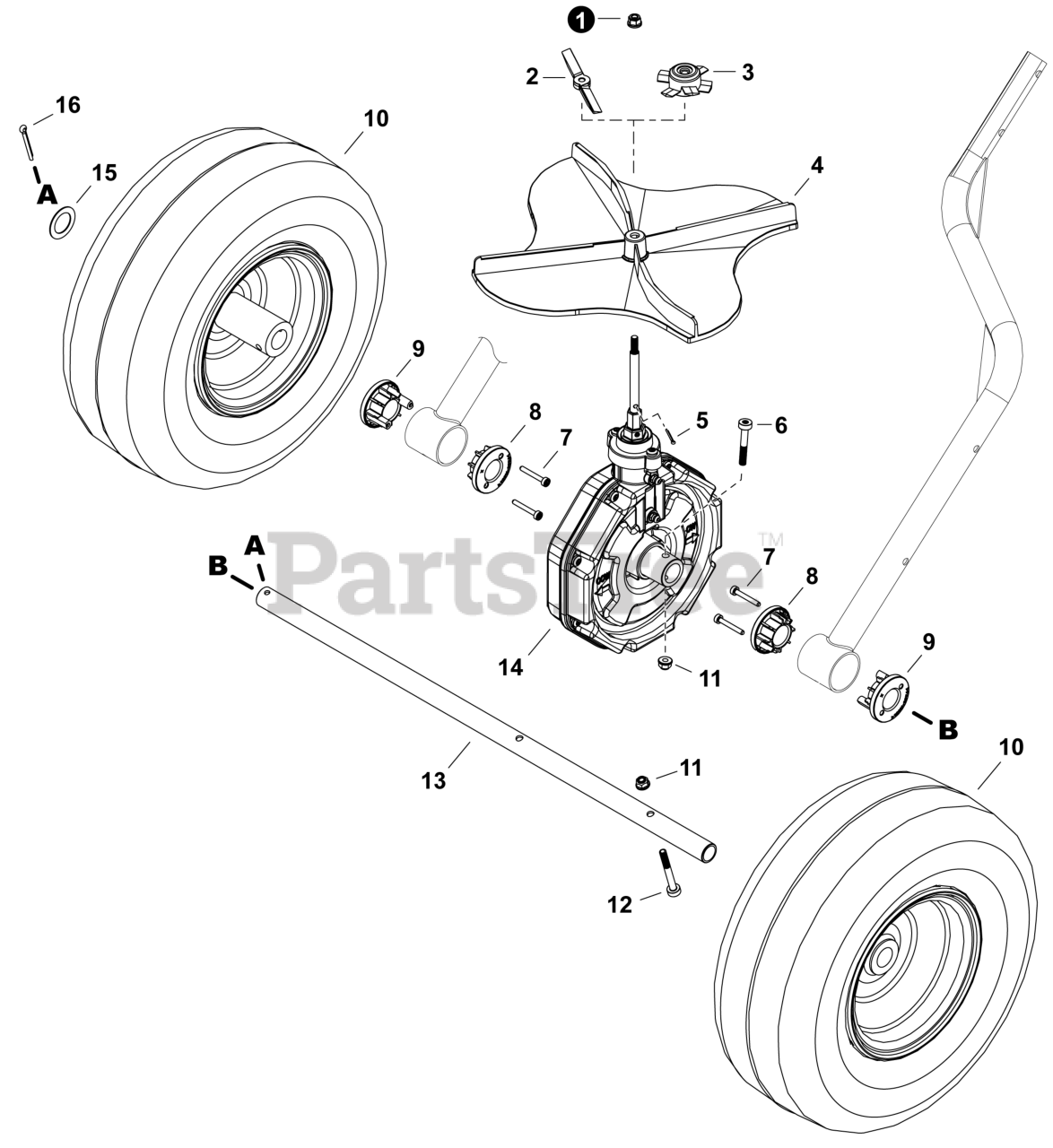

GEAR CASE - WHEELS Parts Diagram

  • Title

1

Echo V264000540

NUT M6

$1.99

$

In Stock, Qty 5

0

2

Echo E156000020

AGITATOR

$7.49

$

In Stock, only 2 left!

0

3

Echo E156000030

AGITATOR - SALT

$8.99

$

In Stock, only 2 left!

0

4

Echo C627000200

PLATE, SPREADER

$3.49

$

Usually ships in 2-4 days

0

5

Echo A605000020

PIN - COTTER

$0.99

$

Usually ships in 2-4 days

0

6

Echo V204001850

BOLT 6x40

$0.99

$

In Stock, Qty 10

0

7

Echo V202000860

BOLT 4

$1.49

$

Usually ships in 2-4 days

0

8

Echo C546000170

BUSHING, AXLE

$1.99

$

Usually ships in 2-4 days

0

9

Echo C546000180

BUSHING, AXLE (B)

$1.99

$

Usually ships in 2-4 days

0

10

Echo C730000150

WHEEL

$52.99

$

Usually ships in 2-4 days

0

11

Echo 9210806000

NUT, FLANGE M6

$1.49

$

In Stock, only 4 left!

0

12

Echo V204001860

BOLT, M6 X 50MM

$0.99

$

In Stock, only 3 left!

0

13

Echo C710000130

AXLE

$25.99

$

Usually ships in 2-4 days

0

14

Echo P021054240

GEAR CASE ASSY

$107.99

$

Usually ships in 2-4 days

0

15

Echo V340000640

WASHER

$1.49

$

Usually ships in 2-4 days

0

16

Echo V640001070

PIN - COTTER

$0.99

$

In Stock, Qty 7

0
