RS 850 W - Shindaiwa Broadcast Spreader, Winter Salt (SN: N31200001001 - N31200999999) HOPPER Parts Diagram

Broadcast Spreader, Winter Salt

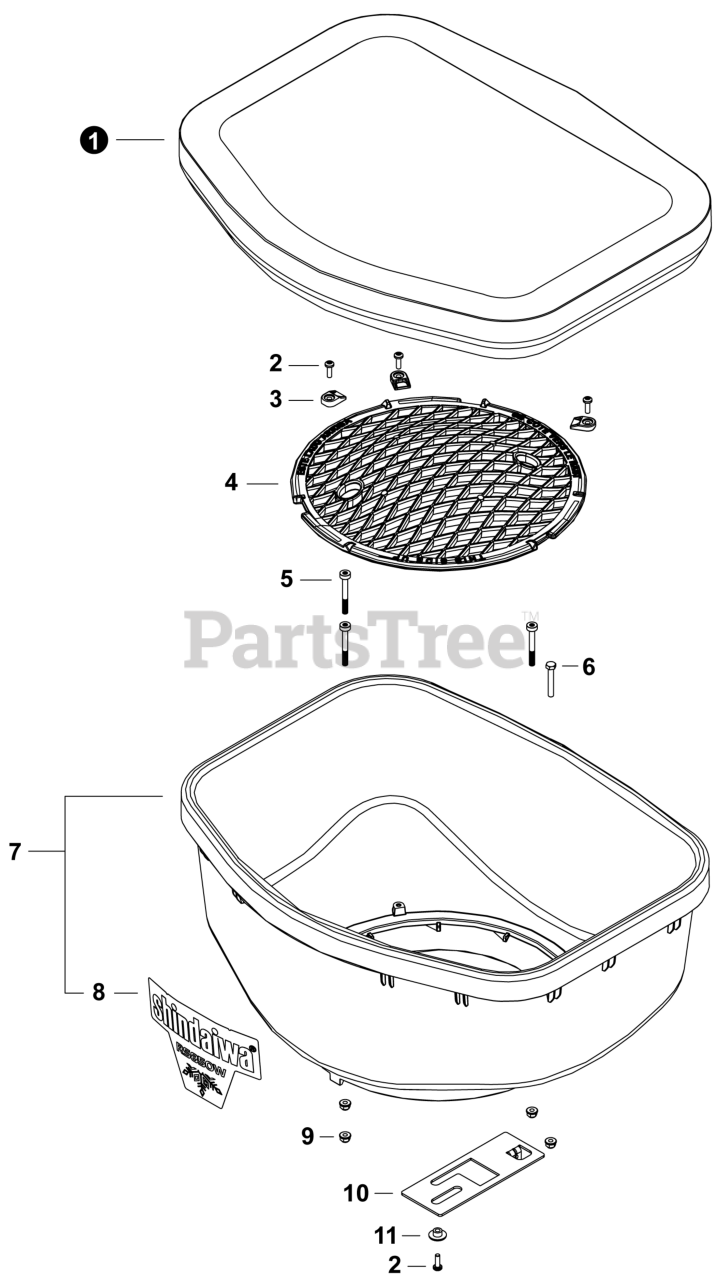

HOPPER Parts Diagram

  • Title

1

Echo G401000020

COVER, HOPPER

$11.99

$

Usually ships in 2-4 days

0

2

Echo V253001110

SCREW, TAPPING 5x16

$0.99

$

Usually ships in 2-4 days

0

3

Echo V491000610

CLIPS, SCREEN

$0.99

$

Usually ships in 2-4 days

0

4

Echo K331000090

SCREEN, HOPPER

$9.99

$

Usually ships in 2-4 days

0

5

Echo V204001980

BOLT, M6 X 50MM

$1.99

$

Usually ships in 2-4 days

0

6

Echo V204002020

BOLT 6x40

$0.99

$

Usually ships in 2-4 days

0

7

Echo G400000160

HOPPER ASSY

Note: Includes items 7-8

$52.99

$

Usually ships in 2-4 days

0

8

Echo X562002140

LABEL - RS850W

$7.99

$

Usually ships in 2-4 days

0

9

Echo V264000540

NUT M6

$1.49

$

Usually ships in 2-4 days

0

10

Echo C628000390

PLATE, REGULATOR

$16.99

$

Usually ships in 2-4 days

0

11

Echo J443000010

BUSHING - SLEEVE

$0.99

$

Usually ships in 2-4 days

0
