RS-ZT - Scag Riding Sulky (SN: 60000 - 69999) Sulky Parts Diagram

Riding Sulky

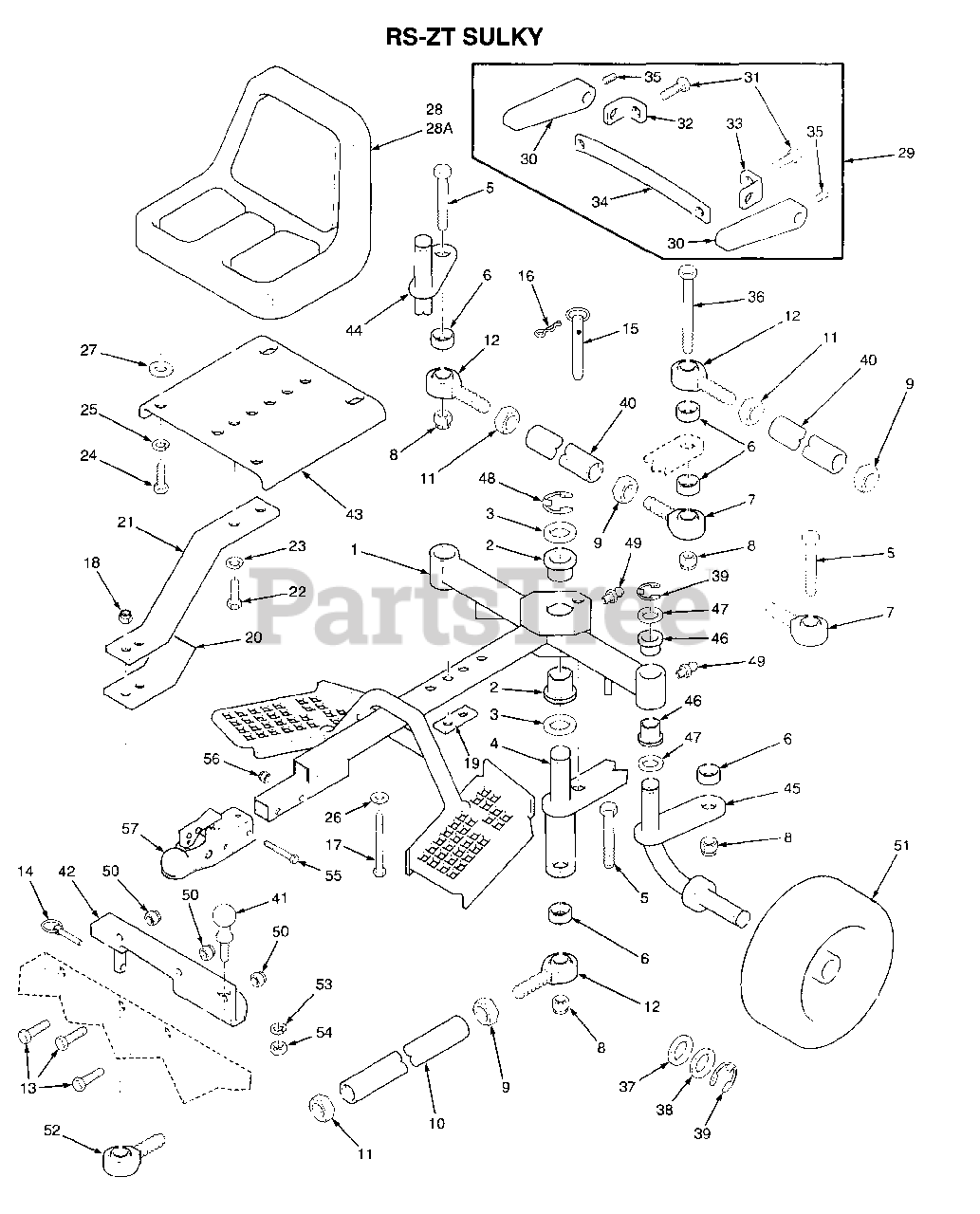

Sulky Parts Diagram

  • Title

1

Scag 46879

Sulky Frame

$

$

Not available

2

Scag 48100-01

Bronze Bearing

$8.99

$

Usually ships in 2-12 days

0

3

Scag 04041-17

Flat Washer

$31.99

$

In Stock, only 3 left!

0

4

Scag 45377

Steering Bellcrank

$

$

Not available

5

Scag 04001-72

Hex Head Bolt, 1/2-13 x 2"

$1.99

$

In Stock, only 2 left!

0

6

Scag 43041

Ball Joint Spacer

$5.49

$

Usually ships in 2-12 days

0

7

Scag 48542

Ball Joint (RH Thread), 1/2-20

$41.99

$

In Stock, only 1 left!

0

8

Scag 04021-07

Elastic Stop Nut, 1/2-13

$0.99

$

In Stock, Qty 20+

0

9

Scag 04020-08

Hex Nut, 1/2-20

$0.99

$

In Stock, only 3 left!

0

10

Scag 43207

Tie Rod, Long

$63.99

$

Usually ships in 2-12 days

0

11

Scag 04020-15

Hex Nut (L.H. Thread), 1/2-20

$3.99

$

Usually ships in 2-12 days

0

12

Scag 48664

Ball Joint (L.H. Thread), 1/2-20

$41.99

$

Usually ships in 2-12 days

0

13

Scag 04001-32

Hex Head Bolt, 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 15

0

14

Scag 04066-02

Quick Pin, 3/16" dia

$4.49

$

In Stock, Qty 6

0

15

Scag 04067-02

Ring Pin

$19.99

$

Usually ships in 2-12 days

0

16

Scag 04062-01

Hair Pin, .094 x 1.625

$0.99

$

In Stock, Qty 20+

0

17

Scag 04001-89

Hex Head Bolt, 7/16-14 x 4"

$2.49

$

Usually ships in 2-12 days

0

18

Scag 04021-11

Elastic Stop Nut, 7/16-14

$0.99

$

In Stock, Qty 9

0

19

Scag 42968

Lower Support Plate

$

$

Not available

20

Scag 48648

Reinforcement Seat Spring

$

$

Not available

21

Scag 48649

Seat Support Spring

$214.99

$

Usually ships in 2-12 days

0

22

Scag 04001-19

Hex Head Bolt, 3/8-16 x 1"

$0.99

$

In Stock, Qty 20+

0

23

Scag 04030-04

Lock Washer, 3/8"

$0.99

$

In Stock, Qty 20+

0

24

Scag 04001-08

Hex Head Bolt, 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

25

Scag 04030-03

Lock Washer 5/16"

$0.99

$

In Stock, Qty 20+

0

26

Scag 04040-11

Flat Washer, 7/16"

$0.99

$

In Stock, Qty 13

0

27

Scag 04041-11

Flat Washer, 3/8"

$1.99

$

In Stock, Qty 20+

0

28

Scag 48592

Seat Assembly
(Superseded to 482027)

$651.99

$

Usually ships in 2-12 days

0

28A

Scag 48592-01

Seat
(Superseded to 482027)

$651.99

$

Usually ships in 2-12 days

0

29

Scag 48014-02

Arm Rest Kit

$

$

Not available

30

Scag 48014-03

Arm Rest

$

$

Not available

31

Scag 04001-08

Hex Head Bolt, 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

32

Scag 48014-04

Mounting Bracket, RH

$

$

Not available

33

Scag 48014-05

Mounting Bracket, LH

$

$

Not available

34

Scag 48014-07

Back Strap

$

$

Not available

35

Set Screw, 3/8-16 x 3/4" Flat Point

$

$

Not available

36

Scag 04001-90

Hex Head Bolt, 1/2-13 x 3-1/4"

$2.99

$

In Stock, only 2 left!

0

37

Scag 04042-05

Flat Washer, 1"

$0.99

$

In Stock, Qty 20+

0

38

Scag 04041-14

Flat Washer, 1"

$0.99

$

In Stock, Qty 18

0

39

Scag 04050-08

"E" Clip, 1"

$0.99

$

In Stock, Qty 20+

0

40

Scag 43206

Tie Rod

$65.99

$

Usually ships in 2-12 days

0

41

Scag 481395

Hitch Ball, 1-7/8"

$41.99

$

Usually ships in 2-12 days

0

42

Scag 45828

Hitch Bracket

$87.99

$

Usually ships in 2-12 days

0

43

Scag 45210

Seat Plate

$125.99

$

In Stock, only 1 left!

0

44

Scag 45379

Wheel Spindle, RH

$

$

Not available

45

Scag 45378

Wheel Spindle, LH

$

$

Not available

46

Scag 48100-08

Bronze Bearing

$5.49

$

Usually ships in 2-12 days

0

47

Scag 04041-14

Flat Washer

$0.99

$

In Stock, Qty 18

0

48

Scag 04050-12

"E" Clip

$0.99

$

Usually ships in 2-12 days

0

49

Scag 48114-04

Grease Fitting

$1.49

$

In Stock, Qty 20+

0

50

Scag 04021-09

Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

51

Scag 48260-01

Wheel Assembly
(Superseded to 48260)

$235.99

$

Usually ships in 2-12 days

0

52

Scag 481394

Ball Joint (RH Thread) 5/8 x 1/2-20

$150.99

$

Usually ships in 2-12 days

0

53

Scag 04030-08

Lockwasher, 3/4"

$

$

Currently unavailable

54

Scag 04020-21

Hex Nut, 3/4-16

$

$

Currently unavailable

55

Scag 04001-22

Hex Head Bolt, 3/8-16 x 2-3/4"

$1.49

$

In Stock, Qty 11

0

56

Scag 04021-09

Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

57

Scag 481396

Coupler, 1-7/8"

$72.99

$

Usually ships in 2-12 days

0
