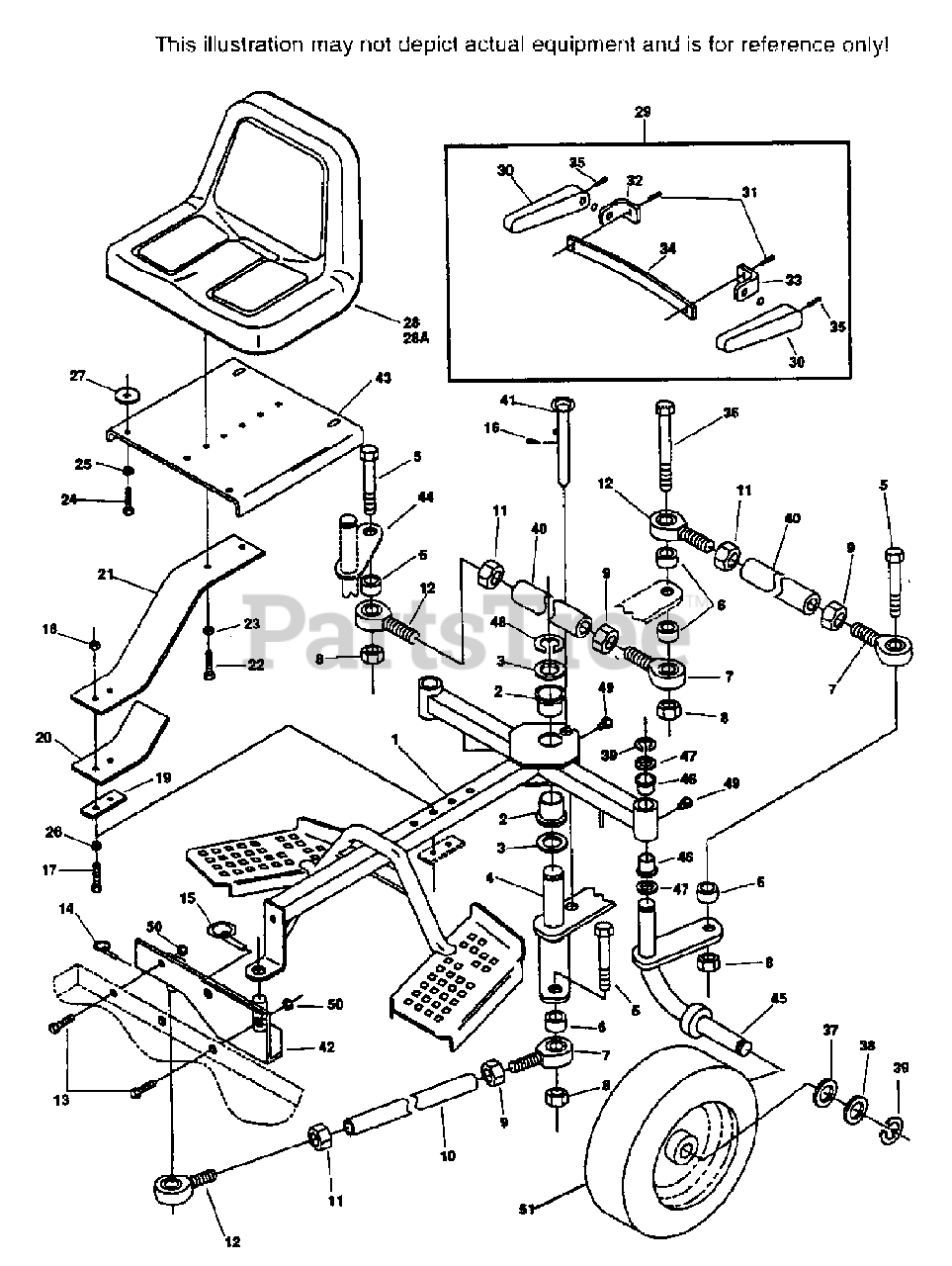

RS-ZT RIDING SULKY Parts Diagram

  • Title

1

Scag 45380

SULKY FRAME

$

$

Not available

2

Scag 48100-01

BRONZE BEARING

$8.99

$

Usually ships in 2-12 days

0

3

Scag 04041-17

FLAT WASHER

$31.99

$

In Stock, only 3 left!

0

4

Scag 45377

STEERING BELLCRANK

$

$

Not available

5

HEX HEAD BOLT, 1/2-13 X 2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

6

Scag 43041

BALL JOINT SPACER

$5.49

$

Usually ships in 2-12 days

0

7

Scag 48542

BALL JOINT(R.H. THREAD), 1/2-20

$41.99

$

In Stock, only 1 left!

0

8

ELASTIC STOP NUT, 1/2-13

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

9

HEX NUT, 1/2-20

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

10

Scag 43207

TIE ROD, LONG

$63.99

$

Usually ships in 2-12 days

0

11

Scag 04020-15

HEX NUT(L.H. THREAD), 1/2-20

$3.99

$

Usually ships in 2-12 days

0

12

Scag 48664

BALL JOINT(L.H. THREAD), 1/2-20

$41.99

$

Usually ships in 2-12 days

0

13

HEX HEAD BOLT, 3/8-16 X 1 1/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

14

Scag 04066-02

QUICK PIN - SMALL

$4.49

$

In Stock, Qty 6

0

15

Scag 04066-01

QUICK PIN - LARGE

$8.99

$

Usually ships in 2-12 days

0

16

Scag 04062-02

HAIR PIN

$0.99

$

In Stock, Qty 20+

0

17

HEX HEAD BOLT, 7/16-14 X 4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

18

ELASTIC STOP NUT, 7/16-14

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

19

Scag 42968

LOWER SUPPORT PLATE

$

$

Not available

20

Scag 48648

REINFORCEMENT SEAT SPRING

$

$

Not available

21

Scag 48649

SEAT SUPPORT SPRING

$214.99

$

Usually ships in 2-12 days

0

22

HEX HEAD BOLT, 3/8-16 X 1"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

23

LOCK WASHER, 3/8"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

24

HEX HEAD BOLT, 5/16-18 X 3/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

25

LOCK WASHER 5/16"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

26

FLAT WASHER, 7/16"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

27

FLAT WASHER, 3/8"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

28

Scag 48592

SEAT ASSEMBLY
(Superseded to 482027)

$651.99

$

Usually ships in 2-12 days

0

28A

Scag 48592-01

SEAT
(Superseded to 482027)

$651.99

$

Usually ships in 2-12 days

0

29

Scag 48014-02

ARM REST KIT

$

$

Not available

30

Scag 48014-03

ARM REST

$

$

Not available

31

HEX HEAD BOLT, 5/16-18 X 3/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

32

Scag 48014-04

MOUNTING BRACKET R.H.

$

$

Not available

33

Scag 48014-05

MOUNTING BRACKET L.H.

$

$

Not available

34

Scag 48014-07

BACK STRAP

$

$

Not available

35

SET SCREW, 3/8-16 X 3/4" FLAT POINT

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

36

HEX HEAD BOLT, 1/2-13 X 3 1/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

37

Scag 04042-05

FLAT WASHER 1"

$0.99

$

In Stock, Qty 20+

0

38

Scag 04041-14

FLAT WASHER 1"

$0.99

$

In Stock, Qty 18

0

39

Scag 04050-08

"E" CLIP 1"

$0.99

$

In Stock, Qty 20+

0

40

Scag 43206

TIE ROD

$65.99

$

Usually ships in 2-12 days

0

41

Scag 04067-02

RING PIN

$19.99

$

Usually ships in 2-12 days

0

42

Scag 45390

CENTER-STEERING MOUNTING BRACKET

$231.99

$

Usually ships in 2-12 days

0

43

Scag 45210

SEAT PLATE

$125.99

$

In Stock, only 1 left!

0

44

Scag 45378

WHEEL SPINDLE R.H.

$

$

Not available

45

Scag 45379

WHEEL SPINDLE L.H.

$

$

Not available

46

Scag 48100-08

BRONZE BEARING

$5.49

$

Usually ships in 2-12 days

0

47

Scag 04041-14

FLAT WASHER

$0.99

$

In Stock, Qty 18

0

48

Scag 04050-12

"E" CLIP

$0.99

$

Usually ships in 2-12 days

0

49

Scag 48114-04

GREASE FITTING

$1.49

$

In Stock, Qty 20+

0

50

ELASTIC STOP NUT, 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

51

Scag 48260-01

WHEEL ASSEMBLY
(Superseded to 48260)

$235.99

$

Usually ships in 2-12 days

0

Scag 48260-02

TIRE ONLY
(Superseded to 481909)

Note: (NOT SHOWN)

$195.99

$

Usually ships in 2-12 days

0

Scag 48260-03

RIM ONLY
(Superseded to 481910)

Note: (NOT SHOWN)

$176.99

$

Usually ships in 2-12 days

0

Scag 48260-06

BEARING, WHEEL
(Superseded to 481913)

Note: (NOT SHOWN)

$21.99

$

Usually ships in 2-12 days

0

Scag 48260-07

RETAINING CAP, WHEEL
(Superseded to 481914)

Note: (NOT SHOWN)

$3.49

$

Usually ships in 2-12 days

0
