RT 1200 - Toro Riding Trencher Traction Unit (2010) 36IN DEPTH ROCKSAW ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

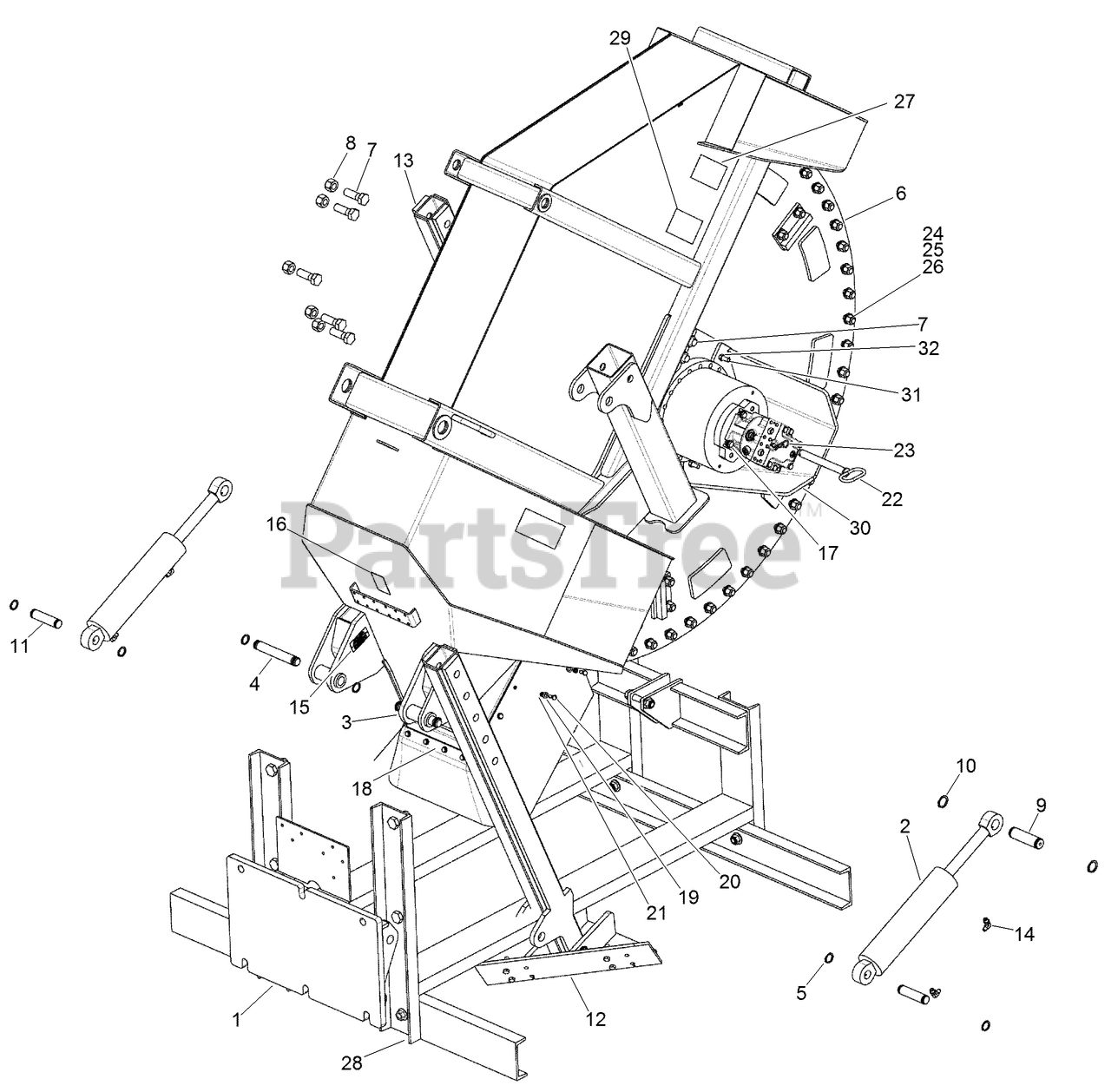

36IN DEPTH ROCKSAW ASSEMBLY Parts Diagram

  • Title

Toro AU118935

ROCKSAW - 36 Depth

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU101027

WELDMENT - Rock Wheel Mount

$

$

Currently unavailable

2

Toro AU118918

CYLINDER ASSEMBLY - 89 (3-1/2) ID x 290 mm (11-13/32 inch) Stroke, Plow Lift

$1689.99

$

Usually ships in 3-6 days

0

3

Toro AU100920

FRAME WELDMENT - Rock Wheel

$

$

Currently unavailable

4

Toro AUH434381

PIN-STABILIZER CYLINDER TO ARM

$

$

Currently unavailable

5

Toro AU103-16125

RING-RETAINING
(Superseded to 32151-77)

$4.99

$

In Stock, only 1 left!

0

6

Toro AU102464

WHEEL ASSEMBLY - Motor/Disc/Hardware

$

$

Currently unavailable

7

Toro AU426-1648

BOLT

$10.99

$

Usually ships in 3-6 days

0

8

Toro AU232-41116

NUT-HEX

$5.99

$

Usually ships in 3-6 days

0

9

Toro AU221253A1

PIN-PIVOT

$235.99

$

Usually ships in 3-6 days

0

10

Toro AUD25279

RING

$20.99

$

Usually ships in 3-6 days

0

11

Toro AUD32933

PIN-pivot, swing tower, small

$176.99

$

Usually ships in 3-6 days

0

12

Toro AU101063

ASSEMBLY - Stabilizer, LH

$

$

Currently unavailable

13

Toro AU101064

ASSEMBLY - Stabilizer, RH

$

$

Currently unavailable

14

Toro AU218-5105

ELBOW-90 DEG (ADJUSTABLE 37 DEG)

$3.99

$

Usually ships in 3-6 days

0

15

Toro AU100572

PLATE - Serial Number

$

$

Currently unavailable

16

Toro AU382622A1

DECAL - Warning, General Operation

$41.99

$

Usually ships in 3-6 days

0

17

Toro AU496-21053

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

18

Toro AU101359

SKIRT - Rock Wheel

$575.99

$

Usually ships in 3-6 days

0

19

Toro AU495-11041

WASHER-0.406 x 0.812 x 0.065 in CST ZND

$0.99

$

Usually ships in 3-6 days

0

20

Toro AU426-624

BOLT-hex, 3/8 NC x 1-1/2 inch
(Superseded to 323-43)

$0.99

$

Usually ships in 3-6 days

0

21

Toro AU230-4216

NUT
(Superseded to 603773)

$2.99

$

In Stock, Qty 20+

0

22

Toro AUH660209

PIN - Mounting

$295.99

$

Usually ships in 3-6 days

0

23

Toro AUH32292

PIN-Hair

$1.49

$

Usually ships in 3-6 days

0

24

Toro AU496-11081

WASHER

$0.99

$

Usually ships in 3-6 days

0

25

Toro AU426-1252

BOLT - Hex Hd .75 x 3.25 GR8 ZND

$

$

Currently unavailable

26

Toro AU232-41112

NUT-Prev Trq 3/4 GRC CAD Direct

$2.49

$

Usually ships in 3-6 days

0

27

Toro AU114743

DECAL - Wheel Hazard

$14.99

$

Usually ships in 3-6 days

0

28

Toro AU109145

STAND - Rock Saw

$

$

Currently unavailable

29

Toro AU115101

DECAL - Danger, Tren Entangle Hazard

$14.99

$

Usually ships in 3-6 days

0

30

Toro AU102474

WELDMENT - Motor Guard

$

$

Currently unavailable

31

Toro AU426-832

BOLT

$1.49

$

Usually ships in 3-6 days

0

32

Toro AU230-4218

NUT-LOCK, HEX

$3.49

$

Usually ships in 3-6 days

0
