RT 1200 - Toro Riding Trencher Traction Unit (2010) BACKFILL BLADE ANGLE CYLINDER ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

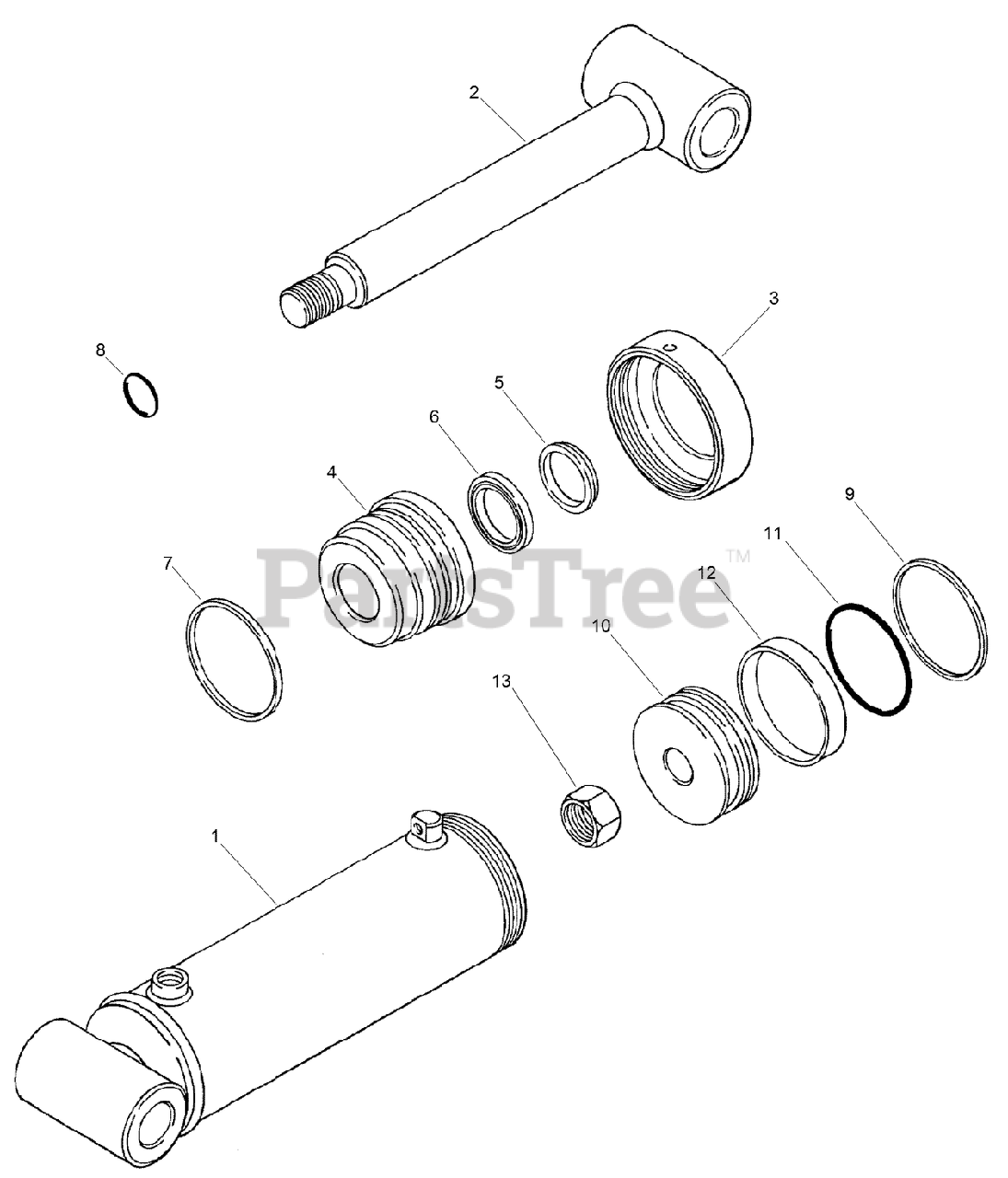

BACKFILL BLADE ANGLE CYLINDER ASSEMBLY Parts Diagram

  • Title

Toro AUH670935

CYLINDER - Barrel

Note: Not illustrated

$

$

Not available

1

Toro AUN13626

TUBE - Cylinder

$

$

Currently unavailable

2

Toro AUN13627

ROD - Piston

$

$

Currently unavailable

3

Toro AUH242545

COLLAR

$

$

Currently unavailable

4

Toro AUH254763

GLAND - Cylinder

$

$

Currently unavailable

Toro AUN13628

KIT - Seal (Consists of items 5 - 9, 11 - 12)

Note: Not illustrated

$

$

Currently unavailable

5

Toro AUH222935

WIPER - Piston Rod

$

$

Currently unavailable

6

Toro AUH247809

SEAL - Piston Rod

$

$

Currently unavailable

7

Toro AU238-5236

O-RING - 3-1/4 ID x 1/8
(Superseded to AU510137)

$1.99

$

Usually ships in 3-6 days

0

8

Toro AUR15366

O-RING - 7/8 ID x 1/16

$

$

Currently unavailable

9

Toro AUN13629

SEAL

$

$

Currently unavailable

10

Toro AUN13625

PISTON - Cylinder

$

$

Currently unavailable

11

Toro AU238-5151

O-RING - 3 ID x 3/32

$2.99

$

Usually ships in 3-6 days

0

12

Toro AUN13630

RING - Wear

$

$

Currently unavailable

13

Toro AU131-370

NUT - Lock

$

$

Not available
