RT 1200 - Toro Riding Trencher Traction Unit (2010) BACKFILL BLADE ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

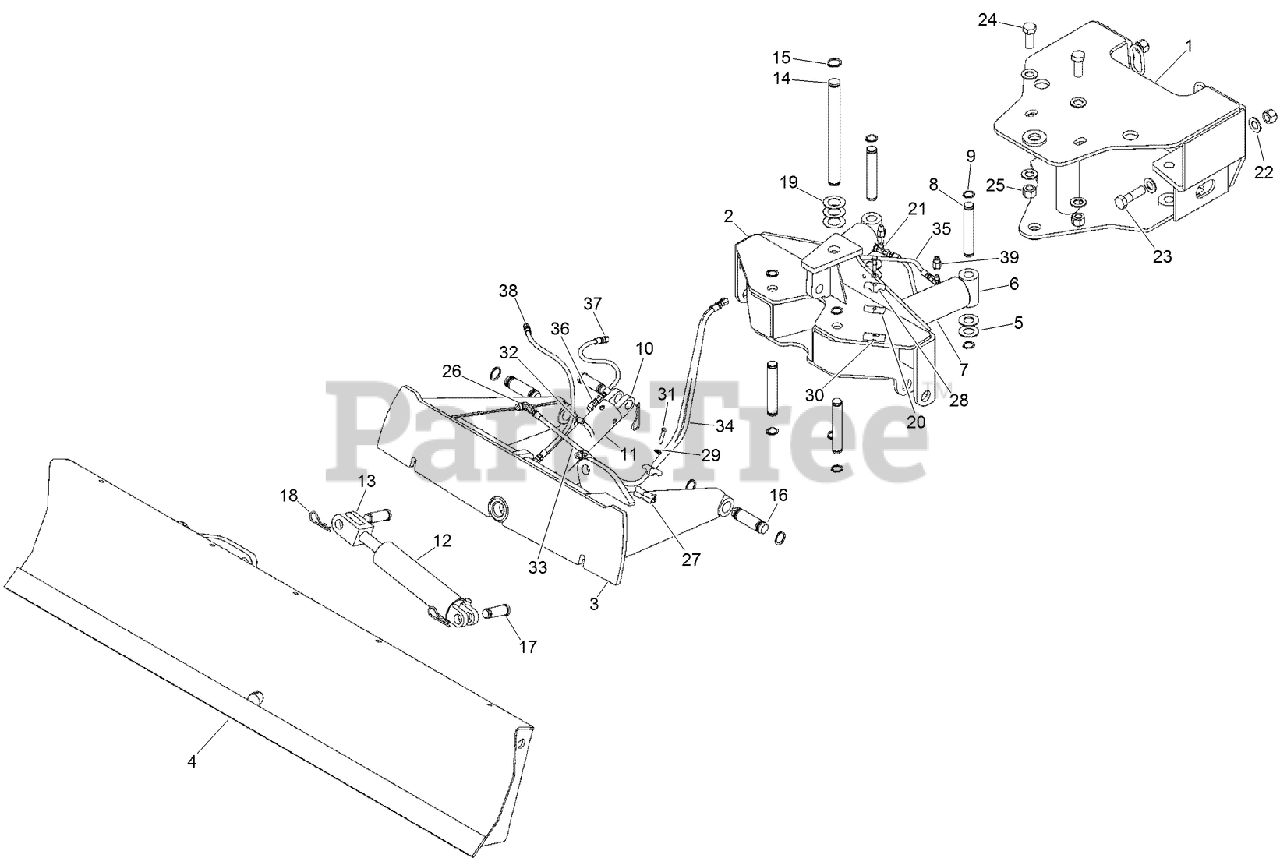

BACKFILL BLADE ASSEMBLY Parts Diagram

  • Title

Toro AU116760

ASSEMBLY - Backfill Blade

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU117156

WELDMENT, FRAME - Backfill Mtg
(Superseded to AU117156-03)

$

$

Not available

2

Toro AU115400

WELDMENT, PIVOT - Backfill
(Superseded to AU115400-03)

$

$

Not available

3

Toro AU115399

WELDMENT, ARM - Backfill

$

$

Not available

4

Toro AU106732

WELDMENT, BLADE - Backfill

$

$

Not available

5

Toro AU495-81209

WASHER-FLAT

$

$

Not available

6

Toro AUH670935

CYLINDER - Barrel

$

$

Not available

7

Toro AUH670935

CYLINDER - Barrel

$

$

Not available

8

Toro AUH432880

PIN-ANGLE, CYLINDER

$

$

Currently unavailable

9

Toro AU103-16125

RING-RETAINING
(Superseded to 32151-77)

$4.99

$

In Stock, only 1 left!

0

10

Toro AU118759

CYLINDER - Hydraulic, Barrel

$

$

Not available

11

Toro AU118759

CYLINDER - Hydraulic, Barrel

$

$

Not available

12

Toro AU117653

CYLINDER - Hydraulic, Barrel

$

$

Currently unavailable

13

Toro AU117653

CYLINDER - Hydraulic, Barrel

$

$

Currently unavailable

14

Toro AUH432906

PIN-BLADE

$

$

Currently unavailable

15

Toro AUD25279

RING

$20.99

$

Usually ships in 3-6 days

0

16

Toro AUH432898

PIN-BLADE

$

$

Currently unavailable

17

Toro AUN14001

PIN-CLEVIS

$

$

Currently unavailable

18

Toro AU1978738C1

PIN-COTTER, QUICK ATTACH

$

$

Not available

19

Toro AUH117606

WASHER

$23.99

$

Usually ships in 3-6 days

0

20

Toro AU218-5057

CONNECTOR-Str Thd 3/8, 37FL-ORB 3/8

$4.49

$

Usually ships in 3-6 days

0

21

Toro AU218-5243

FITTING-TEE

$29.99

$

Usually ships in 3-6 days

0

22

Toro AUH426833

WASHER

$9.99

$

Usually ships in 3-6 days

0

23

Toro AU426-1656

SCREW-CAP, HH

$17.99

$

Usually ships in 3-6 days

0

24

Toro AU426-1640

BOLT

$20.99

$

Usually ships in 3-6 days

0

25

Toro AU232-41116

NUT-HEX

$5.99

$

Usually ships in 3-6 days

0

26

Toro AU218-5128

ELBOW-90 Adj 37FL, 3/8 x 1/2 Tube
(Superseded to 353-537)

$12.99

$

Usually ships in 3-6 days

0

27

Toro AUD120614

RETAINER - Hose

$

$

Currently unavailable

28

Toro AUD120679

CLAMP-TUBE

$7.99

$

Usually ships in 3-6 days

0

29

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

30

Toro AU224-2246

NUT-SQUARE

$0.99

$

Usually ships in 3-6 days

0

31

Toro AU426-628

BOLT-Hex Hd .375 x 1.75 GR5 ZND
(Superseded to 323-52)

$4.49

$

In Stock, only 2 left!

0

32

Toro AU214-1452

CLAMP - Hose Type F #52

$2.49

$

Usually ships in 3-6 days

0

33

Toro AU106855

HOSE - Hydraulic, Back Fill Blade Tilt

$

$

Currently unavailable

34

Toro AU106854

HOSE - Hydraulic, Back Fill Blade Tilt

$

$

Currently unavailable

35

Toro AUS77121

HOSE, Hyd, C2 tee at diff lock valve (branch) to front axle diff lock

$

$

Not available

36

Toro AU124453

ORIFICE - 0.062 - Inline

$36.99

$

Usually ships in 3-6 days

0

37

Toro AUS77121

HOSE, Hyd, C2 tee at diff lock valve (branch) to front axle diff lock

$

$

Not available

38

Toro AU119666A1

HOSE-Trencher Lift

$136.99

$

Usually ships in 3-6 days

0

39

Toro AU91-2215-6-8S

ADAPTER - Tube IPC, 37FL, 3/8 x 1/2

$

$

Currently unavailable
