RT 1200 - Toro Riding Trencher Traction Unit (2010) BACKHOE CONTROL VALVE ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

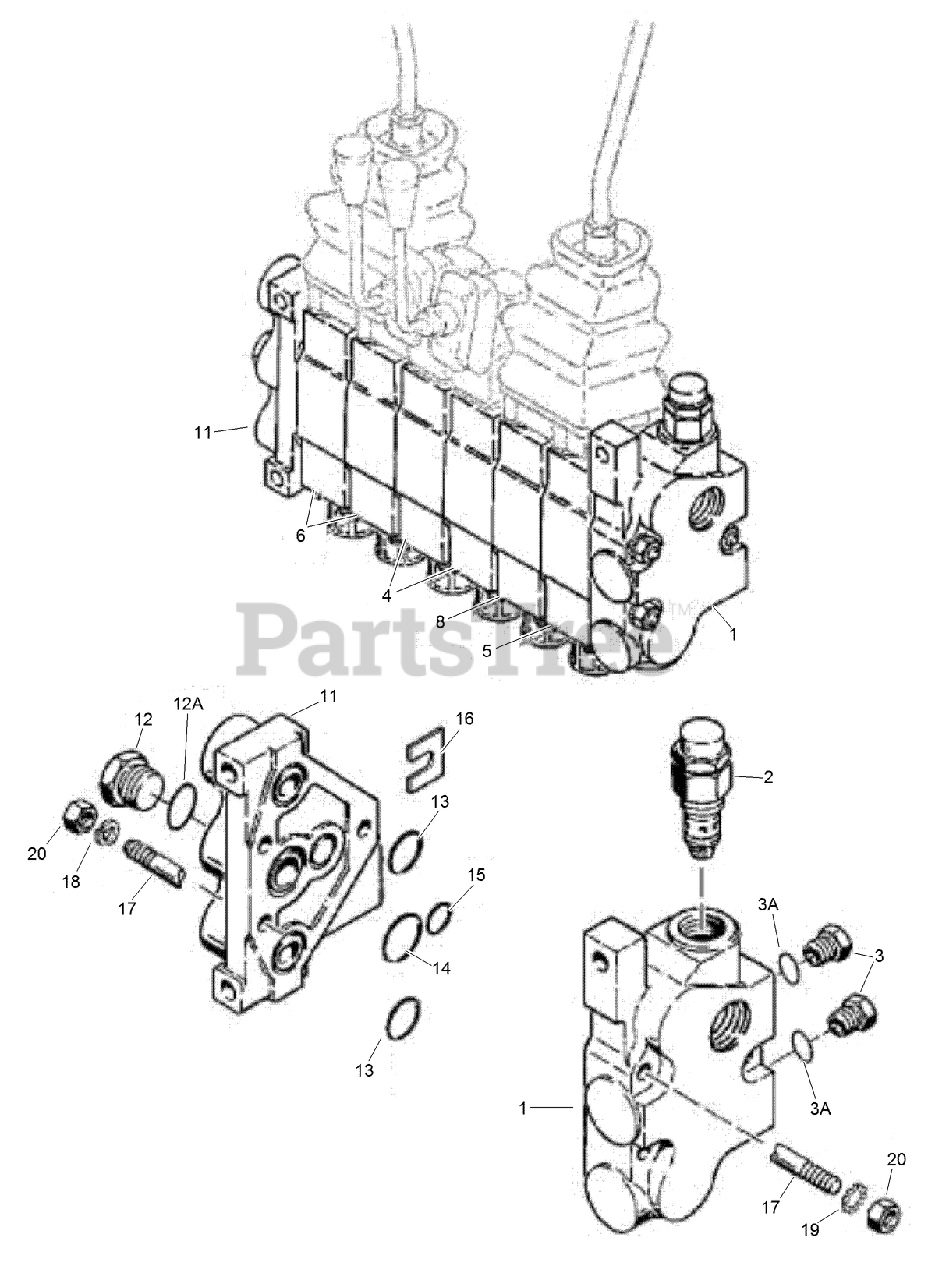

BACKHOE CONTROL VALVE ASSEMBLY Parts Diagram

  • Title

Toro AUH672270

VALVE-BACKHOE, 6 SPOOL

Note: Not illustrated

$

$

Currently unavailable

1

Toro AUN14032

ASSEMBLY - Inlet (Includes items 2, 3, & 3A)

$

$

Currently unavailable

2

Toro AUN14645

VALVE - Relief

$

$

Currently unavailable

3

Toro AU218-5155

PLUG-Hex Hd, ORB 3/8

$3.49

$

Usually ships in 3-6 days

0

3A

Toro AU237-6006

O-RING

$1.99

$

Usually ships in 3-6 days

0

4

Toro AUH674692

ASSEMBLY - Stabilizer

$

$

Not available

5

Toro AUH674691

ASSEMBLY - Bucket

$

$

Not available

6

Toro AUH674693

ASSEMBLY - Dipper, Swing

$

$

Currently unavailable

8

Toro AUH674694

ASSEMBLY - Boom

$

$

Currently unavailable

Toro AUN14036

ASSEMBLY - Outlet (Consists of items 11 - 16)

Note: Not illustrated

$

$

Currently unavailable

11

ASSEMBLY - Outlet

Note: Not serviced separately

$

$

Not available

12

Toro AU218-5211

PLUG-SOCKET HEAD

$4.49

$

Usually ships in 3-6 days

0

12A

Toro AU237-6010

O-RING
(Superseded to 237-80)

$6.49

$

In Stock, Qty 5

0

13

Toro AUH438208

O-RING, Medium

$

$

Not available

14

Toro AUH438209

O-RING, Large
(Superseded to 237-79)

$5.99

$

In Stock, Qty 17

0

15

Toro AUH438210

O-RING, Small

$

$

Currently unavailable

16

Toro AUH438211

SHIM - Adjusting

$

$

Currently unavailable

Toro AUN14041

KIT - Tie Rod (Consists of items 17 - 20)

Note: Not illustrated

$

$

Currently unavailable

17

ROD - Tie

Note: Not serviced separately

$

$

Not available

18

Toro AU492-11038

WASHER-Spring Lock, Reg 3/8 ZND
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 14

0

19

Toro AU93-41039

WASHER - Lock - 3/8

$

$

Not available

20

Toro AU425-116

NUT - 3/8 NF

$0.99

$

Usually ships in 3-6 days

0
