RT 1200 - Toro Riding Trencher Traction Unit (2010) BACKHOE PLATFORM ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

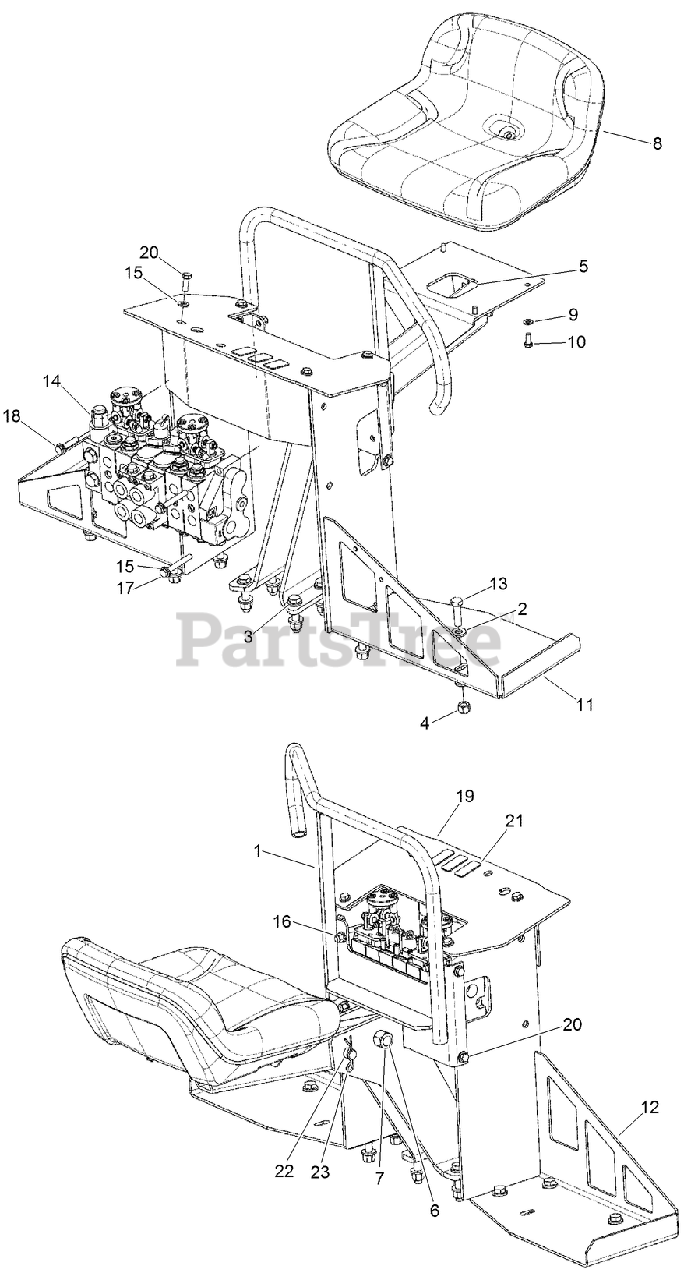

BACKHOE PLATFORM ASSEMBLY Parts Diagram

  • Title

Toro AU108204

ASSEMBLY - Backhoe Platform

Note: Not illustrated

$

$

Currently unavailable

1

Toro AUH672346

WELDMENT, CONSOLE - Valve and Seat Mounting

$

$

Currently unavailable

2

Toro AU496-21053

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

3

Toro AU426-840

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

4

Toro AU232-4118

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

5

Toro AU121896

POST-Seat, Backhoe

$

$

Not available

6

Toro AU426-1260

BOLT-Hex Hd 0.750 x 3.75 GR8 ZND

$

$

Not available

7

Toro AU230-42112

NUT-HEX LOCK

$

$

Not available

8

Toro AU116536

SEAT-BLACK, LOW-BACK
(Superseded to 144-2554)

$222.99

$

Usually ships in 3-6 days

0

9

Toro AU496-11034

WASHER-FLAT
(Superseded to 94-6936)

$0.99

$

Usually ships in 3-6 days

0

10

Toro AU426-512

BOLT

$0.99

$

Usually ships in 3-6 days

0

11

Toro AUH673480

WELDMENT, GUARD - Foot, LH

$

$

Currently unavailable

12

Toro AUH673481

WELDMENT, GUARD - Foot, RH

$

$

Currently unavailable

13

Toro AU426-828

BOLT-Hex Hd 1/2 x 1-3/4 GR5 ZND
(Superseded to 121-1524)

$3.99

$

Usually ships in 3-6 days

0

14

Toro AUH672270

VALVE-BACKHOE, 6 SPOOL

$

$

Currently unavailable

15

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

16

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

17

Toro AU426-644

BOLT-HH

$1.49

$

Usually ships in 3-6 days

0

18

Toro AU426-628

BOLT-Hex Hd .375 x 1.75 GR5 ZND
(Superseded to 323-52)

$4.99

$

In Stock, only 2 left!

0

19

Toro AU113301

COVER - Valve Top, Weldment

$

$

Not available

20

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

21

Toro AU382892A1

BLANK-SWITCH, ROCKER
(Superseded to 99-7420)

$8.99

$

Usually ships in 3-6 days

0

22

Toro AUS10839

PIN-CLEVIS

$

$

Not available

23

Toro AU136-164

PIN-HAIR COTTER, INT
(Superseded to 3290-355)

$2.99

$

In Stock, Qty 20+

0

24

Toro AU31375

KNOB-BALL

Note: Not illustrated

$44.99

$

Usually ships in 3-6 days

0
