RT 1200 - Toro Riding Trencher Traction Unit (2010) BOOM SPROCKET ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

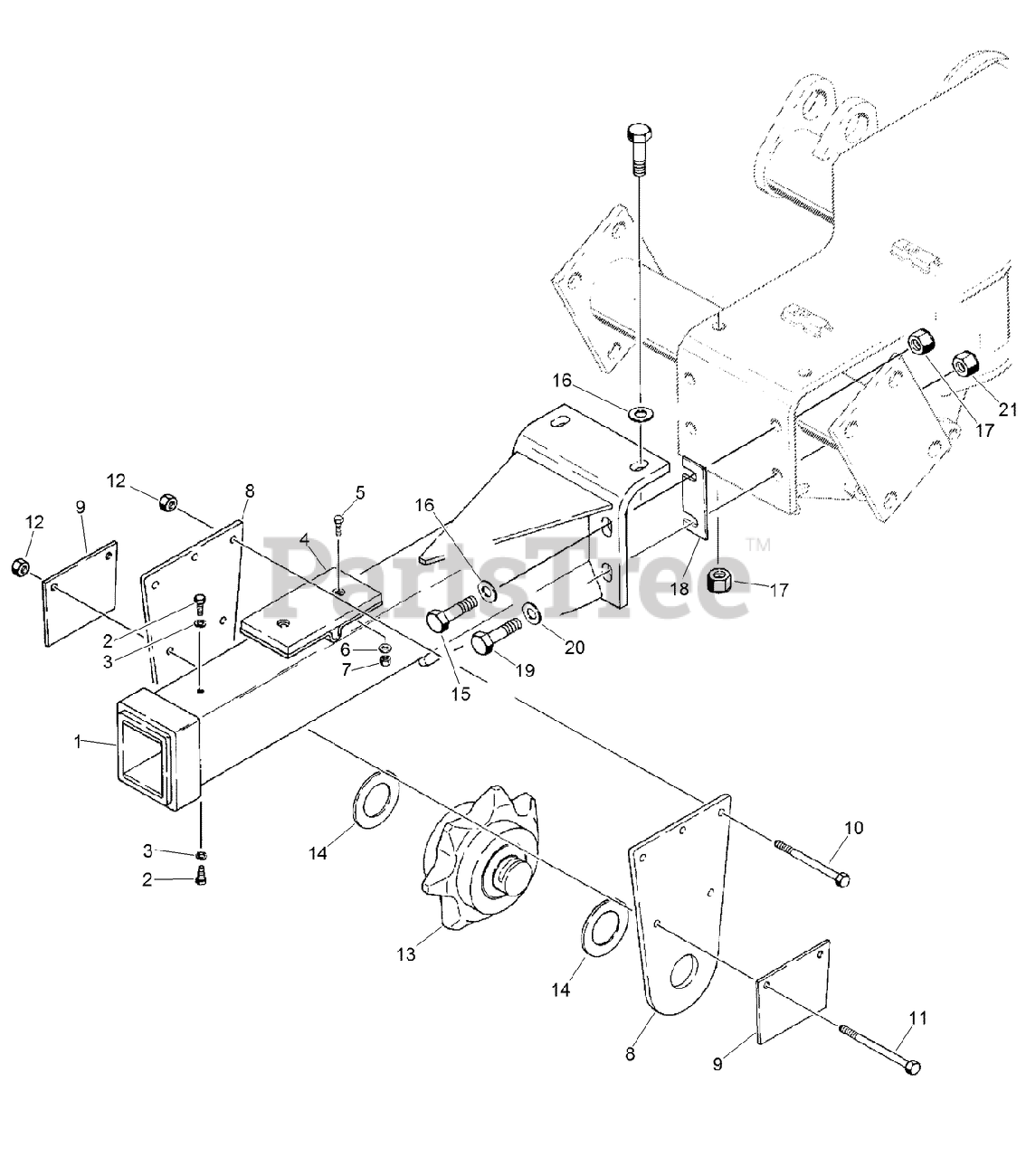

BOOM SPROCKET ASSEMBLY Parts Diagram

  • Title

Toro AU252097A1

ASSEMBLY - Sprocket Boom, 4 Ft

Note: Not illustrated

$

$

Currently unavailable

Toro AU252098A1

ASSEMBLY - Sprocket Boom, 5 Ft

Note: Not illustrated

$

$

Currently unavailable

Toro AU252099A1

ASSEMBLY - Sprocket Boom, 6 Ft

Note: Not illustrated

$

$

Currently unavailable

Toro AU252100A1

ASSEMBLY - Sprocket Boom, 7 Ft

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU251021A1

BOOM - 4 Ft (Uses 1 Idler Sprocket) (If used)

$

$

Not available

1

Toro AU251022A1

BOOM - 5 Ft (Uses 1 Idler Sprocket) (If used)

$

$

Not available

1

Toro AU251023A1

BOOM - 6 Ft (Uses 2 Idler Sprockets) (If used)

$

$

Not available

1

Toro AU251024A1

BOOM - 7 Ft (Uses 2 Idler Sprockets) (If used)

$

$

Not available

2

Toro AU276-24812

SCREW - Self-Tapping, 5/16 ST x 3/4

$0.99

$

Usually ships in 3-6 days

0

3

Toro AU492-11031

WASHER-Lock, 5/16 inch

$0.99

$

Usually ships in 3-6 days

0

4

Toro AU179205A1

PAD - Wear

$

$

Not available

5

Toro AU426-1240

BOLT

$4.49

$

Usually ships in 3-6 days

0

6

Toro AUH426817

WASHER-Flat

$13.99

$

Usually ships in 3-6 days

0

7

Toro AU231-51412

NUT-HEX FLANGE

$9.49

$

Usually ships in 3-6 days

0

8

Toro AUH433947

PLATE - Idler Sprocket

$

$

Currently unavailable

9

Toro AUH433896

RETAINER

$

$

Currently unavailable

10

Toro AU426-884

BOLT - 1/2 x 5-1/4

$

$

Not available

11

Toro AU426-892

BOLT - 1/2 x 5-3/4

$

$

Not available

12

Toro AU230-4218

NUT-LOCK, HEX

$3.49

$

Usually ships in 3-6 days

0

13

Toro AU199338A1

SPROCKET - Idler, 311 Chain

$

$

Currently unavailable

13

Toro AU199345A1

SPROCKET - Idler, 408 Chain

$

$

Currently unavailable

14

Toro AUH433867

WASHER - Lock, 5/16

$

$

Currently unavailable

15

Toro AU426-1640

BOLT

$20.99

$

Usually ships in 3-6 days

0

16

Toro AUH426833

WASHER

$9.99

$

Usually ships in 3-6 days

0

17

Toro AU232-41116

NUT-HEX

$5.99

$

Usually ships in 3-6 days

0

18

Toro AU251337A1

SHIM

$

$

Currently unavailable

19

Toro AU426-1640

BOLT

$20.99

$

Usually ships in 3-6 days

0

20

Toro AUH426833

WASHER

$9.99

$

Usually ships in 3-6 days

0

21

Toro AU232-41116

NUT-HEX

$5.99

$

Usually ships in 3-6 days

0
