RT 1200 - Toro Riding Trencher Traction Unit (2010) ENGINE COOLING ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

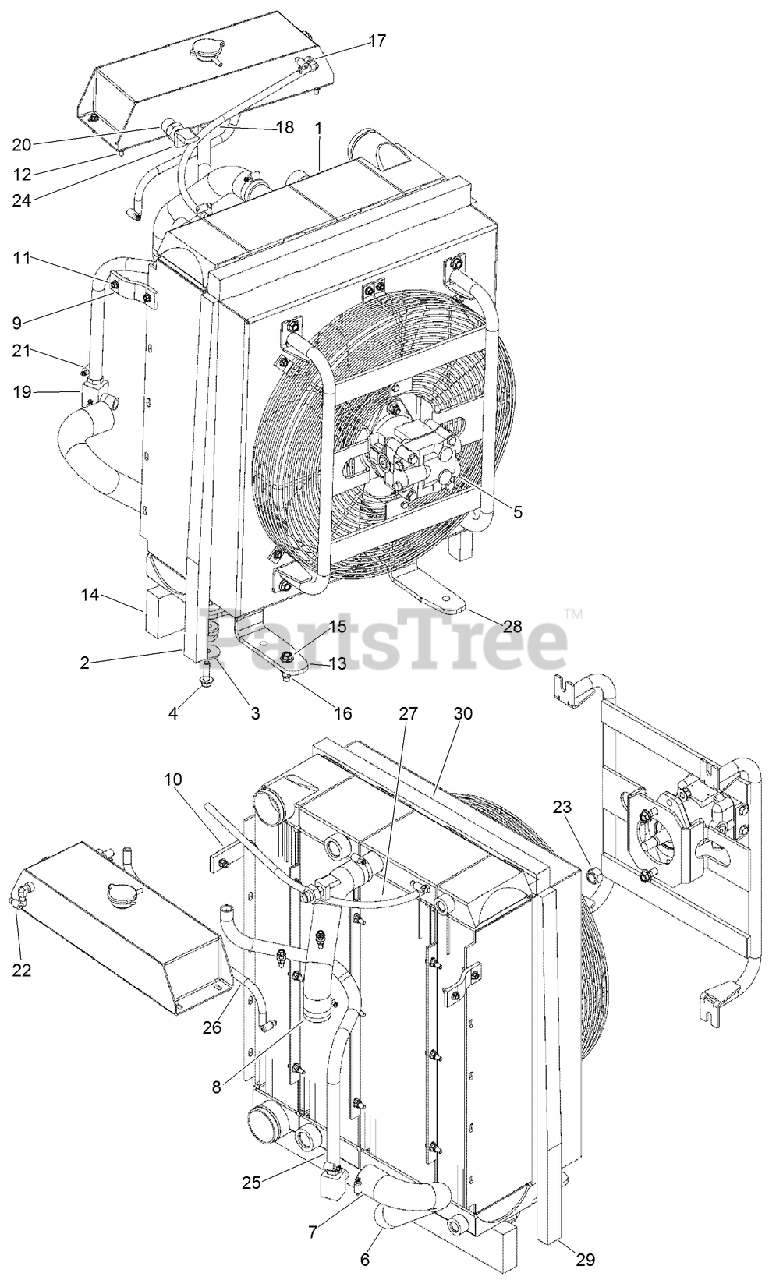

ENGINE COOLING ASSEMBLY Parts Diagram

  • Title

Toro AU118622

ENGINE COOLING GROUP

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU118976

ASSEMBLY - Engine Cooling Package

$

$

Currently unavailable

2

Toro AUL13142

ISOLATOR-MOUNT, RUBBER

$

$

Currently unavailable

3

Toro AU496-81018

WASHER-FLAT

$3.99

$

Usually ships in 3-6 days

0

4

Toro AU100830

SCREW

$3.49

$

In Stock, Qty 7

0

5

Toro AU118007

HYD MOTOR ASM

$

$

Currently unavailable

6

Toro AU119136

HOSE - Radiator, Lower

$

$

Currently unavailable

7

Toro AU214-1432

CLAMP-Hose Type F #32

$1.99

$

Usually ships in 3-6 days

0

8

Toro AU119135

HOSE - Radiator, Upper

$

$

Currently unavailable

9

Toro AUH433231

STRAP - Radiator Mounting

$

$

Currently unavailable

10

Toro AUH433231

STRAP - Radiator Mounting

$

$

Currently unavailable

11

Toro AU100398

SCREW, METRIC FLANGE FULL - M8 x 25

$2.49

$

Usually ships in 3-6 days

0

12

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

13

Toro AU118674

PLATE - Electrical Mount

$

$

Currently unavailable

14

Toro AU117160

FOAM - Insulation

$

$

Currently unavailable

15

Toro AU100348

SCREW-HHF

$4.99

$

In Stock, Qty 7

0

16

Toro AU100528

NUT-HHF, LOCK

$3.49

$

In Stock, Qty 15

0

17

Toro AU217-293

ELBOW - 90 Hose Stem, 3/8 ID x 174 NPTF

$16.99

$

Usually ships in 3-6 days

0

18

Toro AU217-155

STEM - Str Bead Hose 3/4 ID x 3/4 NPTF

$12.99

$

Usually ships in 3-6 days

0

19

Toro AU221-1415

ELBOW-STREET, 90 DEG

$

$

Not available

20

Toro AU65-CI-1725

BUSHING - Reducer, Internal/External, NPT

$

$

Currently unavailable

21

Toro AU214-1420

CLAMP - Hose, Type F #20

$2.99

$

Usually ships in 3-6 days

0

22

Toro AU214-1408

CLAMP-HOSE

$1.49

$

Usually ships in 3-6 days

0

23

Toro AU05-SLN3/4NF

NUT - Lock, Stover

$

$

Currently unavailable

24

Toro AU120127

SENSOR-LEVEL, COOLANT

$

$

Currently unavailable

25

Toro AU120152

HOSE - Silicon

$

$

Currently unavailable

26

Toro AU120153

HOSE - Fuel

$

$

Currently unavailable

27

Toro AU120154

HOSE - Fuel

$

$

Currently unavailable

28

Toro AU121682

PLATE - Electrical Mount

$

$

Currently unavailable

29

Toro AU122085

FOAM - Baffle

$

$

Currently unavailable

30

Toro AU122086

FOAM - Baffle

$

$

Currently unavailable
