RT 1200 - Toro Riding Trencher Traction Unit (2010) HYDRAULIC PUMPS ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

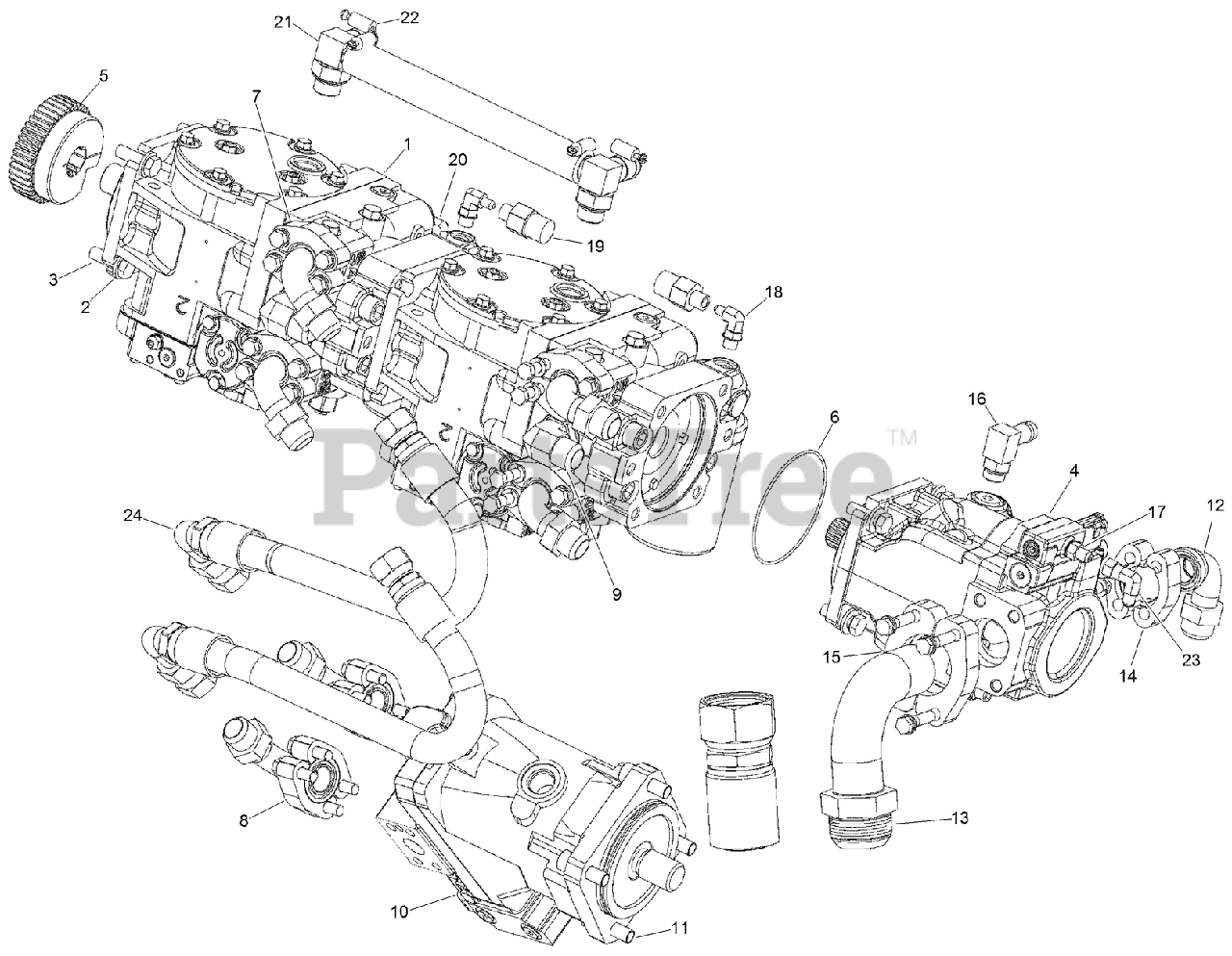

HYDRAULIC PUMPS ASSEMBLY Parts Diagram

  • Title

Toro AU118201

HYDRAULICS GROUP

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU115782

TANDEM PUMP ASM

$

$

Currently unavailable

2

Toro AU496-21053

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

3

Toro AU426-824

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

4

Toro AU115760

HYD PUMP ASM
(Superseded to 127-1812)

$

$

Not available

5

Toro AU358988A1

HUB-COUPLER

$

$

Currently unavailable

6

Toro AU70-9004104-1580

O-RING

$

$

Not available

7

Toro AUH439280

FITTING-ELBOW

$78.99

$

Usually ships in 3-6 days

0

8

Toro AU114285A1

HYD FLANGE KIT

$78.99

$

Usually ships in 3-6 days

0

9

Toro AU218-5110

ELBOW-90 DEG

$77.99

$

Usually ships in 3-6 days

0

10

Toro AU385343A2

HYD MOTOR ASM

$

$

Not available

11

Toro AU864-14040

SCREW-HSH

$

$

Currently unavailable

12

Toro AU91-500024-16S

ADAPTER-FLANGE, SPLIT

$

$

Currently unavailable

13

Toro AU91-500024-32S

ADAPTER-FLANGE, SPLIT

$

$

Currently unavailable

14

Toro AU91-FF593-16

FLANGE KIT

$

$

Currently unavailable

15

Toro AU91-FF593-32

KIT, SPLIT FLANGE -16 Code 62

$

$

Currently unavailable

16

Toro AU217-361

STEM - 90 Bead Hose 3/4 ID x 7.8 - 14
(Superseded to 87-8170)

$47.99

$

Usually ships in 3-6 days

0

17

Toro AU218-5352

ADAPTER-STRAIGHT

$5.99

$

Usually ships in 3-6 days

0

18

Toro AU218-5283

ELBOW - 90 Degree, 9/16-18 flare x 1/4 inch PT

$5.99

$

Usually ships in 3-6 days

0

19

Toro AU443897A1

SWITCH-PRESSURE

$160.99

$

Usually ships in 3-6 days

0

20

Toro AU218-5105

ELBOW-90 DEG (ADJUSTABLE 37 DEG)

$3.99

$

Usually ships in 3-6 days

0

21

Toro AU375462A1

CONNECTOR

$124.99

$

Usually ships in 3-6 days

0

22

Toro AU214-3228

CLAMP - Hose HD Worm Gear 1.75 in w/Lin

$

$

Currently unavailable

23

Toro AU218-980

ELBOW-SWIVEL, 90 DEG

$11.99

$

Usually ships in 3-6 days

0

24

Toro AU120448

KIT, Hydraulic Hoses

$

$

Currently unavailable
