RT 1200 - Toro Riding Trencher Traction Unit (2010) OPERATORS STATION ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

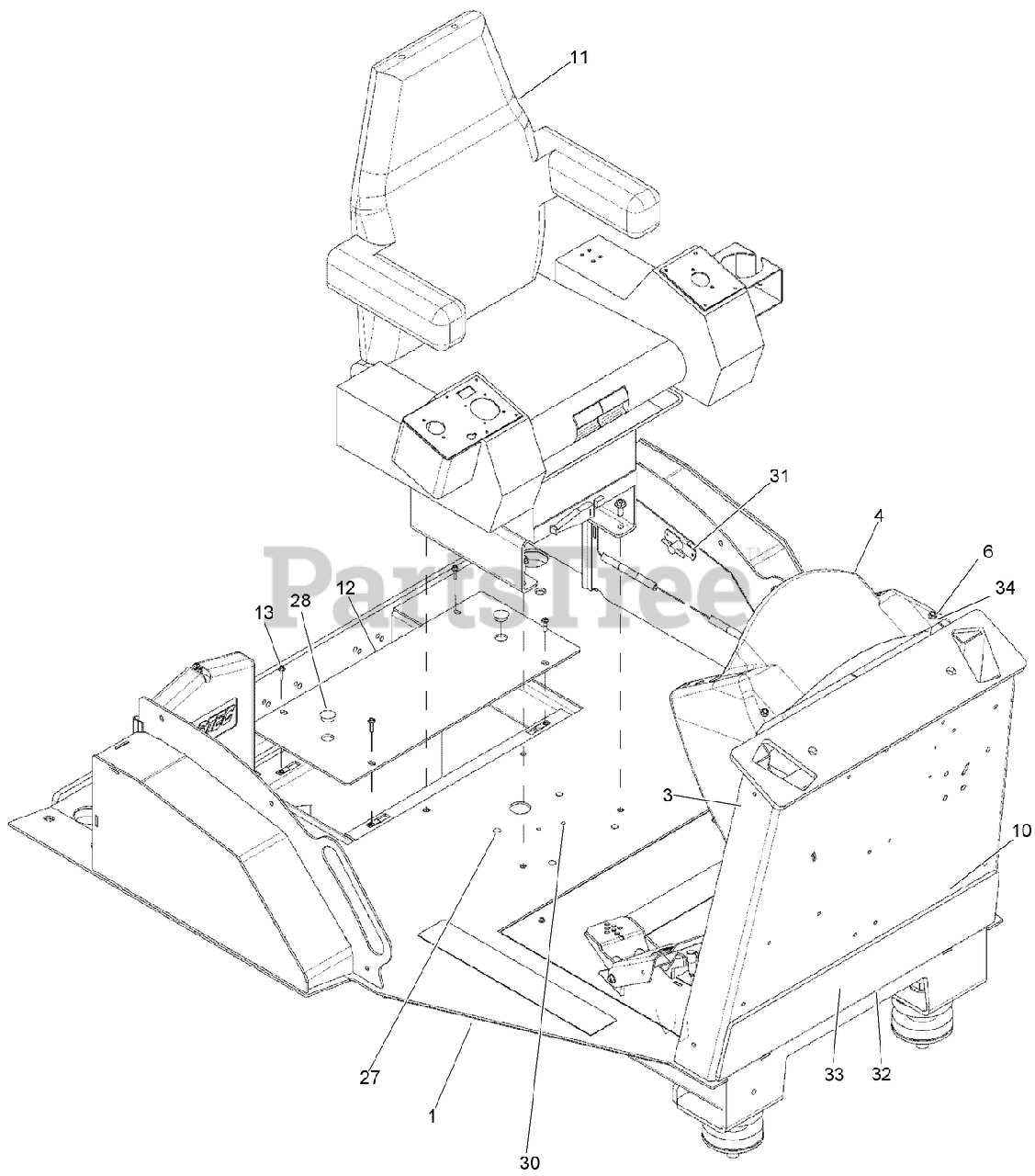

OPERATORS STATION ASSEMBLY Parts Diagram

  • Title

Toro AU116867

ASSEMBLY - Operator Station

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU116863

WELDMENT - Operators Station

$

$

Currently unavailable

3

Toro AU100862

NUT-U

$4.49

$

Usually ships in 3-6 days

0

4

Toro AU121459

PANEL-Dash

$482.99

$

Usually ships in 3-6 days

0

6

Toro AU100398

SCREW, METRIC FLANGE FULL - M8 x 25

$2.49

$

Usually ships in 3-6 days

0

10

Toro AU100869

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

11

Toro AU118589

SEAT ASM

$

$

Currently unavailable

12

Toro AU113908

PLATE - Battery Cover

$

$

Currently unavailable

13

Toro AU100870

SCREW, METRIC FLANGE w/BODY-M6 x 25

$1.49

$

Usually ships in 3-6 days

0

27

Toro AU353-404

PLUG - Dome 0.500 in Hole Black Nylon

$

$

Currently unavailable

28

Toro AU353-411

PLUG-DOME

$3.49

$

Usually ships in 3-6 days

0

30

Toro AU353-400

PLUG-DOME

$

$

Currently unavailable

31

Toro AUL102515

LATCH

$142.99

$

Usually ships in 3-6 days

0

32

Toro AU120815

PLATE - Wire Harness Cover

$

$

Currently unavailable

33

Toro AU100525

NUT, METRIC FLANGE PREVAILING - M6 Zinc

$1.49

$

Usually ships in 3-6 days

0

34

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0
