RT 1200 - Toro Riding Trencher Traction Unit (2010) REEL CARRIER ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

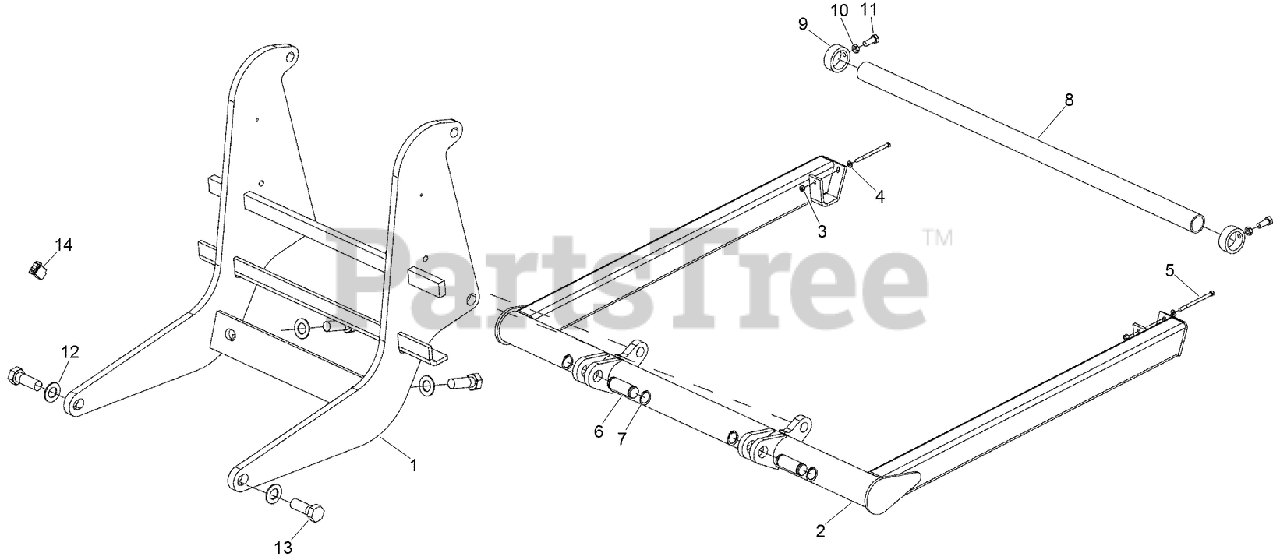

REEL CARRIER ASSEMBLY Parts Diagram

  • Title

Toro AU118760

REEL CARRIER ASM

Note: Not illustrated

$

$

Not available

1

Toro AU118758

FRAME WELDMENT - Reel Carrier Mtg

$

$

Currently unavailable

2

Toro AUH674972

WELDMENT - Arm, Reel Carrier

$

$

Currently unavailable

3

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

4

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

5

Toro AU426-684

BOLT-Hex Hd, 3/8 NC x 5-1/4 inch GR5

$12.99

$

Usually ships in 3-6 days

0

6

Toro AUH434262

PIN

$

$

Currently unavailable

7

Toro AUD25279

RING

$20.99

$

Usually ships in 3-6 days

0

8

Toro AUH434806

SPINDLE - Reel Carrier
(Superseded to AUH434806-03)

$

$

Not available

9

Toro AUH434807

COLLAR-REEL

$

$

Currently unavailable

10

Toro AU425-1410

NUT-HEX, JAM

$3.99

$

Usually ships in 3-6 days

0

11

Toro AU426-1024

BOLT-Hex Hd 5/8 x 1-1/2 GR5 ZND

$2.49

$

Usually ships in 3-6 days

0

12

Toro AUH426858

WASHER

$

$

Not available

13

Toro AU426-2056

BOLT

$

$

Not available

14

Toro AU113664

SWITCH-ROCKER, 2 POLE

$36.99

$

Usually ships in 3-6 days

0
